• Model NO.：FPEBM-24Da,24Db; FPEBM-32Da,32Db
• Origin：Shanghai, China
• HS Code：8460909000
• Production Capacity：30 Sets,Month

Basic Info.

Model NO. FPEBM-24Da/24Db; FPEBM-32Da/32Db Origin Shanghai, China HS Code 8460909000 Production Capacity 30 Sets/Month

Product Description

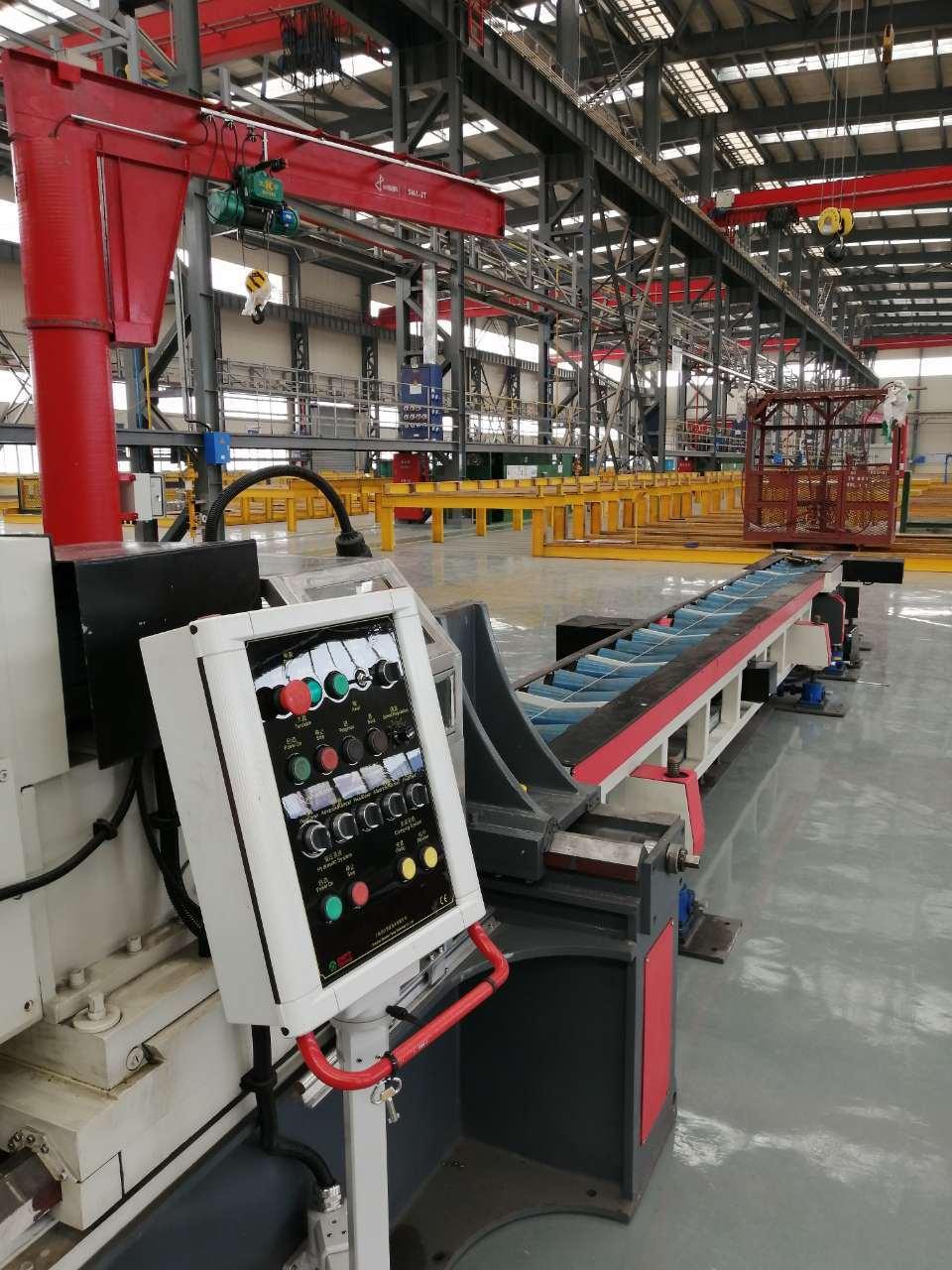

Pipe Beveling Machine; High Speed Pipe End Beveling Machine (Fixed-Type)
Model No.: FPEBM-24Da/24dB; FPEBM-32Da/32dB

Performance features
1. On-line Performance: Good (Designed as per the on-line equipment of the production line)
2. Bevel quality: Very good
3. Application: Used for machining the U or V shape bevels for numbers of pipes with heavy wall thickness
Technical parameters
4. Materials applicable: Carbon steel, alloy steel, stainless steel and cryogenic steel, ect.

5. Cutting direction: Radial automatic differential cutting feed or axial semi-automatic motor cutting feed; Radial automatic differential cutting feed or axial automatic motor cutting feed
6. Retracting direction: Radial automatic motor retracting or axial semi-automatic motor retracting; Radial automatic differential cutting feed or axial automatic motor cutting feed
7. Driven by: Motor

8. Clamping system: Work piece is clamped by (screw rod) hydraulic cylinder
9. Bracket system: Screw lifting adjustable
10. Widthwise displacement: : ± 100mm
11. Control system: Gear shift for main shaft, VF speed change for axial direction movement and manual control; Gear shift for main shaft, VF speed change for axial direction movement and PLC control
12. Mechanical aligning: At the end of beveling machine conveying system equipped with lifting device could be provided if necessary to adjust automatically the center elevation of the pipe, so as to bevel the pipes with different diameters.
13. Conveying system: Can be equip for roller conveying system if necessary.

Technical Description	Standard Type
Beveling Speed:	≤ 3Min /pipe bevel (DN200, Sch40)
Pipe diameter applicable:	DN100-600/DN200-800
Pipe  wallthickness    applicable:	6-180mm
Bevel shape:	u, x,   v  and Double v
Rev of the principal axis:	9 shifts(34-304rpm)
Axial displacement:	150mm (principal axis), 300mm (machine head)
Widthwise displacement:	± 100mm
Bevel angle of tool rest:	0° ~30°

our company is the most innovation ability provider of integrated solutions for piping fabrication, also is the unique provider of professional piping plant design software & management software system and piping equipments in China which included pipe spool fabrication line, cutting equipments, beveling equipments, fitting up equipments, handling equipments, welding equipments.
