• Model NO.：QTM 40-3A
• Machine Material：Q235r Steel
• Color：as Customer Request
• Vibration Type：Mould Vibration
• Electricity Power：7.5kw
• Vibration Frequency：Max 4000r,Min
• Shaping Cycle：40-45s
• Condition：New
• Guarantee：2 Years
• Pallets：No Need
• Transport Package：Plywood Box with Iron Angle
• Specification：235steel for machine frame
• Trademark：Chuangyun
• Origin：China
• HS Code：8474802000
• Production Capacity：50sets , Month

Dimension of host machine

1800X1400X1100mm

Total machine power

6.7KW

Moulding PERIOD

30-40S

Vibration force

35KN

Voltage

380/415/440V

Mixer model

JQ350

Production capacity

Size(LxWxH)

Pcs/Mould

Pcs/ Hr

Pcs/ 8 Hr

400X200X200

4

360-480

2880-3840

400X100X200

7

630-840

5040-6720

400X150X200

5

450-600

3600-4800

400X250X200

3

270-360

2160-2880

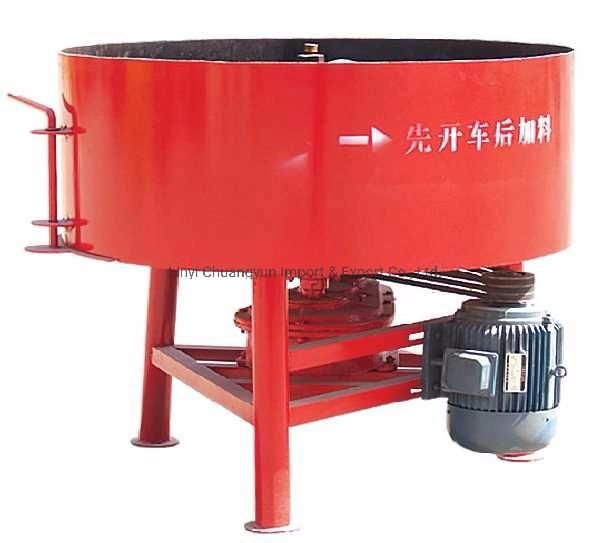

JQ350 Mixer

No

Item

Specification

01

Model

JD350

02

Charge volume(L)

0.35m³

03

Discharge volume(L)

0.56 m3

04

Capacity(m3/h)

≥4m3/h

05

Max diameter(pebbles/break stone)mm

40mm

06

Power

7.5KW

07

Machine diameter

1200mm

08

weight

0.42Ton

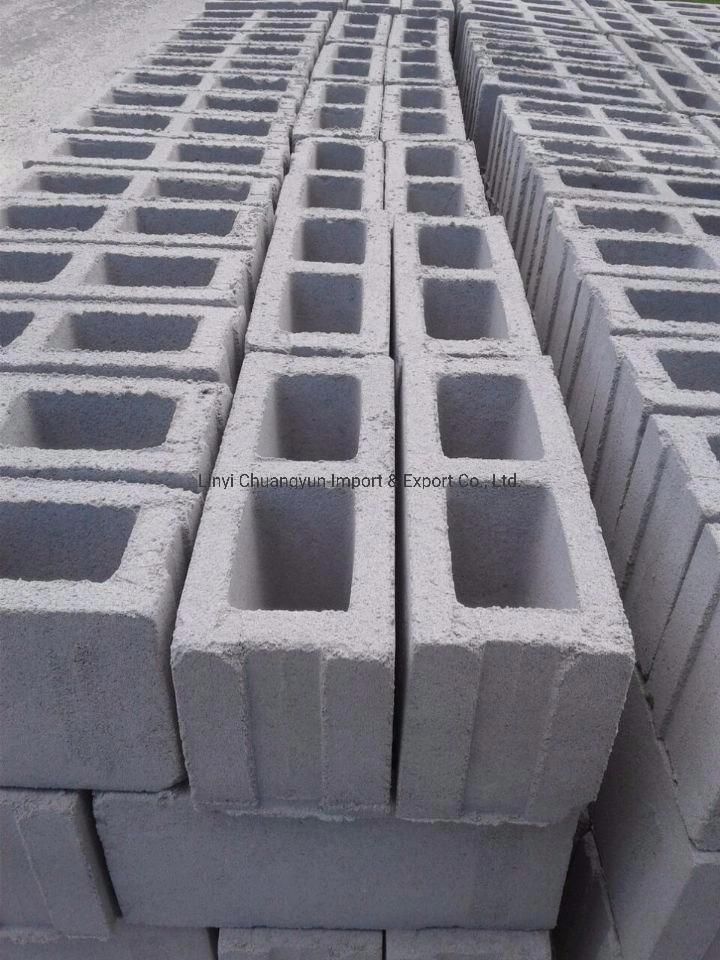

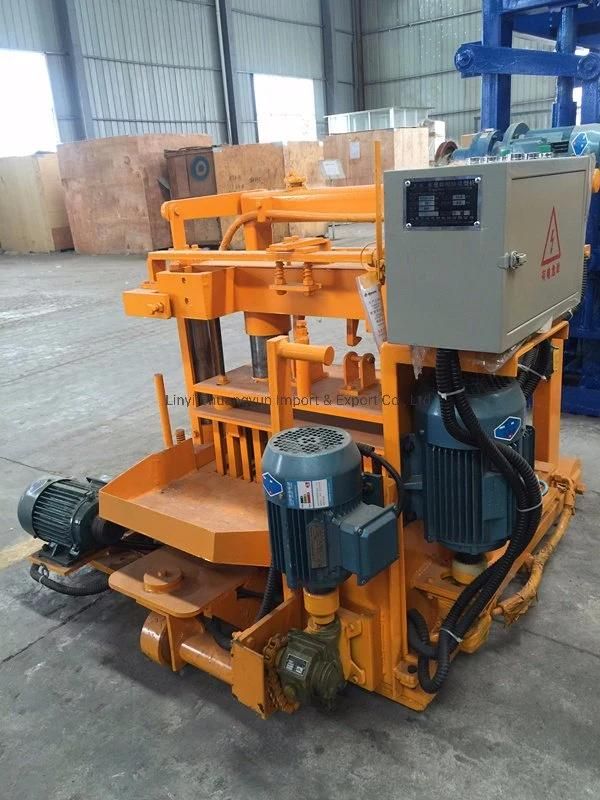

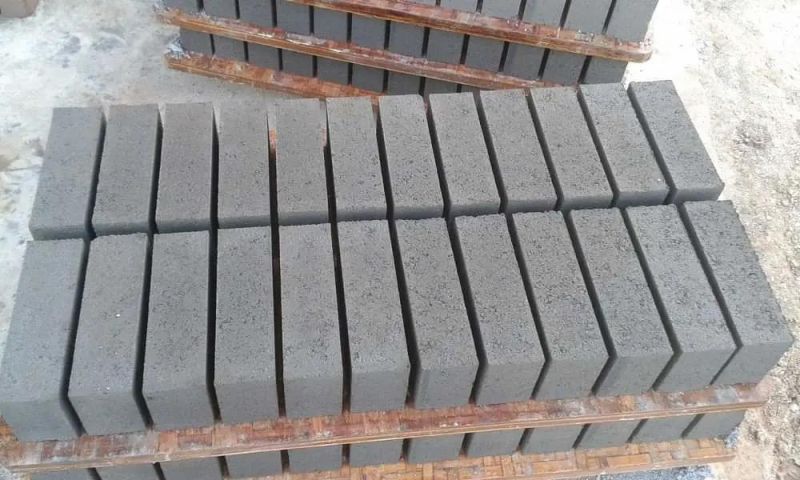

Machine and blocks












Our Service

   we have go big after sale service  team , they are all the experience technician , over 20 workers have the passport , they all have the oversea experience. So we not only have good service in the pre service , we also think highly of the after sale service.

Pre-sale
(1) Professional suggestions (raw material matching, machine selection, plan
The condition of building factory, feasibility analysis for brick machine production line)
(2) Device model choice (recommend the best machine according to the raw material, capacity
and the size of brick)
(3) 24 hours on-line service
(4) Welcome to visit our factory and production line any time, if you need, we can Make invitation
letter for you.
(5) Introduce the company file, product categories and production process.
Sale:
(1) Update the production scheduling in time
(2) Quality supervision
(3) Product acceptance
(4) Shipping on time
After-sale:
(1) The engineer will guide to carry out the plant at the clients side if needed.
(2) Set up, fix, and operate
(3) offer  training to the operator until they are satisfied at clients side.
(4) Skill support the whole using life.
(5) Recall clients regularly ,get feedback in time ,keep well communication with each other
