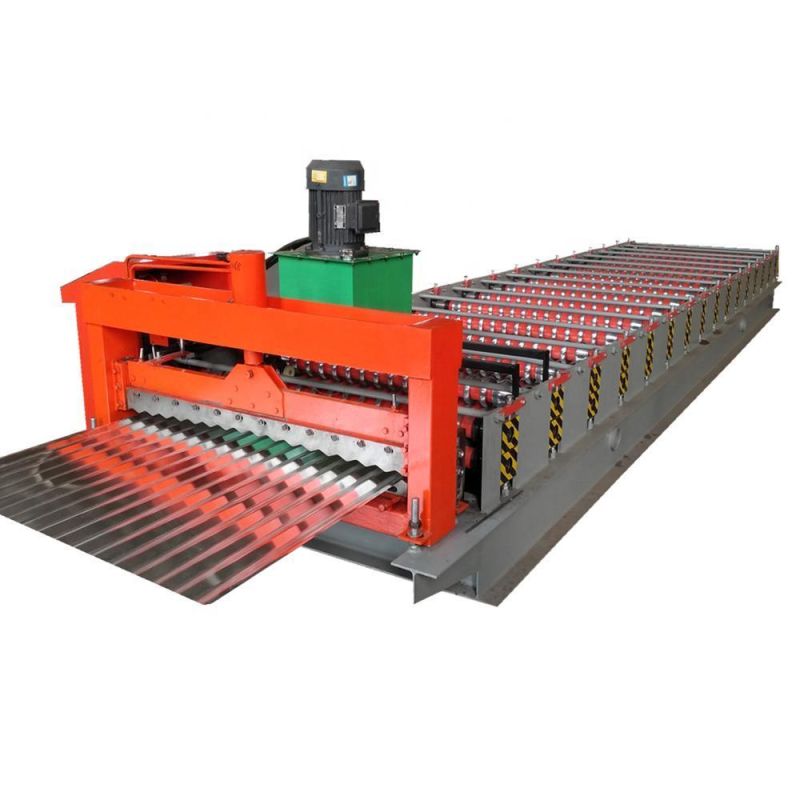

• Model NO.：Corrugated Tile Roof Machine
• Certification：CE, ISO
• Condition：New
• Customized：Customized
• Applicable Industries：Building Material Shops, Manufacturing Plant
• Type：Tile Forming Machine
• Use：Roof
• Transport Package：Nude, Wooden Frame
• Specification：7.5*1.6*1.2m
• Trademark：HUA YU XIN NUO, XINNUO
• Origin：Buotou Hebei, China
• Production Capacity：30 Set,Sets Per Month

If you are interested in the product, you can click on the picture and it will jump to the product page.

Product Description

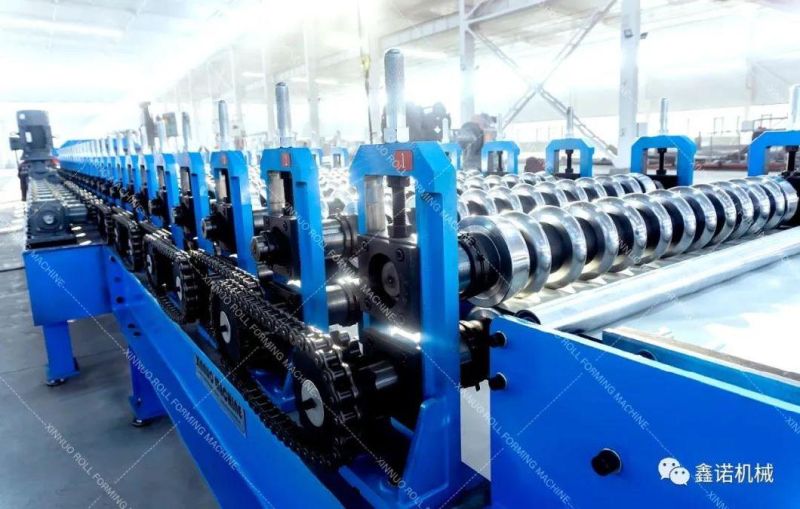

1. the advantage of     corrugated steel making machine

it has reasinable structure, beautiful appearance, with advantage of saving space, easy operate and especially welcomed by the costomer with limit area or site operation.



2. Main Parameter and specification of  corrugated steel making machine

We design each machine according to user requirement.

Below techinical parameters can be adjusted if needed.
specification

roll forming machine

1

Suitable to process

Color steel plate

2

Width of the plate

1000mm

3

Thickness of the plate

0.3-0.8mm

4

De-coiler

Manual one, can load 5 tons raw material

5

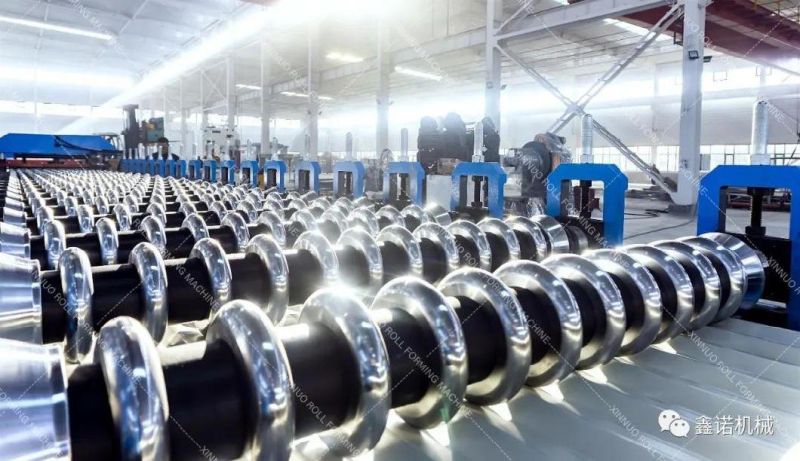

Rollers for forming

14 rows

6

Diameter of the roller

80mm

7

Rolling material

Carbon Steel 45#

8

Main motor power

4kw

9

Productivity

8-12m/min

10

Cutting method

Hydraulic mould cutting

11

Material of the cutting blade

Cr12

12

Hydraulic cutting power

3kw

13

Processing precision

Within 1.00mm

14

Control system

Delta PLC control

15

Side panel of machine

14mm

16

Main structure of the machine

300 H steel

17

Weight

About 4.6T

18

Dimensions

7.5*1.6*1.2m

19

Voltage

380V 50Hz 3phases(changeable as needs)

20

Certificate

CE/ISO



Equipment components:

Man-made uncoiler, Roll forming machine,

computer control  system, hydraulic control system, cutting part
Packaging & Shipping

Packaging Details:	Main machine is nude, the computer control box is packed with wooden frame.
	Main machine is nude in the container, the computer control box is packed with wooden packaging.
Delivery Detail:	20 days

Company Information
Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.
AQ

1:How to play order:Inquiry---confirm the profile drawings and price----confirm the PI---arrange the deposit or L/C---then OK.

2:How to visit our company:Fly to Beijing airport:By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you. Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.

3:When we exported the machines:We have beening making and exporting the machines since from the year of 1998.

4.What's the after- sale service:we sent technician to your country to fix the machine.The buyer should bear all the cost including: visa, round trip ticket and suitable accommodation, also buyer should pay the salary 80USD/day.

5.How about the warranty:12 months limits warranty.

If you want to contact us, you can make an inquiry.
