• Model NO.：double layer
• Raw Material：PPGI,PPGL,Gi,Aluminium
• Color：Client′s Request
• Weight：5.4 Tons
• Transport Package：Main Machine Nude Packing with Plastic Film
• Specification：7500*1700*1600Mm
• Trademark：kexinda
• Origin：China
• Production Capacity：500platform,Year

Basic Info.

Model NO. double layer Raw Material PPGI/PPGL/Gi/Aluminium Color Client′s Request Weight 5.4 Tons Transport Package Main Machine Nude Packing with Plastic Film Specification 7500*1700*1600Mm Trademark kexinda Origin China Production Capacity 500platform/Year

Product Description

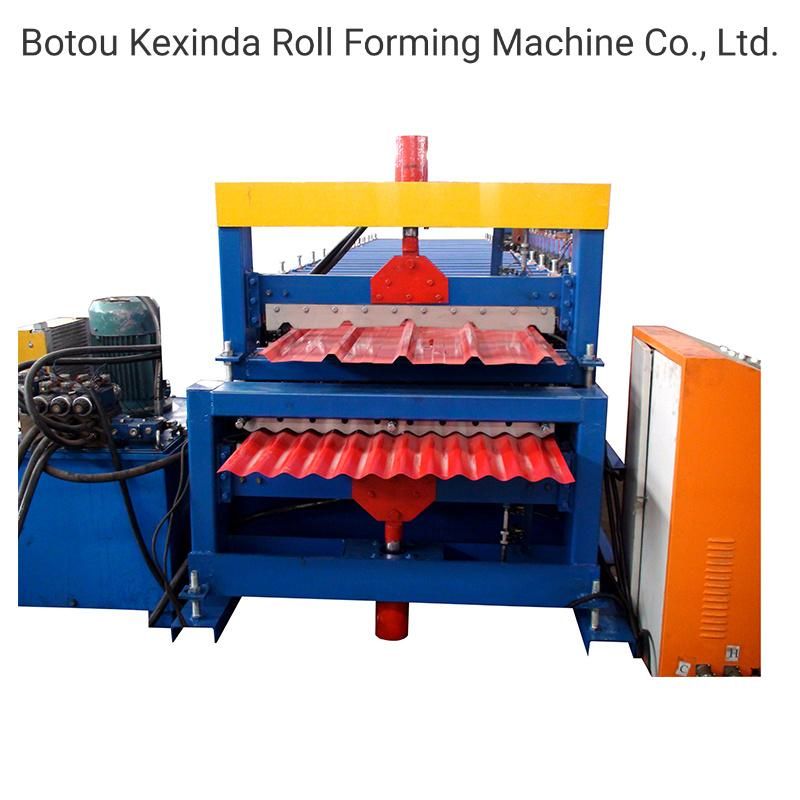

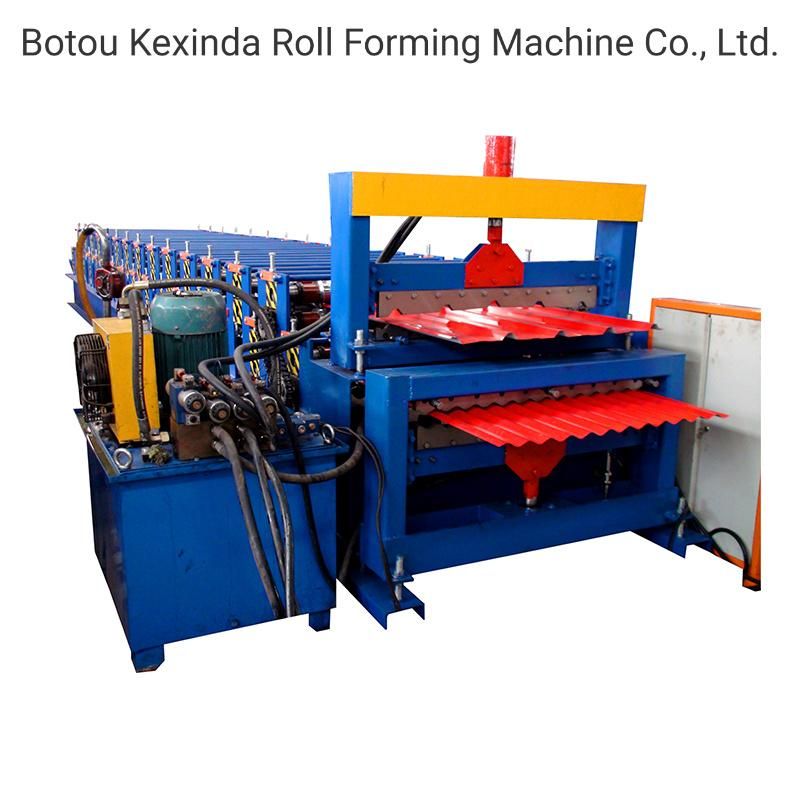

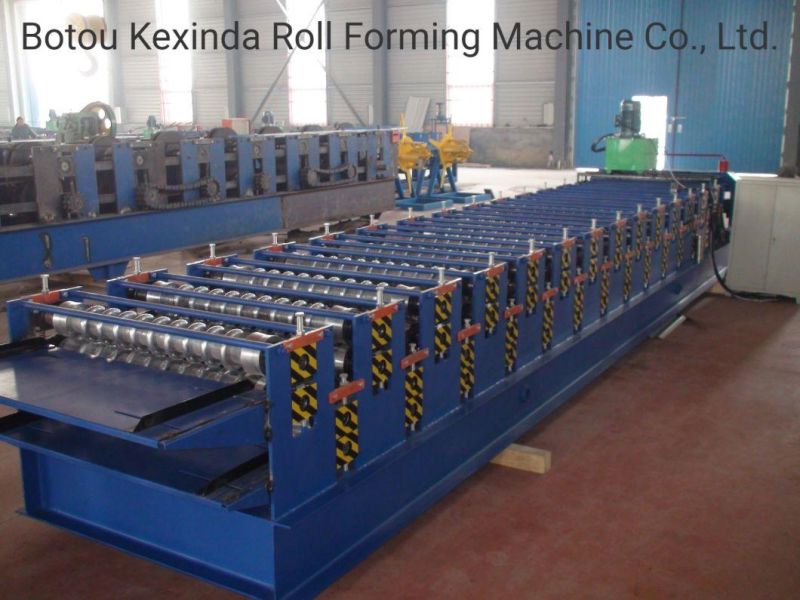

840+836 double layer roofing sheet making machine roll forming machines




1. Adopt synchronous pressure, 840 tile press, 14-row shaft forming 900 tile 12 row forming.

2. The fuselage is welded with 300mmH steel, and the middle plate is welded with 14mm steel.

3, shaft processing rear shaft size phi 75, die wheel with 45# steel processing molding, surface plating hard chromium (plating overtime).

4. The drive adopts 6-minute double sprocket wheel and chain drive (internal hanging type), 5#3kw planetary cycloidal reducer, with smooth movement and no noise.

5. Cast steel pull plate is used to connect the middle plate to ensure that the machine does not change shape when pressing the thick plate.

6. The transmission bearing adopts high-quality 210 high-speed double-sealed bearing, which is maintenance-free to extend the machine's operating life.

7, shear splined shear hydraulic system USES the df -10 gear pump, motor power 4kw, noiseless smooth operation, long service life.

8. The computer control system adopts high intelligent industrial electronic programming PLC and frequency converter control system, with simple operation, accurate accuracy, stable performance, length accuracy less than 2mm, plate speed 6-12 m/min.

9, suitable for 0.3mm-0.8mm color coated board or galvanized board.

Name	KeXinDa roll forming machine produce 840+900 Add Double

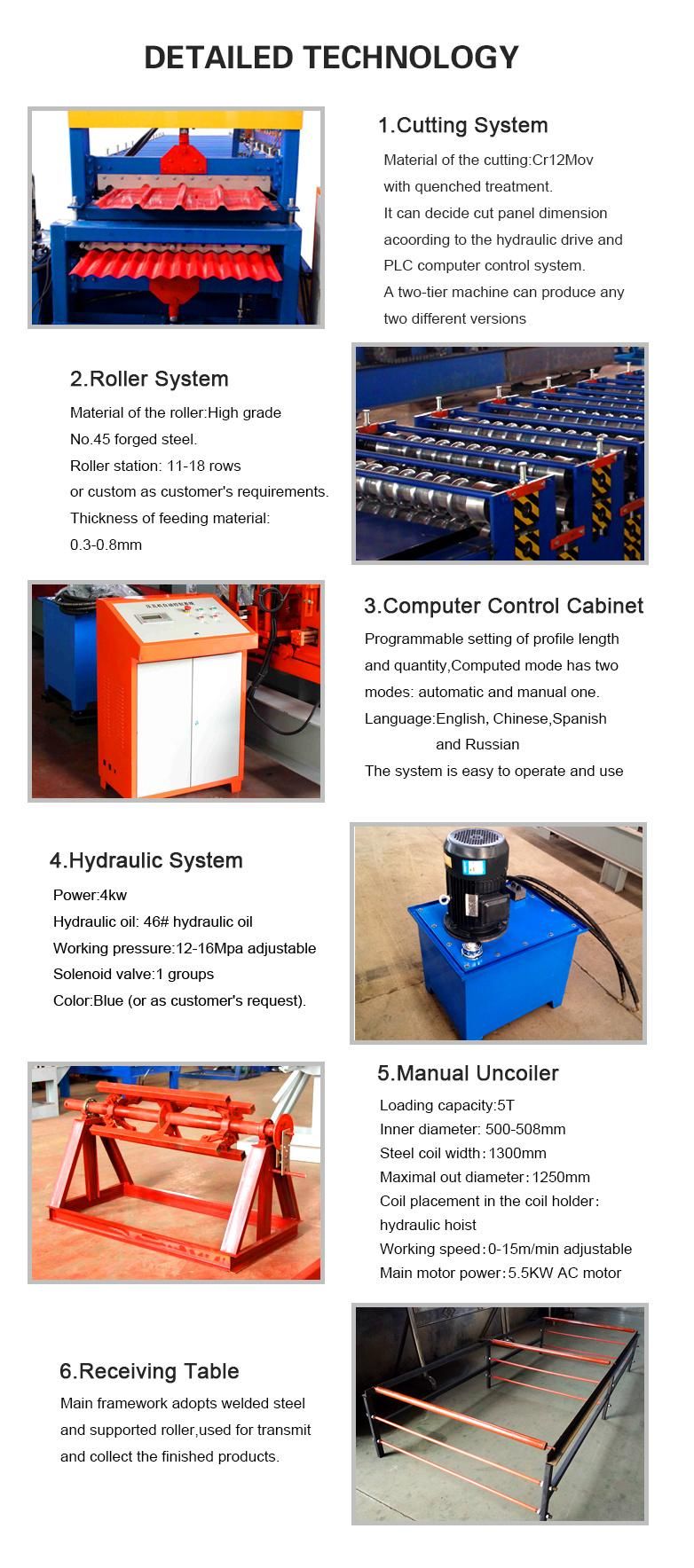

Configurations	manual uncoiler,guiding platform,9 shaft strip leveler,main machine of roll forming,hydraulic motor,pre-punching device,pre-cutting device,hydraulic station,PLC control,supporter table.
Control System	PLC inverter encoder touch screen
main frame	350mm H-Beam
Total Power	4KW
Power Supply	380V,3-phase,50HZ
Forming Speed	6-12m/min
Roll Station	16 stands
Decoiler capacity	5.4 tons
Roller Diameter	75mm
Effective Width	725-750mm
Feeding Thickness	0.3-0.8mm
Backboard Thickness	20mm
Cutter Standard	GCr12
Roller Standard	Gcr15#
Overall Size	About 750*170*160mm
Total Weight	About 5.4 tons
Custom	According to customer`s requirements

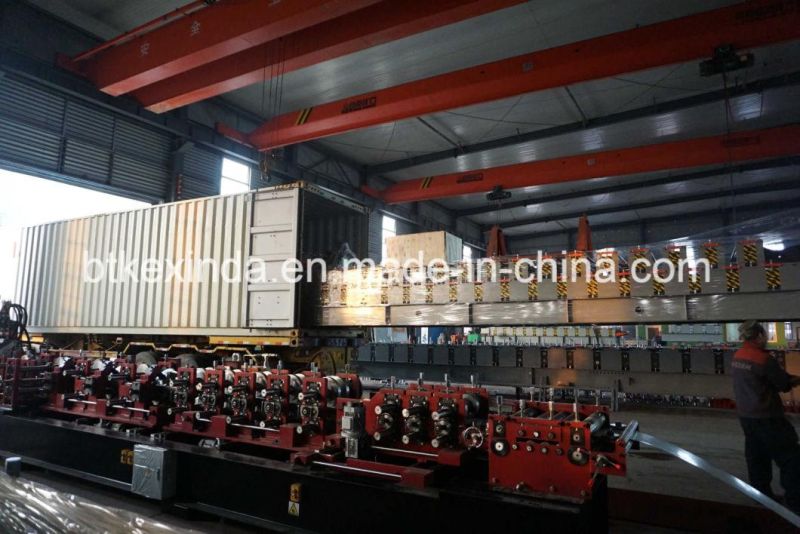

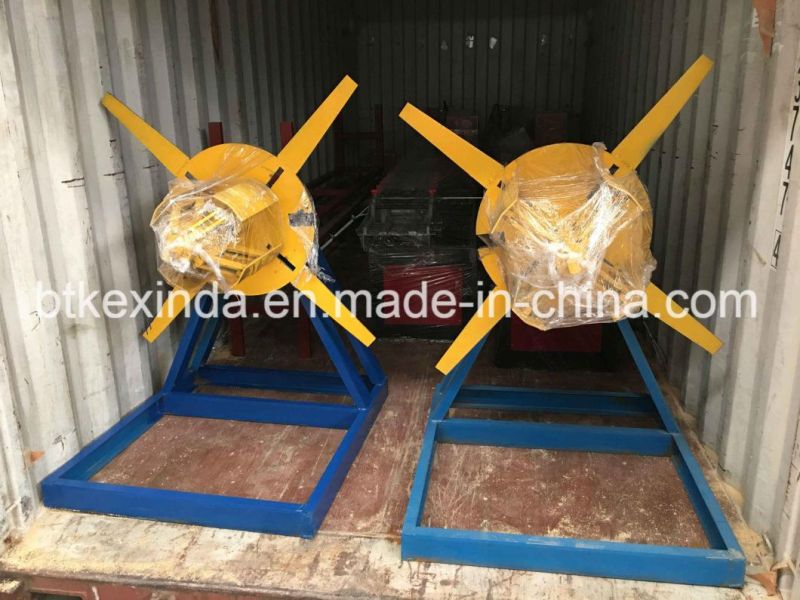

D.Shipping & Packing

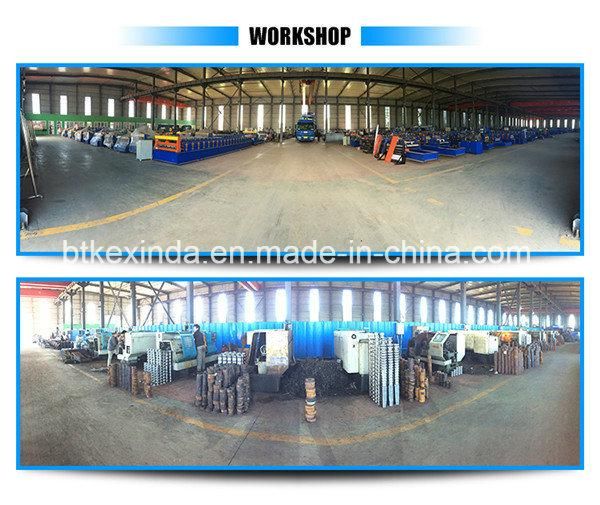

E. Company Information



Hebei Kexinda Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.

     Strong technical resources are the most stable guarantee for our products' quality. We adopt computer software for design drawing, production drawing and installation drawing for steel construction equipment. We adopt advanced computer digital inspection and produce high quality light steel structure equipment. Our technical is updating day by day !

     Our sales network covers all over China. We also sell products to the United States, Australia, the Netherlands, Germany, Ecuador, Bolivia, Thailand, Malaysia, Indonesia, India, the Philippines, Bangladesh, Nigeria, South Africa, Ethiopia, Syria, Libya, Ghana, Sudan, Saudi Arabia, the United Arab Emirates, Turkey, Azerbaijan and other markets.

     Our company has matured after-sale service network, we could provide efficient and satisfactory service for you throughout the period of our cooperation.If necessary, we can supply you with local technical support and send technicians to for installation and operation training.



F. Customer Visit And Exhibition





G. FAQ

1.How to play order :

Inquiry---confirm the profile drawings and price---confirm the PI---arrange the deposit or L/C---then OK

2.How to visit our company :

Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi(1 hour),then we can pick up you.

Fly to Shanghai Airport:By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5hours),then we can pick up you.

3.When we exported the machines :

We have beening making and exporting the machines since from the year of 1998.

4.*Guarantee* :

Lifetime maintenance guarantee.If some part of the machine is broken.We will supply the best original parts for the machine from our own factory. If the parts are damaged due to improper operation, buyer will pay for the freight.


5.*After-sales* :

To give you the best after-sales service, the first give you video call with professional technicians , the second we send technicians to your country to repair the machine,
The buyer shall bear all expenses, including visa, round-trip airfare and suitable accommodation, and pay the salary of usd 100 / day.

6.Contact us:

If you want to get more pictures or videos of the machines, feel free contact us.
We will give you the best experience!



                                                                   THANK FOR YOUT TIME !
                                                    WAITING FOR YOUR MESSAGE !
