• Model NO.：C89
• Automatic Grade：Automatic
• Motor Power：5.5kw
• Profile(Effective Width)：89mm
• Roller and Die Material：SKD11
• Feeding Thickness：0.8-1.2mm G300-G550 Gi,Gl Strip
• Dipth of Section：38mm
• Feeding Width：174mm
• Forming Speed：1300meter,Hour
• Forming Steps：8 Stations
• Lip of C Profile：9mm
• Tolerence of Forming：±0.5mm
• Transport Package：Nude
• Specification：2850*820*1480mm
• Trademark：XHH
• Origin：Xiamen, Fujian, China

ItemValueTypeC89 simplified version Light Gauge Steel Frame MachineProduction Capacity1300m/hourBrand NameXHHVoltage380V/50HZ 3Phase(as Customer's Request)Motor power5.5kwDimension(L*W*H)2850*820*1480mmWeight 1.8TProfile(effective width)89mmRoller and die materialSKD11Feeding thickness0.8-1.2mmDipth of section38mmFeeding width174mmForming speed1300meter/hourForming steps8 stationsLip of C profile9mmTolerence of forming±0.5mmDifferentianot have chamfering and foundation bolt hole
XHH LGS machine features:


Company profile:

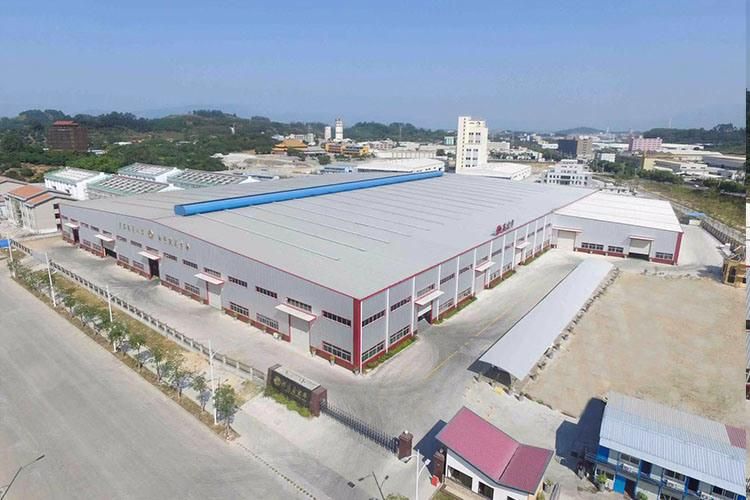

Xiamen XinHongHua Machinery Co., LTD., founded in 2000, specialized in the production of roll forming machines, is a collection of product research and development design, manufacture, installation, debugging, training and other comprehensive ability. Has many years engaged in research and development design and manufacturing experience of the team, and has very strong technical force. Our main products are: Al- Mg- Mn-Standing Seam Roofing Forming Machine, Portable Standing Seam Roofing Machine, Straight & Tapered Standing Seam Roofing Machine, Fully Automatic Curving Machine, Fully Automatic Adjustable C Purline forming machine, Automatic Interchange C, Z Purline Machine, Flattening Slitting Cutting Machines, Colored Steel Roofing Panel Forming Machine, Tile Roofing Machine, Floor Decking Machine and Highway Rail Forming Machines, etc. near hundred kinds roll forming machines. With " innovation and development, management for efficiency " of the entrepreneurial spirit, and with " let customers satisfied " of the service idea, we have owned a good reputation between many customers. Our products not only have been sell well in the domestic market, but also exported to the Southeast Asia, Middle East, Africa, North & South America more than twenty countries and regions.
