• Model NO.：many models
• Capacity：1-100t,H
• Finished Product Size：Can Be Below 5mm
• Usage：Stone Sand Making
• Transport Package：Loaded Into Container
• Specification：according to the model
• Trademark：Yuhui
• Origin：China
• HS Code：8474
• Production Capacity：30 Sets Per Month

Basic Info.

Model NO. many models Capacity 1-100t/H Finished Product Size Can Be Below 5mm Usage Stone Sand Making Transport Package Loaded Into Container Specification according to the model Trademark Yuhui Origin China HS Code 8474 Production Capacity 30 Sets Per Month

Product Description

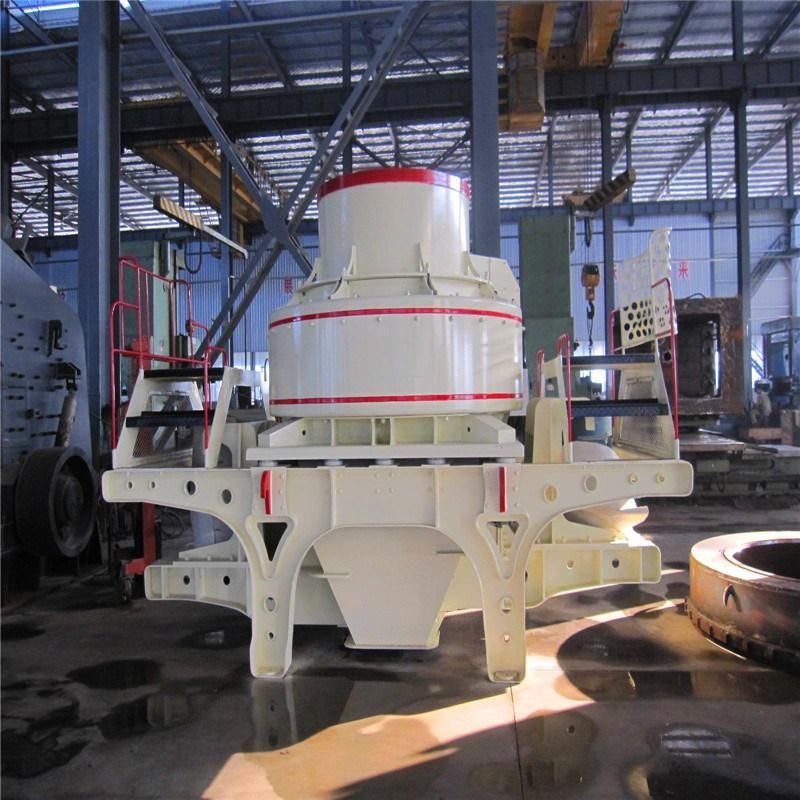

         Vsi series vertical sand maker, artificial sand making machine
                                                  for mining use


1. Introduction of sand maker / sand making machine:
Yuhui PCL vertical shaft impact crusher (namely, sand maker, sand making machine) is the specialized machine with international advanced level. Technology and modern processing make it a leading role in this industry. It is widely used for artificial sand, in metal and non-metal ores, cement, refractory material, bauxite, silicon carbide, glass material, building material. The finished sand has even particle size, high compressive strength, and     high-purity. The stones fall from the top of the machine, and then it is divided into two parts by material-dividing plate. One enters into high-speed rotating impellor through the center of material-dividing plate. The other falls down from outside of material-dividing plate. Under the action of the high speed centrifugal force, the stones crushed the others distributed around the impeller in the form of umbrella. After the stones impact each other, the addying motion is formed between the impeller and main case to bring about many times' mutual impacting, rubbing, and crushing till the granularity required is achieved

2. Features of sand maker, sand making machine:
Sand Making machine (sand maker) is a new-type one, which is used widely to substitute Cone Crusher, Ball Mill and Rod Mill-New and unique construction and stable operation
-Energy-saving, higher capacity, higher crushing ratio-Low noise, less dust pollution-Cubical product and great sand pile density-The stones can product the base of machine during the production
-Some wearing parts are made of super hard and wear resistant materials. They have the small bulk and light weight, so that they can be changed easily.


3. Main Technical Parameters:

Model	Impeller speed(r/min)	Max. Feeding size(mm)	Capacity (t/h)	Power (kw)	Weight (t) (including motor)	Overall dimension (mm)
600	2000-3000	30	12-30	2×30	5.6	2800×Φ1500×2030
750	1500-2500	35	25-55	2×45	7.3	3300×Φ1800×2440
900A	1200-2000	40	55-100	2×55	12.1	3750×Φ2120×2660
900B	1000-1450	40	65-130	2×75	13.6	3750×Φ2300×2090
1050	1000-1700	45	100-160	2×(90-110)	16.9	4480×Φ2450×2906
1250	850-1450	45	160-300	2×(132-180)	22	4563×Φ2650×3716
1350	800-1193	50	200-360	2×(180-220)	26	5340×Φ2940×3650

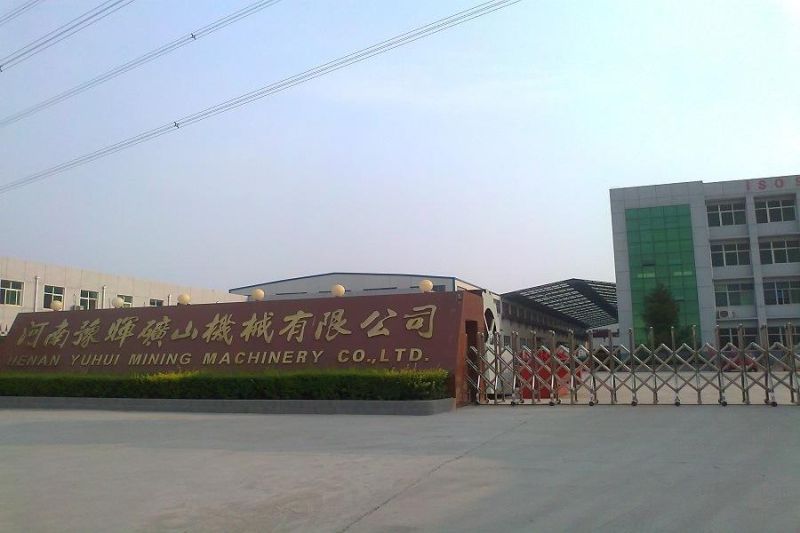

About our company:

Henan Yuhui Mining Machinery Co, Ltd. is located in Zhengzhou city in central plains, which adjoins to ancient millennium Shaolin Temple (Kung fu Origin) to the south, and Yellow River to the north. With Kailuo highway and Longhai railway, it owns convenient transportation and pleasant scenery.

Established in the 1970s, Henan Yuhui Mining Machinery Co.,Ltd. has developed into a famous manufacturer through 20 years struggling and progressing, specialized in producing mineral dressing equipment, compound fertilizer equipment, cement equipment,  as well as sand making equipment.

YuHui provides a connected sequence service with designing process flow, on-site civil engineering guidance, installing and debugging the equipment, training technical and operating people for clients. The company guarantees repair, replacement and refund and is warrantable to the complete machine for one year. It supplies accessories for a long period. Welcome inquiries and purchase from both new and old customers as well as worldwide friends.

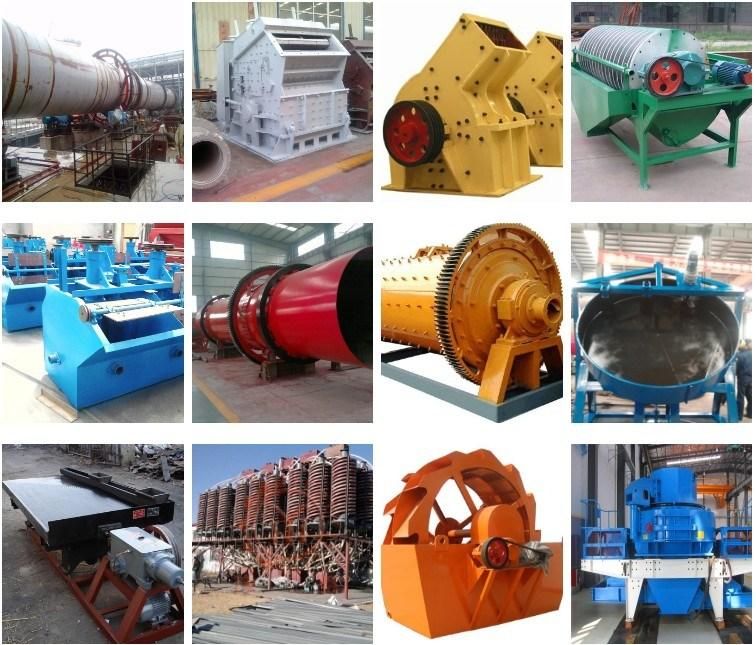

Our related products:

Our customers:

Each year we have the customers from world wide to our company for visit, like America, Malaysia, Indonesia, Philiphine, Sudan, Namibia, Zimbabwe, Zambia, Ethiopia, india, peru and so on.
Welcome to our company for visit.
