• Model NO.：13254
• Voltage：380V
• Numerical Control：CNC,Mnc
• Performance Classification：MID-Range CNC Machine Tools
• Application：Window
• Trademark：Zunbo
• Origin：China

Basic Info.

Model NO. 13254 Voltage 380V Numerical Control CNC/Mnc Performance Classification MID-Range CNC Machine Tools Application Window Trademark Zunbo Origin China

Product Description

Model: Four process cutting machine
Superior performance of the equipment: Stable structure: industrial model, heavy-duty all-steel structure welding, simmering bed, aging treatment, long-term use without deformation, ensuring accuracy. High-precision assembly: The bed is machined by gantry five-face milling, and the drilling and tapping are completed at one time. The holes are punched first. The superior performance of the equipment:

       Stable structure: industrial model, heavy-duty all-steel structure welding, simmering bed, aging treatment, long-term use without deformation, ensuring accuracy.
       High-precision assembly: The bed is machined by gantry five-face milling, and the punching and tapping is completed at one time. First, the hole position is punched, and then the rack and guide rails are installed, so as to ensure the uniform assembly accuracy.
       High-quality accessories: well-known brands of electrical components at home and abroad (one penalty ten for fake), stable performance, strong anti-interference ability, and low noise.
       Smooth operation: X and Y axis adopt H-type linear guide, double row and four row ball slider, large bearing capacity, stable operation, high precision, long life, Z axis adopts brake motor and imported ball screw control, high precision, The cut is accurate.

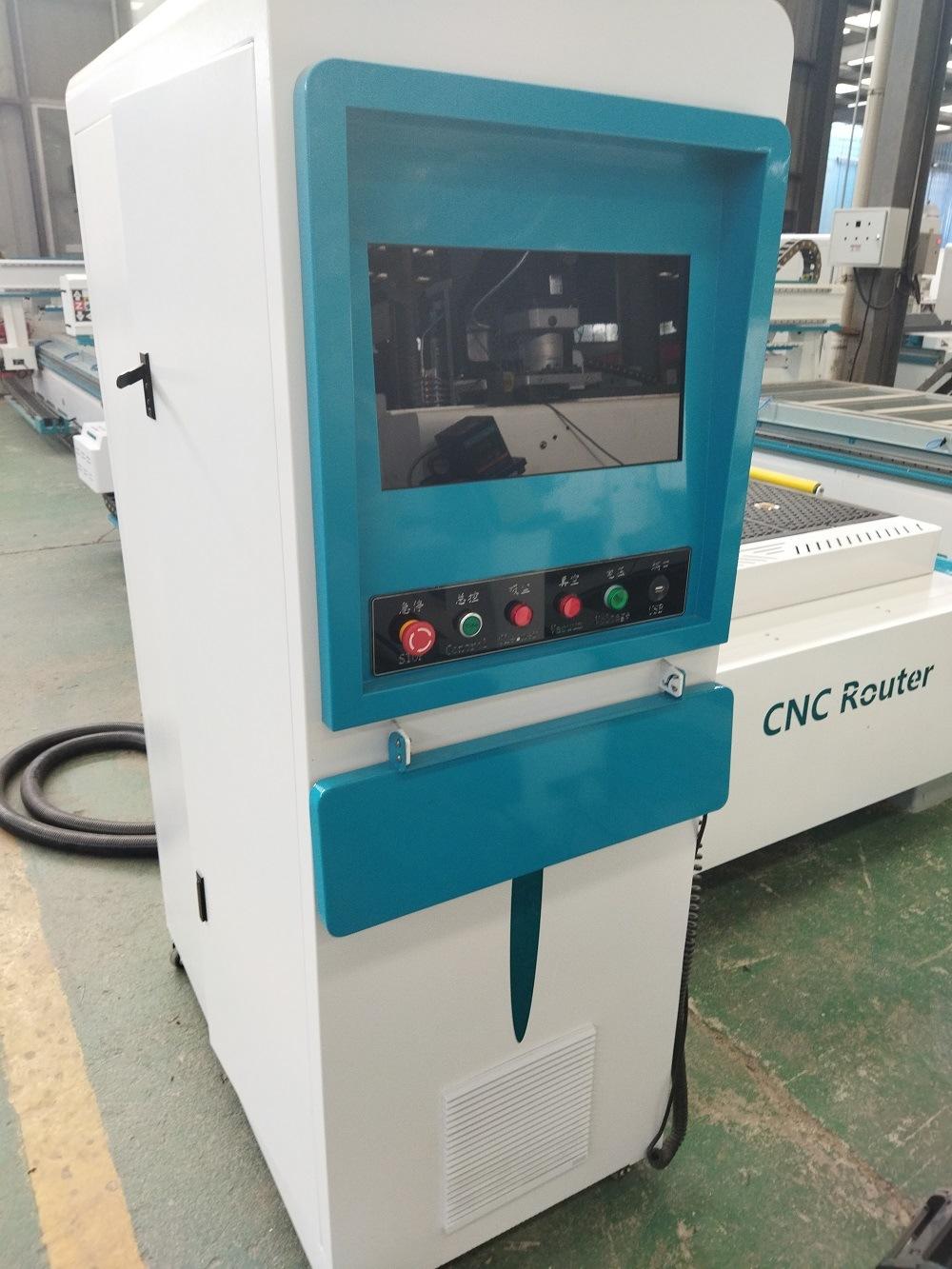

       High degree of intelligence: Taiwan Baoyuan control system, efficient and intelligent, low failure rate, and easy to learn.
       Fast speed and high efficiency: The domestic first-line brand spindle, automatic tool setting instrument, and second-speed switching, truly realize the uninterrupted process without manual intervention.
       Powerful function: It adopts a thickened vacuum adsorption table top and a six-zone design, which can strongly adsorb plates of different sizes and materials. It has strong versatility and reduces the waste rate of plates.
High precision: The advanced three-digit curve prediction algorithm is adopted to ensure the speed and accuracy of the curve and straight line, and it is well compatible with various design software (Yunxi, Haixun, Yimu, 1010), etc.
Four process cutting machine

1.

system:

Baoyuan MW2200

2.

bed frame:

Thick-walled square tube, aging treatment, five-axis metal machining center processing

3.

Spindle:

Domestic first-line brand spindle, optional

4.

Motor:

Leisai 1.5KW

5

Reducer:

Beto

6

Inverter:

Best

7

guide:

Japan Pinak 25 rail

8

transmission:

Taiwan Atlanta 1.5M highly ground helical gear

9.

mesa:

Vacuum adsorption table

10

Vacuum pump:

7.5KW water circulation vacuum pump

11

lubricating:

Timing lubrication system

12

bed frame:

Fully stuffy bed, aging treatment, five-face milling

13

Shopsuke

Automatic material pushing, secondary dust removal
