Cold Steel Building Material Profile C Z Purlin Roll Forming Machinery
Cangzhou Dixin Roll Forming Machine Co., Ltd.- Warranty:2 Years
- Certification:CE, GS
- Customized:Customized
- Condition:New
- Automatic Grade:Automatic
- Thickness:0.3-0.8
Base Info
- Model NO.:Customized
- Raw Material:Galvanized Sheet
- Roller Material:45# Steel Plated
- Motor Brand:Delta
- Cutting Blade Material:Cr 12 High Grade Steel
- Transport Package:Nude
- Specification:CE SGS ISO
- Trademark:DIXIN
- Origin:China
- HS Code:84552210
- Production Capacity:50 Sets,Month
Description
Basic Info.
Model NO. Customized Raw Material Galvanized Sheet Roller Material 45# Steel Plated Motor Brand Delta Cutting Blade Material Cr 12 High Grade Steel Transport Package Nude Specification CE SGS ISO Trademark DIXIN Origin China HS Code 84552210 Production Capacity 50 Sets/MonthProduct Description

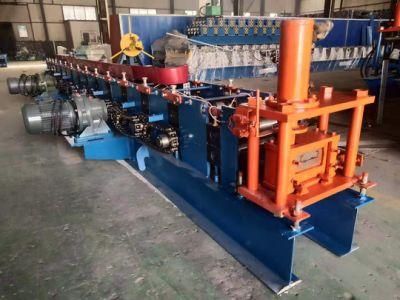

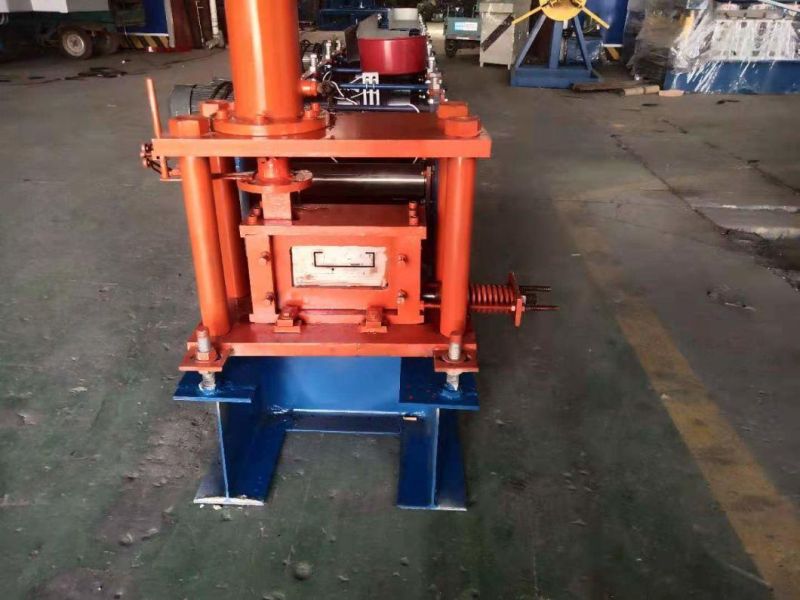

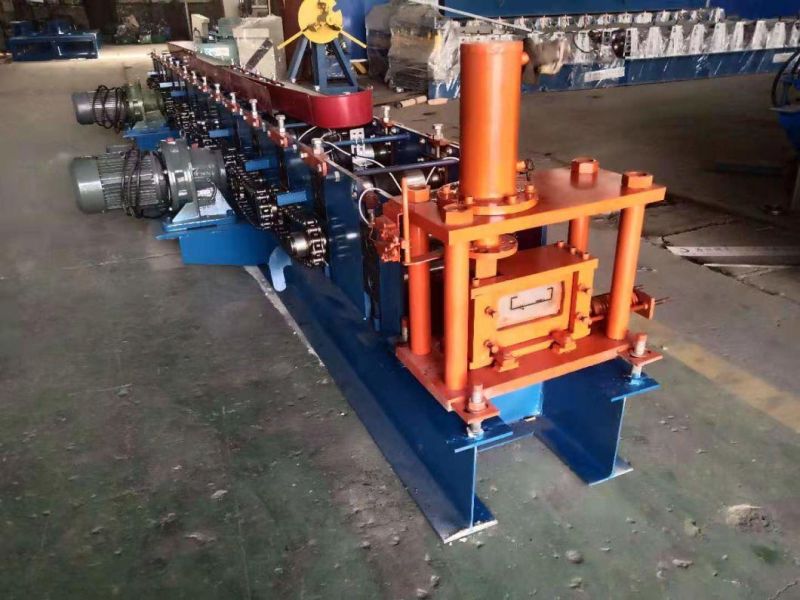

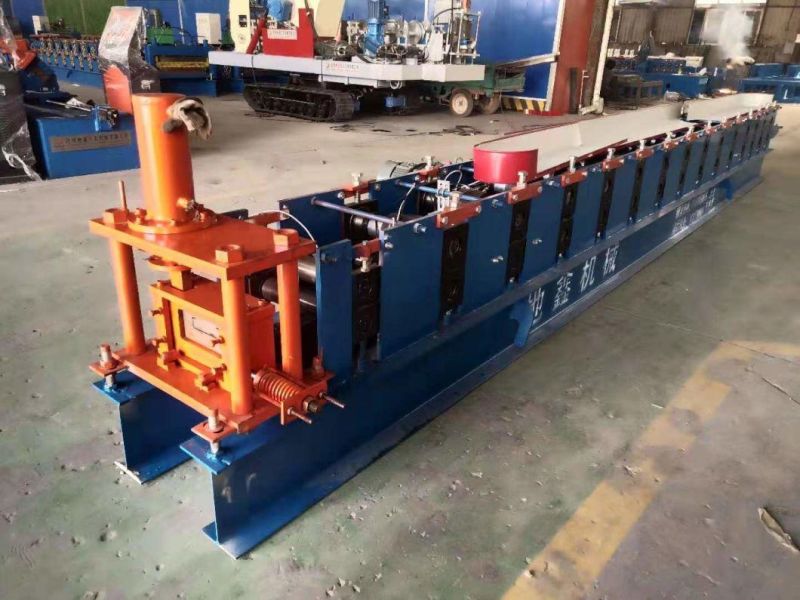

Cold steel building material profile c z purlin roll forming machinery
Technical parameter
(1) Processing material: aluzinc/galvanized steel/colored steel coil
(2) Material thickness: 0.3-0.8mm
(3) Main motor power: 4 kw
(4) Pump power: 4kw
(5) Shaft diameter: 75mm and solid forming shaft
(6) Forming steps: 15 steps.
(7) Roller material: 45# forged steel, with hard chrome plating
(8) Main frame: 350H steel
(9) Medium plate thickness: 18mm
(10) Control systerm: PLC computer control with inverter
(11) Power supply: 380V, 3 Phase, 60Hz or as your requirement
(12) 0veral sized:about 6800mm*1500mm*1500mm
Working flow

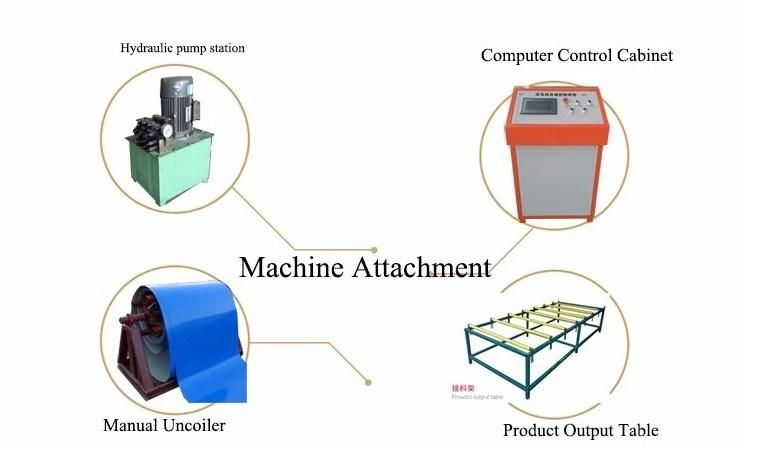

Components of production line
No. | Name | Unit | Qty |
1 | Main forming machine | set | 1 |
2 | PLC control system | set | 1 |
3 | Hydraulic pump station | set | 1 |
4 | Electric motor | set | 1 |
6 | Manual decoiler | set | 1 |

About our company
Our enterprise, Cangzhou Dixin Roll Forming Machine Co., Ltd, as the professional and leading manufacturer, can manufacture, design, installation and debug various roll forming machines and metal processing sheet equipments, which produce metal roof wall panel, glazed roof tile, CZ steel purlin, floor decking, roof ridge cap, sandwich panel, roof truss, shutter panel, shutter slat, door frame, guardrail, and metal sheet uncoiler, bending, slitting, cutting, flattening, punching, crimping.
Backed by reasonable design, precision machining and selected material, both our standard and customized machines a0re characterized by long life span, precise forming and easy operation. With our customers' trust, our machines have been sent to America, Australia, Russia, India, Sri Lanka, Nigeria, Pakistan, Uzbekistan, Mozambique, Angola, Turkey, Brazil, etc. We can satisfy the different needs of different markets.


Packaging
- 1.Nude,with waterproof cloth and stow-wood.Imported computer control system packed with waterproof cloth and card board.
- 2.This producing line is maintained free of charge for 18 months.When the machine is used in China,we will install and debug the machine for free;if it is used at abroad,we will send the professional technician to debug.Buyers should take all the fees for technicians travelling abroad.
- 3.All the parts in the roll forming machine is free to maintain all the life,if in 18 months our company bear the cost for exchanged the broken part like the new parts cost and express cost,if more than 18 month,we also free to maintain the broken parts but for send the new parts,the buyer need bear the express cost.
- 4.When ship the roll forming machine,We will also send one set CD and specification(Chinese and English) to you with the machine,they can teach you how to operater the machines.

Warm prompt
We can produce too many types roofing panels roll forming machine ,especially according to your request to produce.
you need provide panel drawing,feeding width,effective width,and materials thickness,
then we can send you more machine details.please feel free contact me.
