Half Round Rain Gutter Roll Forming Machine /High Quality Gutter Machine
HEBEI XINNUO ROLL FORMING MACHINE CO., LTD.- After-sales Service：Door to Door
- Warranty：One Year
- Tile Type：Colored Steel
- Certification：CE, ISO
- Condition：New
- Customized：Customized
Base Info
- Model NO.：gutter roll forming machine
- Usage：Roof, Wall, Gutter Panel
- Transmission Method：Electric
- Color：as You Like
- Trade or Factory：Factory
- Guarantee：1 Year
- Life Time：10 Years
- Service：Provide Engineer to Install The Machines
- Brand Name of PLC：as Customer Request
- Drawing：Designed as Customer Request
- Power：38V, 50Hz, 3 Phrase or as Your Like
- Decoiler Type：Manul, Electric, Hydraulic
- Control System：PLC
- Transport Package：Main Machine Nude Packing with Plastic Film
- Specification：8800*1500*1500
- Trademark：Xinnuo
- Origin：China
- HS Code：8455221000
- Production Capacity：30 Sets Per Month
Description
Overview
Product Description
gutter cold roll forming machine can bend the roll formed pipe, and let the drainpipe and the bending connect to be the whole.The product after roll forming has long working time than the tranditional ppc pipe, and not aging. It can make the project more integrate, and help to enhance the image of the all project.

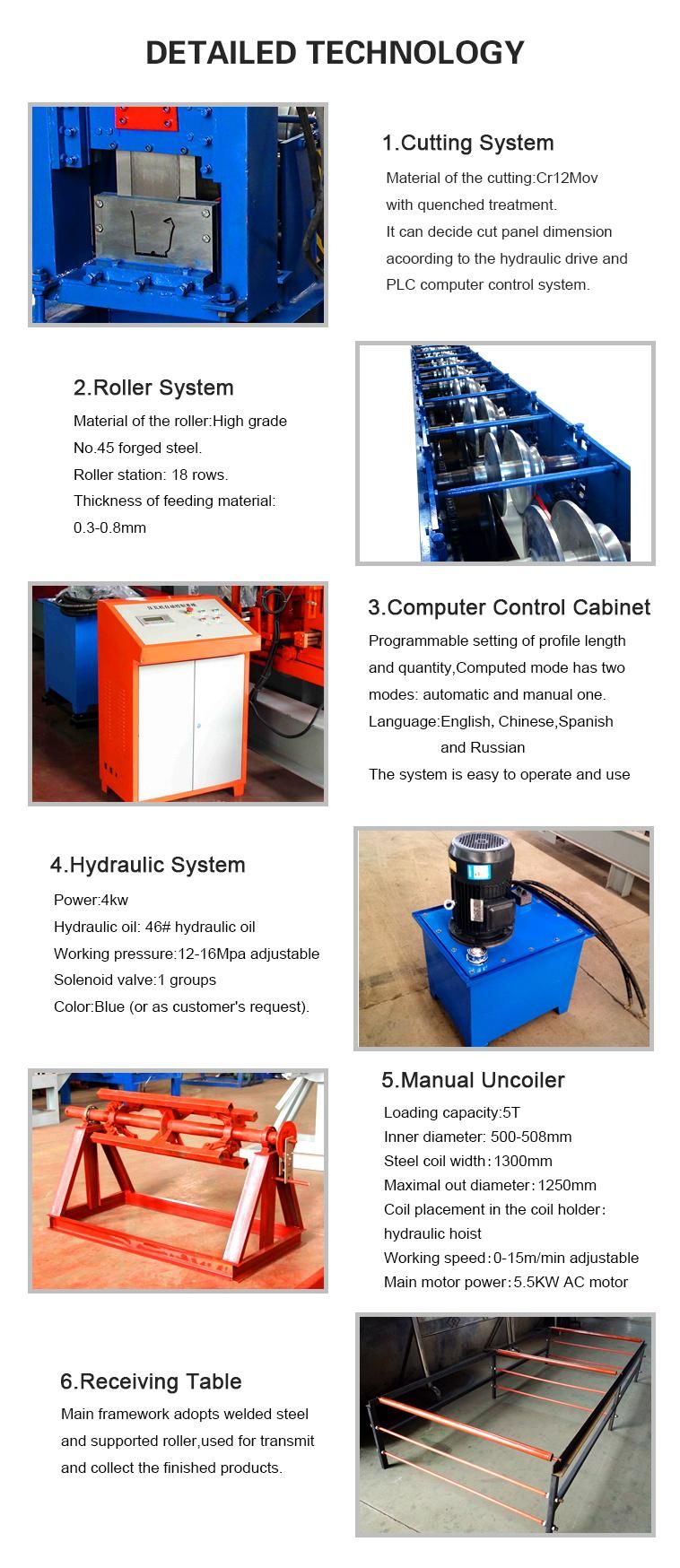

gutter cold roll forming machine is composed of uncoiler, the feed leading table, the main machine, the formation cutting device, hydraulic system, control system and the product bracket.
2.Main parameter of water gutter cold roll forming equipmentNo.main parameter of gutter roll forming machine 1 Suitable to process Color steel plate 2 Width of the plate 200-600mm 3 Rollers 14-16rows 4 Dimensions 8.6*0.8*1.2m 5 Power 4+3kw 6 Thickness of the plate 0.3-0.8mm 7 Productivity 8-12m/min 8 Diameter of the roller 52mm 9 Weight About 4.5 T 10 Voltage 380V 50Hz 3phases 11 Rolling material Carbon Steel 45# 12 Material of the cutting plate Cr12 13 Processing precision Within 1.00mm 14 Control system PLC control 15 Side panel of machine 14mm 16 Main structure of the machine 300 H steel 17 Weight About 4.5 T

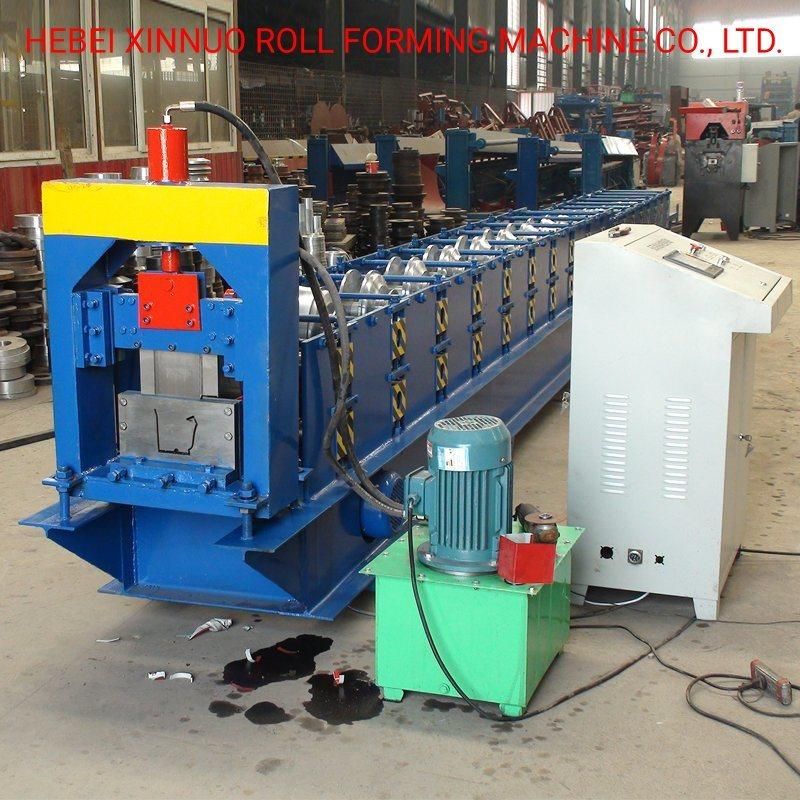

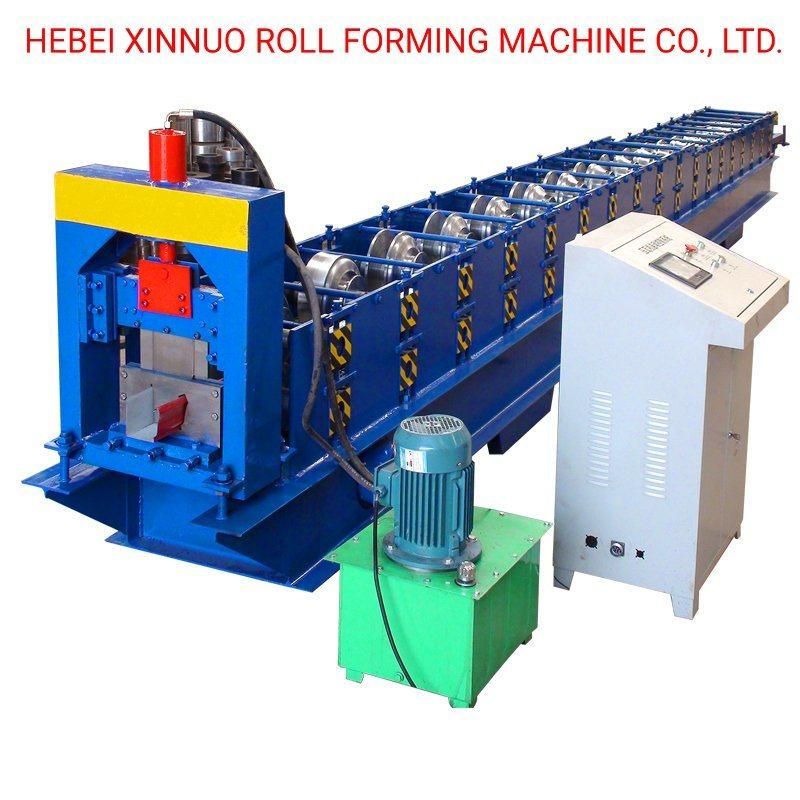

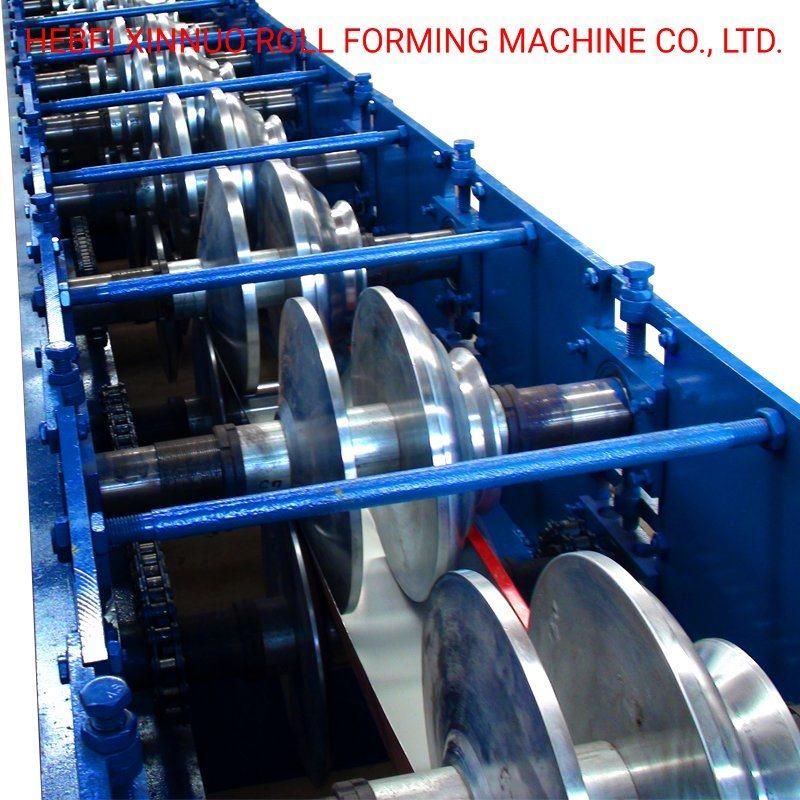

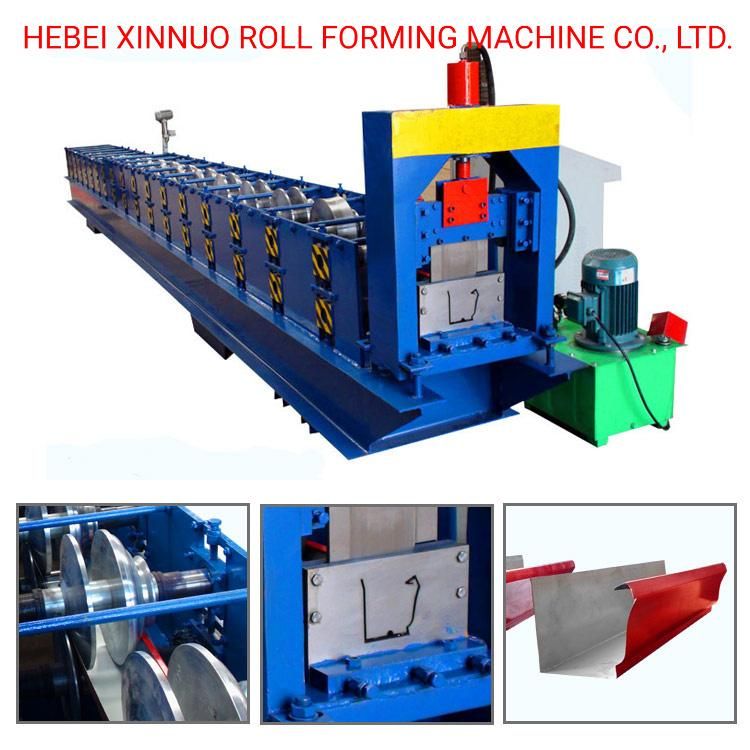

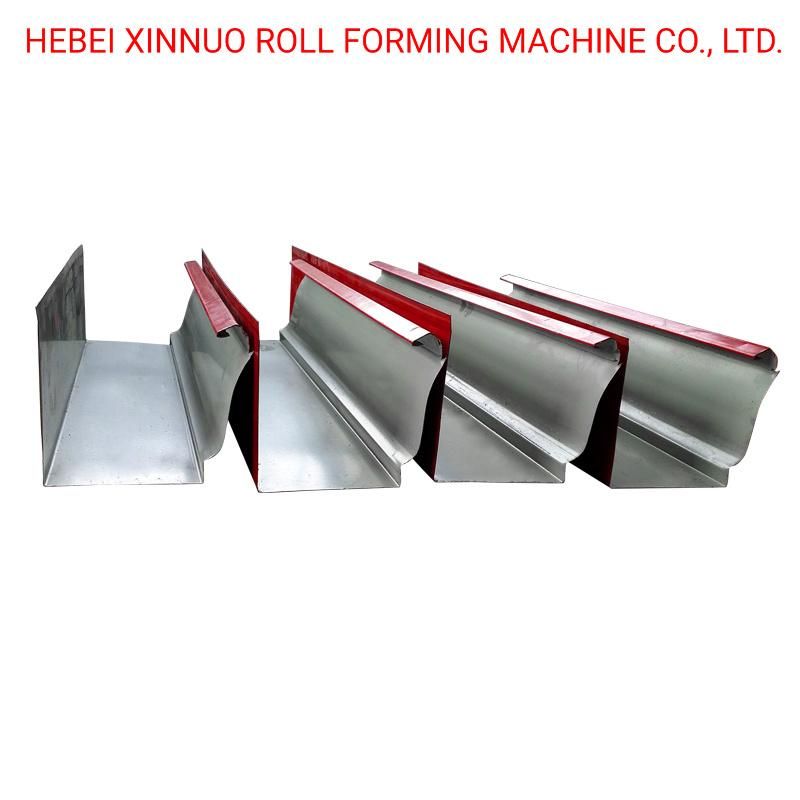

3. some pictures of water gutter cold metal sheet roll forming machine
Our AdvantagesCompany Profile
Main machine is nude, the computer control box is packed with wooden framFAQ
2:How to visit our company:
Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
3:When we exported the machines:
We have beening making and exporting the machines since from the year of 1998.
4:If you want to get more pictures or videos of the machines,I can send them to you by Email or SKype.
1. The advantage of water gutter cold roll forming machine
gutter cold roll forming machine can bend the roll formed pipe, and let the drainpipe and the bending connect to be the whole.The product after roll forming has long working time than the tranditional ppc pipe, and not aging. It can make the project more integrate, and help to enhance the image of the all project.
gutter cold roll forming machine is composed of uncoiler, the feed leading table, the main machine, the formation cutting device, hydraulic system, control system and the product bracket.
2.Main parameter of water gutter cold roll forming equipmentNo.
3. some pictures of water gutter cold metal sheet roll forming machine
Our AdvantagesCompany Profile
Packaging & Shipping
Main machine is nude, the computer control box is packed with wooden framFAQ
1:How to play order: Inquiry---confirm the profile drawings and price----confirm the PI---arrange the deposit or L/C---then OK
2:How to visit our company:
Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
3:When we exported the machines:
We have beening making and exporting the machines since from the year of 1998.
4:If you want to get more pictures or videos of the machines,I can send them to you by Email or SKype.
