• Model NO.：QT8-15
• Capacity：400*200*200mm About 15300PCS Per Shift
• Mould Capacity：400*200*200mmmm Make 8 Pieces Per Mould
• Weight：Around 6000kgs
• Voltage：Customized Your Local Voltage
• Moulding Cycle：15 Seconds
• Warranty：1 Year
• Pressure：Hydraulic
• Brick Type：Hollow, Solid, Paver and So on
• Transport Package：40 Feet High Container with Bulk Package
• Specification：8300*1860*3000mm
• Trademark：Shiyue
• Origin：Shandong Province, China
• HS Code：8474802000
• Production Capacity：2000 Sets Per Year

Basic Info.

Model NO. QT8-15 Capacity 400*200*200mm About 15300PCS Per Shift Mould Capacity 400*200*200mmmm Make 8 Pieces Per Mould Weight Around 6000kgs Voltage Customized Your Local Voltage Moulding Cycle 15 Seconds Warranty 1 Year Pressure Hydraulic Brick Type Hollow, Solid, Paver and So on Transport Package 40 Feet High Container with Bulk Package Specification 8300*1860*3000mm Trademark Shiyue Origin Shandong Province, China HS Code 8474802000 Production Capacity 2000 Sets Per Year

Product Description

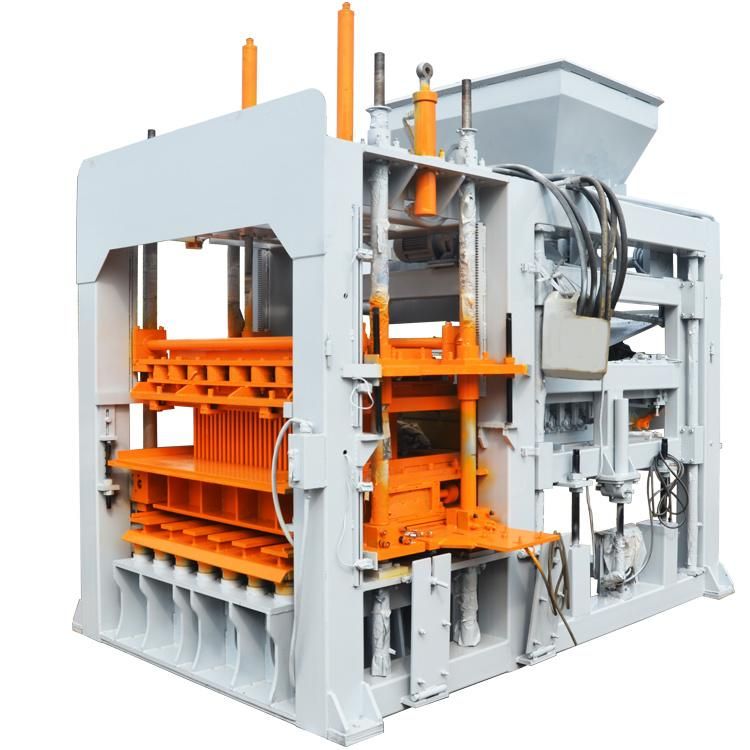

QT8-15 construction machine buildings concrete block machine paving blocks making machine main parameters and advantage

1.Short molding cycle,high productivity.
2.Stable and reliable performance,can endure long-term fatigue-resistant use.
3.Can add block raw materials automatically and the blocks can be stacked Immediately.
4.Can produce both solid blocks and hollow blocks; and can produce paver blocks / curb stones with a plus-material-feeder Machine.
5.Type characteristic: Completely automatic block making machine
6.Productivity: 20% higher productivity than the similar products
7.Technical superiority: Adopt the most advanced computer-controlled technology
8.Functional performance: Can be used to make various blocks & bricks in dimension,shape and use,and various block raw materials are applicable

Overall Dimension	8300*1860*3000mm
Rated Pressure	21MPa
Main Vibration Form	Platform Vibration
Vibration Frequency	2800-4500 ( r/min)
Pallet Size	950*900mm
Molding cycle	15-20s
Overall Power	37kw
Vibration Force	45KN
Total Mass	8T
Demolding method	Hydraulic
Factory Area	2500m2
Applied Products	Concrete blocks, hollow/solid blocks, pavers, interlocking blocks , curbstone, colored pavers ,etc.
Raw Material	Crushed stone, sand , cement, dust, and fly ash, gravel, slag, and other raw material etc.

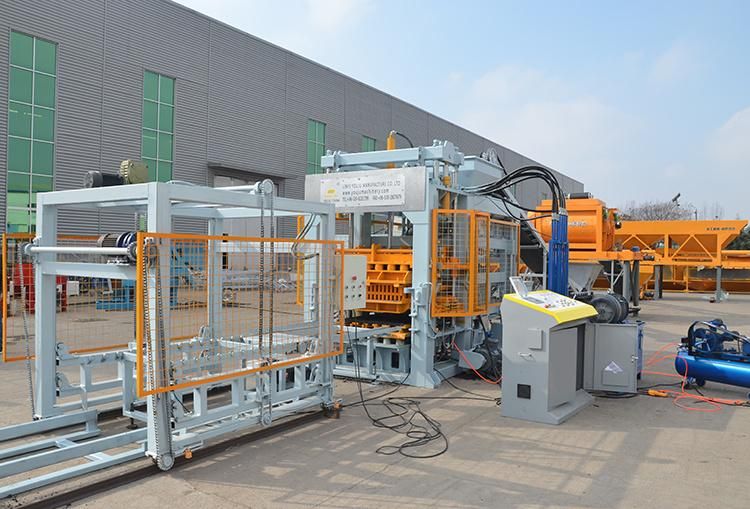

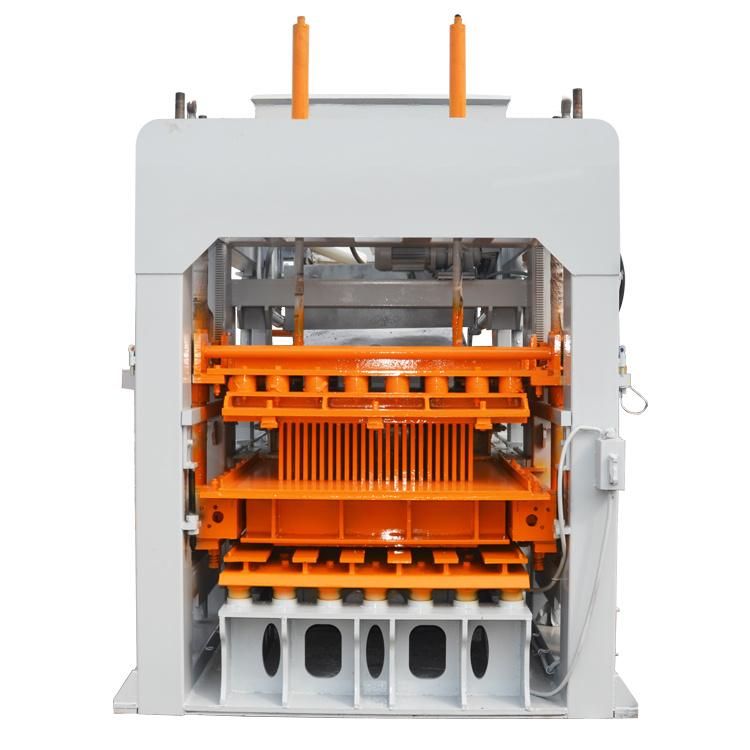

QT8-15 construction machine buildings concrete block machine paving blocks making machine show

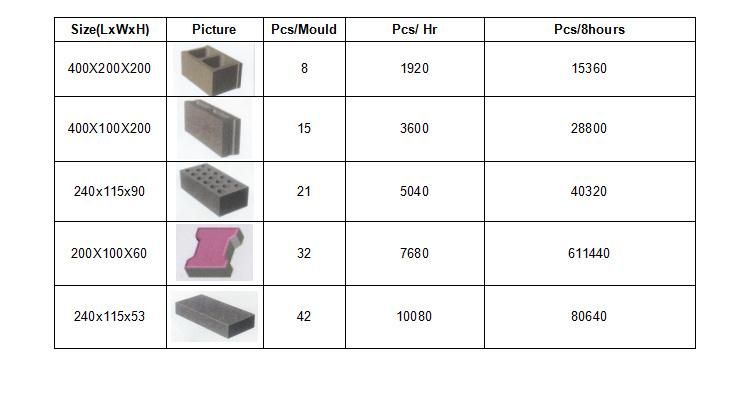

common brick capacity

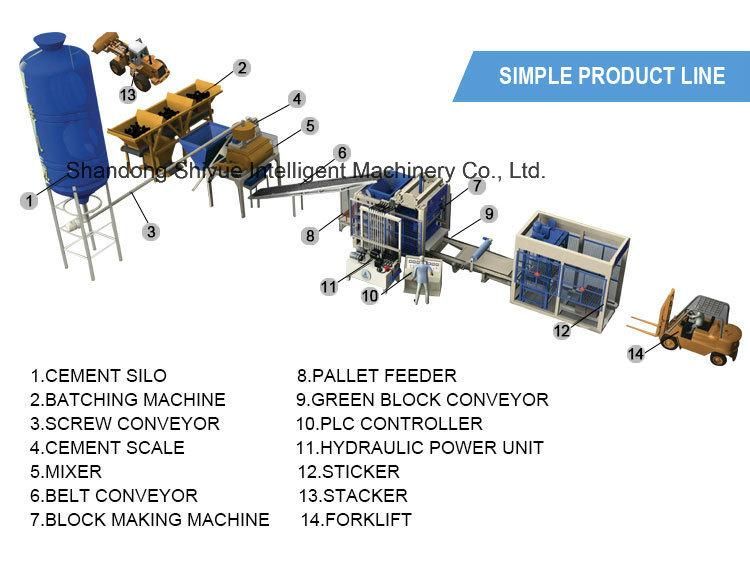

production line


FAQ
1> Is this block machine suitable for us to use?
Answer: if you want to make common bricks and Medium capacity, this model is suitable for you, if no, please tell us what kind of bricks do you want to make? or what capacity do you prefer?Then the most suitable model can be recommended to you.
2>Which industry did this block machine usually be used in?
Answer: Interlocking bricks, Paving bricks,Solid bricks,etc
3>How to use the block machine?
Answer: We will send the operating manual to you after you purchase the machine, for bigger machine, we can offer engineer fly to your side for installation and training your workers.
4>How about the after sale service of block machine?
Answer: 1 year guarantee for the whole machine (without the spare parts),good machine no need after sale service,we keep the superior quality machine for you.
5>what's your payment term
our common payment is 30% deposit by T/T before arrange the machine production,70% balance before the delivery,if other payment term,we can negotiation.
