• Model NO.：siding panel
• Color：as You Like
• Trade or Factory：Factory
• Guarantee：1 Year
• Life Time：10 Years
• Service：Provide Engineer to Install The Machines
• Brand Name of PLC：as Customer Request
• Drawing：Designed as Customer Request
• Power：38V, 50Hz, 3 Phrase or as Your Like
• Decoiler Type：Manul, Electric, Hydraulic
• Control System：PLC
• Transport Package：Main Machine Nude Packing with Plastic Film
• Specification：5800*1500*1500
• Trademark：KXD
• Origin：China
• HS Code：8455221000
• Production Capacity：30 Sets Per Month

Main parameter of 230 siding roll forming machine

1

Suitable to process

Color steel plate

2

Width of the plate

330mm

3

Thickness of the plate

0.5-0.9mm

4

De-coiler

Manual one, can load 5 tons raw material

5

Rollers for forming

16 rows

6

Diameter of the roller

Φ52mm

7

Rolling material

Carbon Steel 45#

8

Main motor power

4kw

9

Productivity

8-12m/min

10

Cutting method

Hydraulic mould cutting

11

Material of the cutting blade

Cr12

12

Hydraulic cutting power

3kw

13

Processing precision

Within 1.00mm

14

Control system

Delta PLC control

15

Side panel of machine

14mm

16

Main structure of the machine

300 H steel

17

Weight

About 3.5T

18

Dimensions

7.2*0.8*1.2m

19

Voltage

380V 50Hz 3phases(changeable as needs)

20

Certificate

CE/ISO/TUV

3.the picture of the metal siding panel roll forming machine

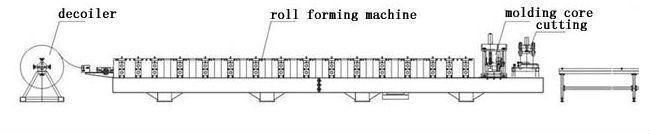

                              4.The production process

Decoiler→Flating→Feeding →Forming→Cut to length→Colletion---(finish goods)

                              5.Production Flow

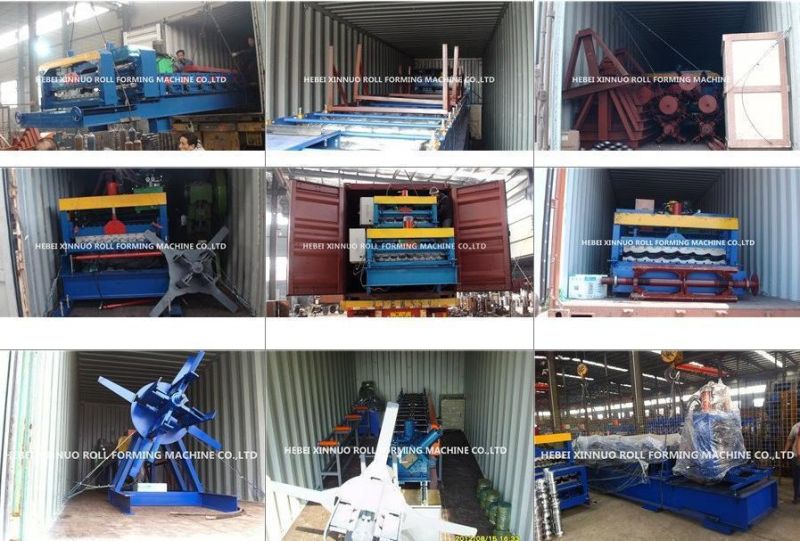

                            6.Packaging & Shipping

  Main machine is nude, the computer control box is packed with wooden frame

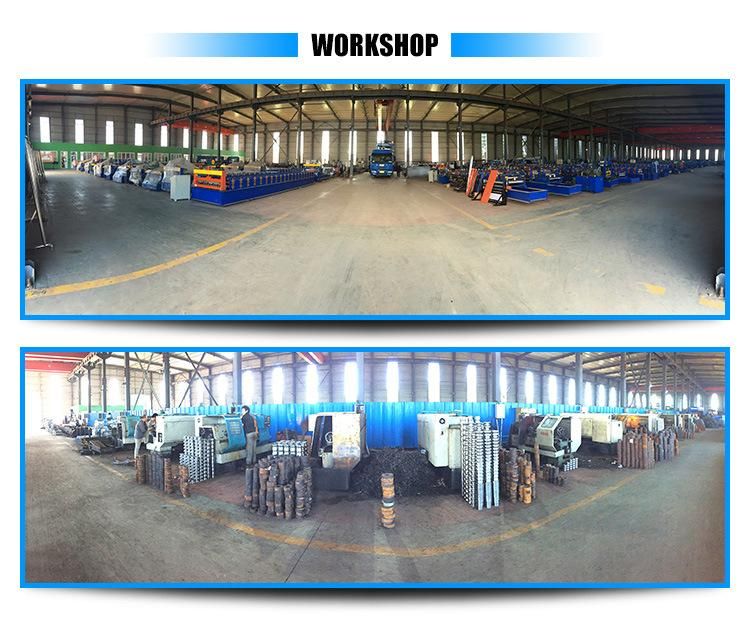

                   7.company overview
8.FAQ

1:How to play order: Inquiry---confirm the profile drawings and price----confirm the PI---arrange the deposit or L/C---then OK

2:How to visit our company:

Fly to Beijing airport:   By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.

Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao  to Cangzhou Xi(4.5 hours),then we can pick up you.

If any questions,you can call me mobile phone at any times:

3:When we exported the machines:

We have beening making and exporting the machines since from the year of 1998.

4:If you want to get more pictures or videos of the machines,I can send them to you by Email or SKype.
