• Model NO.：CLJZ2S-500*4200
• Cutting Motor Power：2*2.2kw 2800r,Min
• Servo Motor Power：1.5kw 4050r,Min
• Air Pressure：0.5-0.8MPa
• Air Consumption：60L,Min
• Blade Specification：Φ500*Φ30*4.4 Z=120
• Cutter Feeding Speed：0-3m,Min
• Cutter Moving Speed Range：0-20m,Min
• Cutting Length at 90°：360-4200mm
• Cutting Length at 45°：360mm Plus Two Profile′s Height -4200mm
• Cutting Width*Height at 45&Deg：Max. 150*150mm
• Cutting Width*Height at 90&Deg：Max. 150*200mm
• Cutting Angle：45°, 90°
• Color：Gray or as Requirement
• Keywprd：Aluminum Cutting Machine Price
• Transport Package：Simple Stretch Film or Plywood
• Trademark：TRUETEC
• Origin：Shandong China
• Production Capacity：15 Sets Per Month

Basic Info.

Model NO. CLJZ2S-500*4200 Cutting Motor Power 2*2.2kw 2800r/Min Servo Motor Power 1.5kw 4050r/Min Air Pressure 0.5-0.8MPa Air Consumption 60L/Min Blade Specification Φ500*Φ30*4.4 Z=120 Cutter Feeding Speed 0-3m/Min Cutter Moving Speed Range 0-20m/Min Cutting Length at 90° 360-4200mm Cutting Length at 45° 360mm Plus Two Profile′s Height -4200mm Cutting Width*Height at 45&Deg Max. 150*150mm Cutting Width*Height at 90&Deg Max. 150*200mm Cutting Angle 45°, 90° Color Gray or as Requirement Keywprd Aluminum Cutting Machine Price Transport Package Simple Stretch Film or Plywood Trademark TRUETEC Origin Shandong China Production Capacity 15 Sets Per Month

Product Description

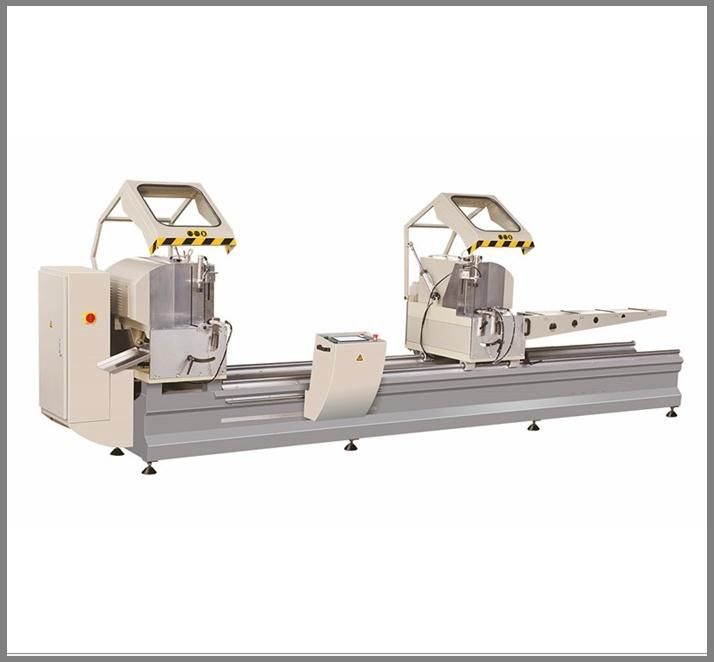

Aluminum section cutting machine buy online china price

Equipment Advantages

1.     For cutting Aluminum profile.

2.     The feeding system adopts imported linear guide pair, with high accuracy and stability.

3.     Auto 45°and 90°cutting change

4.     Imported linear guiding pair ensured steady processing accuracy.

5.     Saw blade rotates smoothly due to high accuracy spindle.

6.     Hydraulic feeding systems ensure precise and stable feeding.

7.     Middle auto-induction profile supporter and following profile supporter make the loading and clamping  convenient.

8.     Carbide saw blade is of accurate processing and high efficiency.

9.     Two heads can work together or single, when together work, one time can cut off the required length and angle

Technical Data


Power supply	380V 50Hz 3P
Cutting motor power	2*2.2kw, 2800r/min
Servo motor power	1.5kw, 4050r/min
Operation air pressure	0.5~0.8MPa
Air consumption	60L/min
Blade specification	ø500×ø30×4.4×Z120
Cutting speed	0-3m/min
Max. cutting length	4200 mm
Min. cutting length	360mm at 90º, 360mm plus two profiles' height at 45º
Cutting width	Max 135mm
Cutting height	Max. 150mm at 45º, Max. 200mm at 90º
Cutting angle	90°,45°
Repeat locating length tolerance	±0.2mm
Cutting profile surface plane	≤0.10mm
Cutting angle tolerance	±5′
Cutting profile surface roughness	Ra12.5µm
Contour dimension	5900 mm×1750mm×1950mm
Weight	1850kg

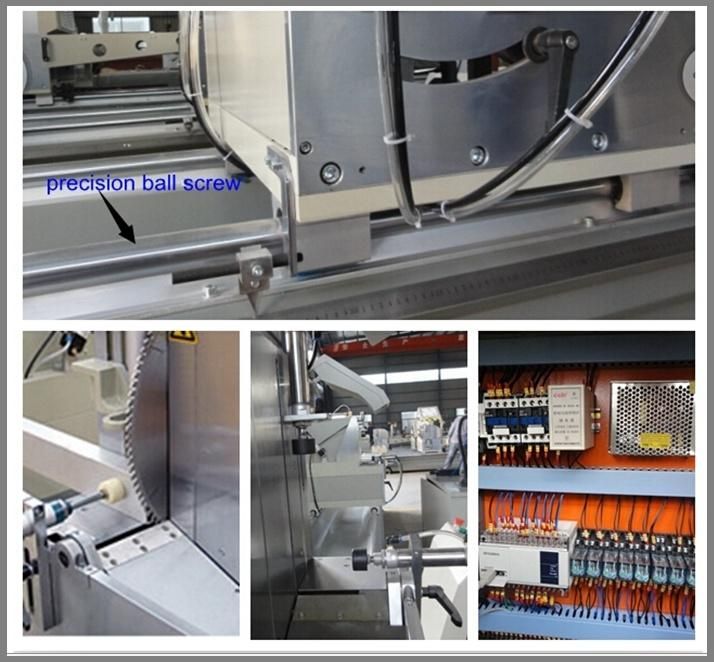

Machines Details


 Main Accessory

Electric Component	Schneider
Buttons	Schneider
Electric relay	Schneider
Motor	Chaoyang
AC Contactor and Circuit Breaker	Schneider

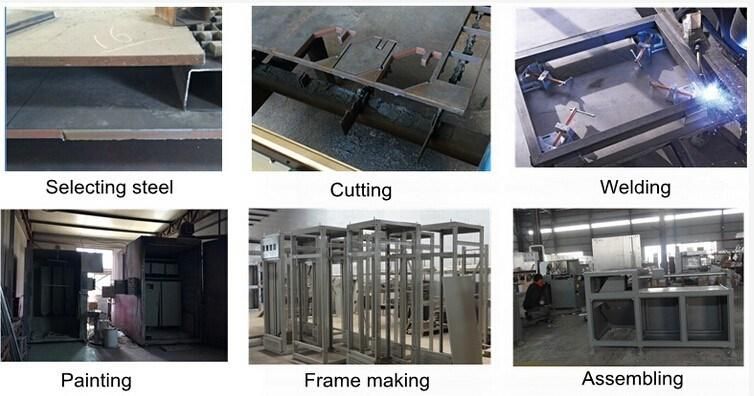

Machine processing

We work with everything from raw material to final machine, could guarantee machine quality from each step. select each part carefully, we are strive to quality first when machine production and test each machine before delivery.
We will provide the best machine for you.



Packaging&Shipping


Our Services

Before payment

Free contact for the most suitable machine

Free professional design for each customer especially.

After sale service

24 hours technical support by phone, email or skype (email or skype) .

1years warranty period

Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.

By offering this support, we make sure the cutomer start the business smoothly, to realise win-win cooperation.

Payment

♦ L/C, 30% deposit by T/T,70% spare payment L/C.

♦ T/T, 30% deposit by T/T,70% spare payment before shipment.

♦ Western Union or Paypal.

Our Company



Welcome To Visit

Our company is a manufacturer of window machine, insulating glass processing machine and curtain wall machine with well-equipped testing equipment and strong technical force.

With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in building trade and other industries. Hope we can cooperate with you.



Our Exhibition

FAQ

1. When can we arrange shippment?
We usually arrange shippment within 25 days after getting deopsit,
but customized machines should be more than 25 days.

2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can send our engineers to repair your machines

3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport.
