Corrugated Sheet Forming Machine (BH-600-305)

Yingkou Bohai Machinery Equipment Manufacture Co., Ltd.
  • Tile Type：Colored Steel
  • Certification：CE, ISO
  • Condition：New
  • Customized：Customized
  • Usage：Roof
  • Transmission Method：Machinery

Base Info

  • Model NO.：BH-600-305
  • Controlling System：PLC&Manual
  • Cutting Material：Cr12MOV
  • Feeding Width：600mm

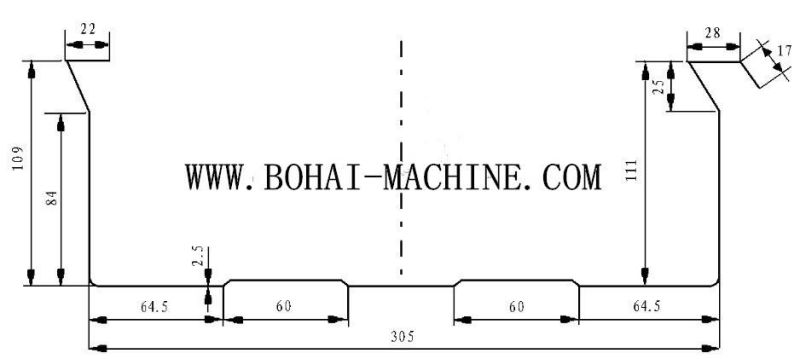

  • Effective Width：305mm
  • The Depth of The Groove：109mm
  • Sheet Operating Factor：51%
  • Largest Span：Less Than 35m
  • Type：Construction,Building Machinery
  • Transport Package：Packed in Container
  • Specification：8900mm*2230mm*2200mm
  • Trademark：BOHAI
  • Origin：Liaoning Province of China
  • HS Code：8455229090
  • Production Capacity：30 Sets,Year

Description

Main Technical Specification:Total power:15.2 KW Main motor power:5.5KWBending power: 3.0KW+1.5KWCutting power: 3.0KWSewing power: 1.1KW+1.1KWControlling system: PLC&ManualCutting : Mechanical cuttingThe depth of the groove:109mm Material of roller shaft: 45# steel, galvanizedMaterial of rollers: 45# steel, quenched with hard chromeCorrugated Sheet Forming Machine (BH-600-305)
