• Model NO.：LMB-A-120
• Certification：CE
• Automatic Grade：Automatic
• CNC or Not：not CNC
• Voltage：380V
• Model：Lmb-a-120
• Input Voltage：380V 50Hz
• Input Power：2.2kw
• Air Pressure：0.4~0.6MPa
• Air Consumption：20L,Time
• Oil Capacity：20L
• Profile Width：≤120mm
• Combining Cylinder Movement：98mm
• Locator Adjustment Range：80mm
• Overall Dimension：1300X1200X1300mm
• Transport Package：Plastic Cover or Wooden Cases or Others
• Trademark：YUEFENG
• Origin：Jinan, Shandong, China
• HS Code：8465990000
• Production Capacity：100 Sets Per Month
• Package size per unit product：68.00cm * 68.00cm * 68.00cm
• Gross weight per unit product：500.000kg

Basic Info.

Model NO. LMB-A-120 Certification CE Automatic Grade Automatic CNC or Not not CNC Voltage 380V Model Lmb-a-120 Input Voltage 380V 50Hz Input Power 2.2kw Air Pressure 0.4~0.6MPa Air Consumption 20L/Time Oil Capacity 20L Profile Width ≤120mm Combining Cylinder Movement 98mm Locator Adjustment Range 80mm Overall Dimension 1300X1200X1300mm Transport Package Plastic Cover or Wooden Cases or Others Trademark YUEFENG Origin Jinan, Shandong, China HS Code 8465990000 Production Capacity 100 Sets Per Month

Packaging & Delivery

Package size per unit product 68.00cm * 68.00cm * 68.00cm Gross weight per unit product 500.000kg

Product Description

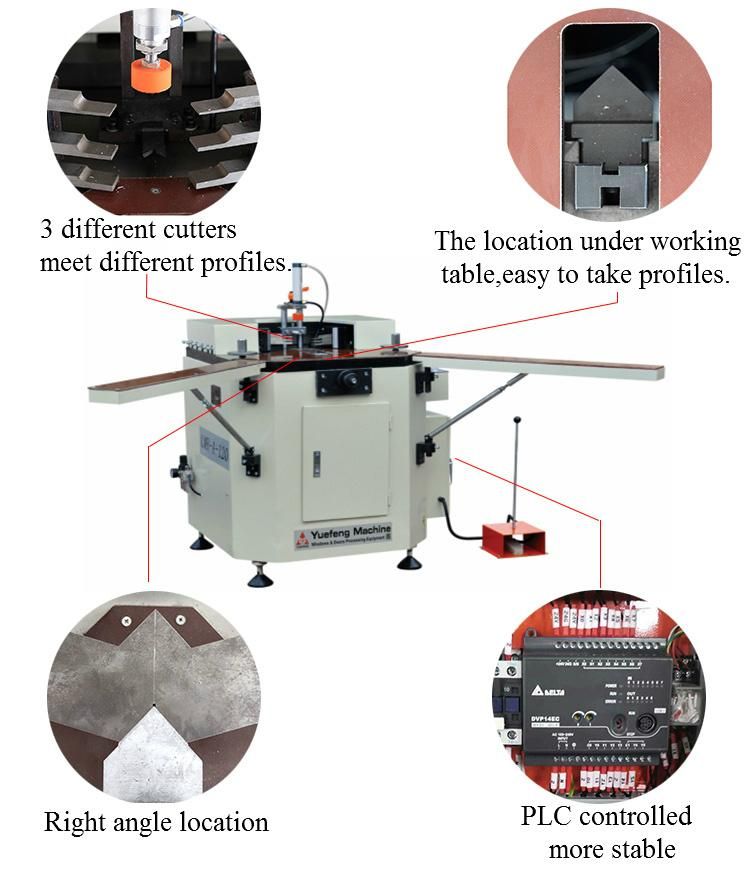

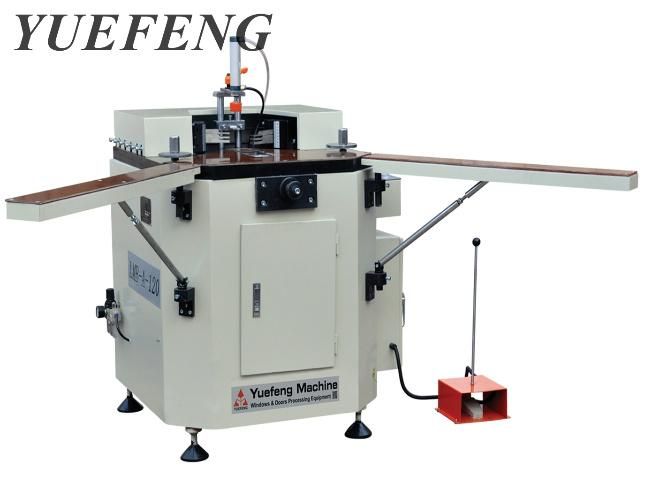

Aluminum window and door crimping machine
 Used for 90°corner combining.
Adjustable corner combining tool that achieve multi-position corner combining.
Inner locator can sit below the worktable, easy operation.
Hydraulic system supplied large punching and riveting force.
Left and right punching heads adopt hard synchronous feeding device, thus makes the connection more firmly.
It has features of easy operation, reliable performance and convenient maintenance.
Technical Parameter:

Model	LMB-A-120
Input voltage	380V 50Hz
Input power	2.2kw
Air pressure	0.4~0.6MPa
Air consumption	20L/Time
Oil capacity	20L
Profile width	≤120mm
Combining cylinder movement	98mm
Locator adjustment range	80mm
Overall dimension	1300×1200×1300mm

RFQ:

1.Are your company a trading one or a factory?
Factory + trade (integration), 36 years' focusing on Upvc,Aluminum Window and Doors Equipment ,insulating glass equipment and curtain wall equipment.

2.After an order is placed, when to deliver?

♦ Generally about 15 days,  If  we have inventory, we can arrange shipment within 5 days.
♦ Please be aware that our production lead times depend on specific items and item quantities.
3.What about the warranty with after - sales services?
♦ 24 months warranty. Besides,we can help you to solve your problem freely;

♦ After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problem encountered while using our product, handles guest problems and complaints in a professional and timely.
4.What about the services and product' quality?
♦ Each machine must be carried out 100% quality examination and test before shipment.

♦ And all machines meet ISO and CE certification.
5. We don't know the machine operation, what should we do?

♦ We can send engineer to your place, or we provide video training to show you how to install & operate, let engineer help you online.
