• Model NO.：LJZ2-CNC-500X4200
• Input Voltage：380V 50Hz
• Input Power：6.0kw
• Air Pressure：0.5~0.8MPa
• Air Consumption：200L,Min
• Spindle Speed：3200r,Min
• Cutting Length：400~4200mm(400~5000mm)
• Cutting Width：10~130mm
• Cutting Height：10~300mm
• Cutting Angle：90 Deg; 45 Deg; 67.5 Deg;
• Transport Package：Plastic Film or Depends on Demands
• Specification：5500 * 1700 * 1600mm
• Trademark：Yuefeng
• Origin：Jinan Shandong, China
• HS Code：8477800000
• Production Capacity：15 Sets ,Month

Basic Info.

Model NO. LJZ2-CNC-500X4200 Input Voltage 380V 50Hz Input Power 6.0kw Air Pressure 0.5~0.8MPa Air Consumption 200L/Min Spindle Speed 3200r/Min Cutting Length 400~4200mm(400~5000mm) Cutting Width 10~130mm Cutting Height 10~300mm Cutting Angle 90 Deg; 45 Deg; 67.5 Deg; Transport Package Plastic Film or Depends on Demands Specification 5500 * 1700 * 1600mm Trademark Yuefeng Origin Jinan Shandong, China HS Code 8477800000 Production Capacity 15 Sets /Month

Product Description

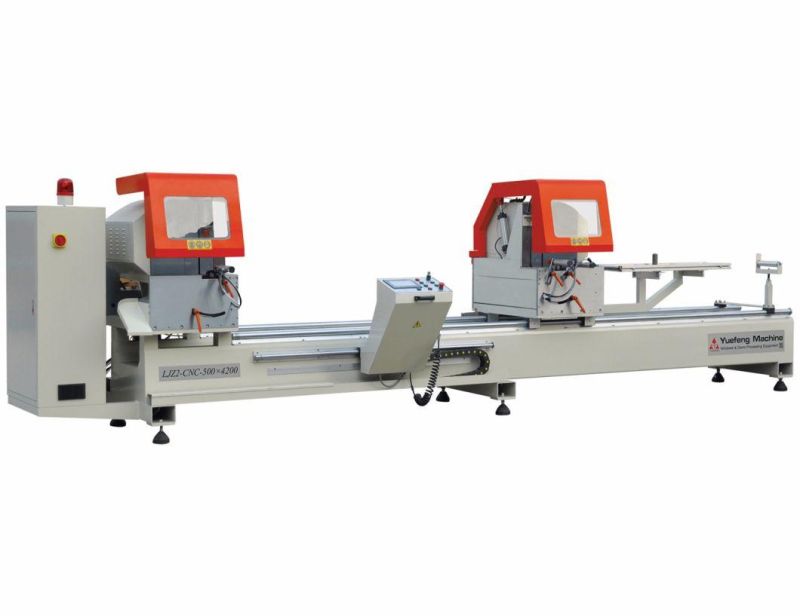

LJZ2-CNC-500×4200(5000)   CNC Double Mitre Saw
 > Used for cutting profiles such as aluminum profile and curtain wall, two heads cutting angle 90°/45°/67.5°(22.5°) are available.

>Cutting dimension controlled by screw, with high accurate driving and locating. Right head can achieve the setting location automatically. Right head feed the profiles automatically; can also use for cutting aluminum connectors.

>Japan CNC system adopted, which include PLC, touched screen, servomotor, and servodriver, Photo electrical switch, and Photo electrical cells etc. Complete Japan CNC system results high accuracy and smooth working.

>Uniform speed feeding and smooth motion due to air-draulic damping cylinder.

>Saw blade feed system adopts imported linear guide kinematic pair results high accuracy.

>Automatic protecting guards result convenience and safety.

Technical Parameter:


Model	LJZ2-CNC-500×4200(5000)
Input voltage	380V 50Hz
Input power	6.0Kw
Air pressure	0.5~0.8MPa
Air consumption	200L/min
Spindle speed	3200r/min
Cutting length	400~4200mm(400~5000mm)
Cutting width	10~130mm
Cutting height	10~300mm
Cutting angle	90° 45° 67.5°
Saw feeding speed	0~3m/min
Saw blade standard	φ500×4.4×φ30×Z120
Overall dimension	5500(6300)×1700×1600mm

FAQ

1.Are your company a trading one or a factory?
Factory + trade (integration), 35 years' focusing on Upvc,Aluminum Window and Doors Equipment ,insulating
glass equipment and curtain wall equipment.

2.After an order is placed, when to deliver?
 Generally about 15 days,  If  we have inventory, we can arrange shipment within 5 days.
 Please be aware that our production lead times depend on specific items and item quantities.

3.What about the warranty with after - sales services?
 12 months warranty. Besides,we can help you to solve your problem freely;
After the warranty,the professional after-sale service team will provide perfect technical support,and help customers solve problems ,encountered while using our products.Handles guest problems and complaints in a professional and timely.

4.What about the services and product' quality?
 Each machine must be carried out 100% quality examination and test before shipment.
 And all machines meet ISO and CE certification.

5. We don't know the machine operation, what should we do?
 We can send engineer to your place, or we provide video training to show you how to install & operate, let engineer help you online.
