Indonesia Type G550 760 Steel Roofing Tile Sheet Roll Forming Machine for Sale
Cangzhou Nexus Machinery Co., Ltd.- Tile Type：Colored Steel
- Certification：CE, ISO
- Condition：New
- Customized：Customized
- Usage：Roof, Wall
- Transmission Method：Electric
Base Info
- Product Name：Indonesia Type G550 760 Steel Roofing Machine
- Raw Material：PPGI Sheet
- Thickness Range：0.3-0.8mm
- Machine Power：4kw+3kw
- Machine Weight：About 5 Tons
- Warranty：12 Months
- Afer-Sales Service：Engineer Is Availble to Overseas
- Speed：5-12m,Min
- Transport Package：Plastic Film & Steel Wire Fixed
- Specification：5500mm*1500mm*1500mm(L*W*H)
- Trademark：NEXUS MACHINERY
- Origin：China
- HS Code：8455221000
- Production Capacity：30 Sets , Months
Description
TECHNICAL PARAMETERS FOR ROLL FORMING MACHINE
Serial Number
Item
Parameters
Remark
Applicable material
Type
GI/PPGI
Thickness
0.25-0.6MM
Yield strength(Mpa)
G550
760
Main performance parameters
Forming speed(M/MIN)
12-20M/MIN
Machine size(L×W×H)
9*1.6*1.2
Refer to the machine
Power supply(KW)
7.5+4.0
Motor and Hydraulic Motor
MACHINE COMPONENTS FOR PANEL ROLL FORMING MACHINE
Name
Model/name
Quantity
Technical description
1.Decoiling system
Hydraulic decoiler
1 set
Capacity: Max. 5Ton,hydraulic control steel coil inner bore expanding, shrinkage and stop.
2.Forming machine
Material Guiding System
1 set
For feeding in a right position no Deviation.
Main Roll Forming Machine
1 set
About 22 steps, motor driving and chain transmission. Wall plate structure.
3.Cutting system
Hydraulic Cutting Device
post cutting
4.Hydraulic system
Hydraulic Station
1 set
Providing the power of cutting.
5.Control system
PLC Control System
1 set
PLC control system, encoder positioning and cut-to-length automatically, touch screen operating.
6.Racking system
Exit rack
2 PCS
no power
4. Guarantee:
1) Engineer will give free training lessons to labors in buyer's factory.
2) The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD100 per day for engineer.
3) During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.
4). We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.

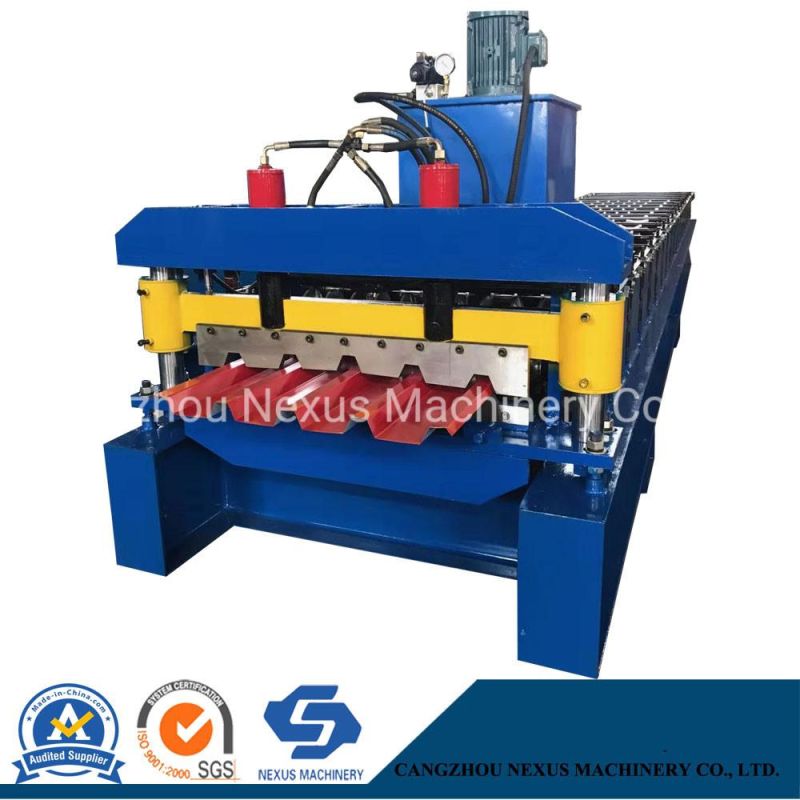

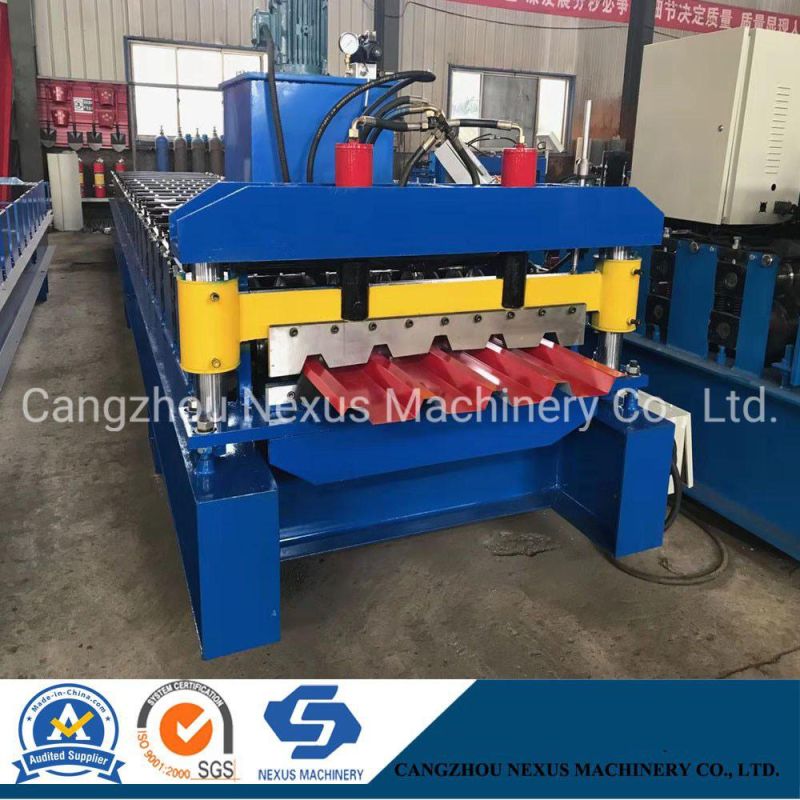

5. Photos of Indonesia Type G550 760 Steel Roofing Tile Sheet Roll Forming Machine For Sale for Reference:
ABOUT US:
Cangzhou Nexus Machinery Co.,Ltd is experienced manufacturer & exporter of cold roll forming machine with ISO quality system.
Our R&D department is staffed with senior engineers who has more than 20 years experience in metal forming machine industry, so we are able to assist customers with professional designing and solution.
Our range of products: roof tile roll forming machine, cladding roll forming machine, metal decking roll forming machines, C/U/Z/W/L steel purlin roll forming machine etc. We also can supply steel coils, roof panels to suit diverse requirements of our global customers.
Today, we have exported our machines to America, Chile, Mexico, Bolivia, Brazil, Colombia, Argentina, Ecuador, Honduras, Fiji, Papua New Guinea, Kuwait, Syria, Oman, Saudi Arabia, U.A.E, Nigeria, Tanzania,Ethiopia, Gana, Guinea,South Sudan, Algeria, Niger, Philippines,Indonesia,India, Azerbaijan and Kazakhstan.
We have rich experience for cold roll forming machine solution,competitive price and excellent service. We will continue to do our best to supply perfect products and service for customers. Invite you to contact us for further information.
