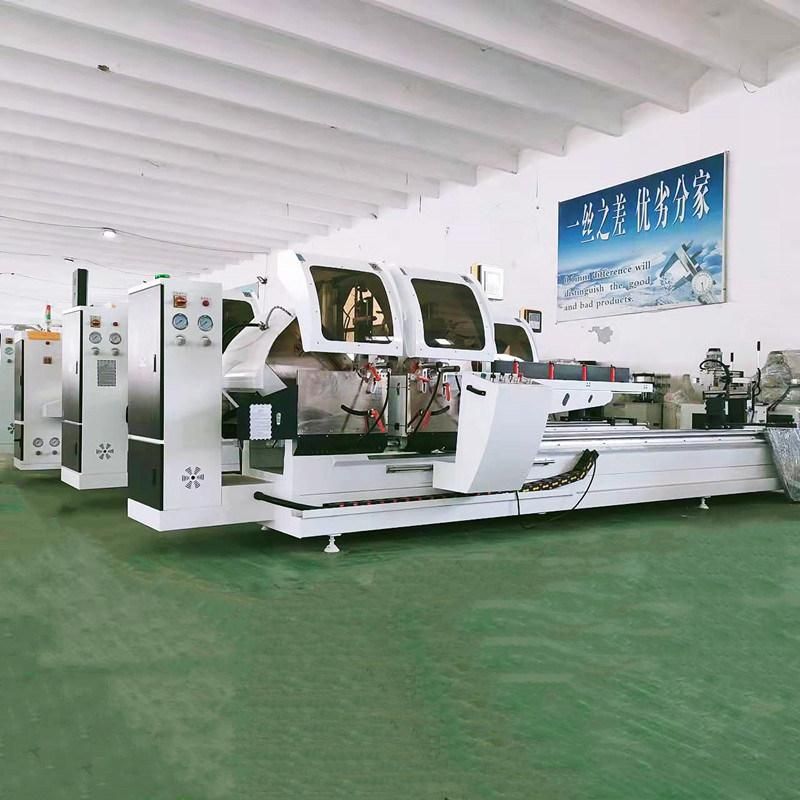

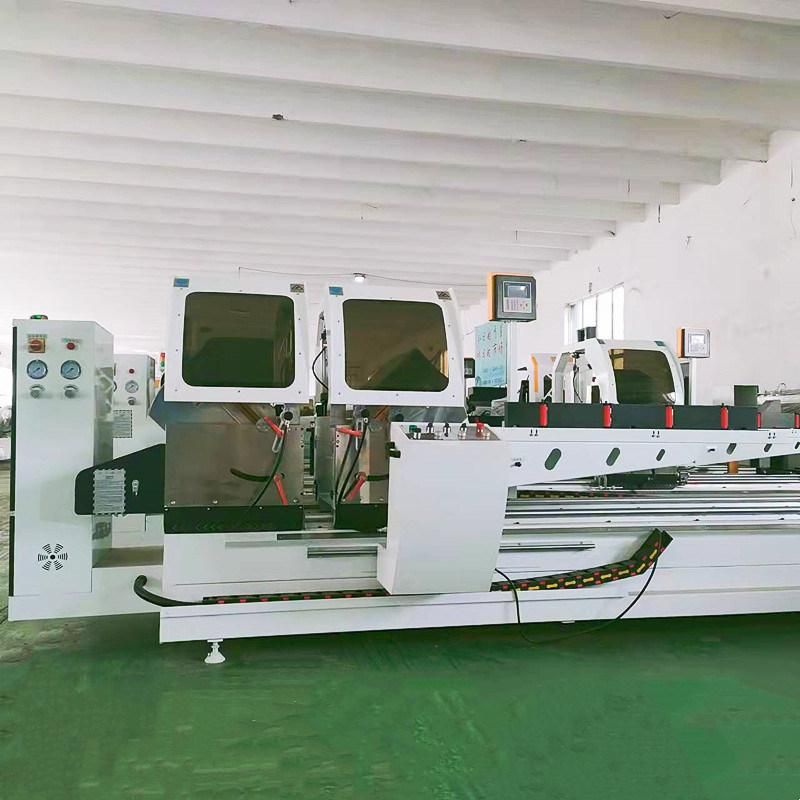

Aluminium Fabrication Machines Window Machine Digital Display Double Head Cutting Saw
Jinan Seth Intelligent Equipment Co., Ltd.- After-sales Service：Video Instruction, Online
- Warranty：12months
- Condition：New
- Certification：ISO, CE, SGS
- Automatic Grade：Automatic
- CNC or Not：Digital display
Base Info
- Voltage：380V
- Power：380V,50Hz
- Saw Head Motor：2X3.0kw 2840r,Min
- Working Pressure：0.6-0.8MPa
- Air Supply：60L,Min
- Cutting Length：380-4300mm
- Cutting Width：Max.135mm
- Max.Cutting Slop：45° 135X220mm
- Cutting Angle：90° 45°
- Feeding Speed：0·3m,Min
- Saw Blade：500X4.4X30 Z=120
- Overall Dimension：5800X1800X1500mm
- Weight：1550kgs
- Transport Package：Wooden Box
- Specification：1750kgs
- Trademark：SETH
- Origin：Jinan
- HS Code：8461500090
Description
Detailed Photos
Certifications
Our Advantages
FAQ
Q: Is SETH a manufacturer or trading company?
A: We are the manufacturer and seller at the same time.SETH is one PROFESSIONAL
window machine company in china.
Q: SETH's main products?
A: Aluminum window machines: CNC cutting center, double miter saw, end milling machine,
CNC milling machine, aluminum punching machine, end milling machine, copy router and
corner connector saw, etc; Wood window machines: wood saw, wood window frame machine,
vertical & horizontal drilling machine, dovtail making machine, wood planner, and tenon making machine, etc.
Q: SETH's after-service?
A: 1option:
we have engineers to install the machines and train your workers.
Our customers should pay for our engineer's round trip tickets, board and lodging during testing and teaching, subsidy USD70 per day.
2 option:
On-line Service and All documents and videos for Installation and train operation for free.(For Optional)
we are manufacture and looking for distributors all over the world.Join us and contact with me.
