• Model NO.：LX-CNC-1200-2
• Voltage：380V
• Numerical Control：CNC,Mnc
• Performance Classification：MID-Range CNC Machine Tools
• Application：Window
• Trademark：Zunbo
• Origin：China

Basic Info.

Model NO. LX-CNC-1200-2 Voltage 380V Numerical Control CNC/Mnc Performance Classification MID-Range CNC Machine Tools Application Window Trademark Zunbo Origin China

Product Description

Product Description:

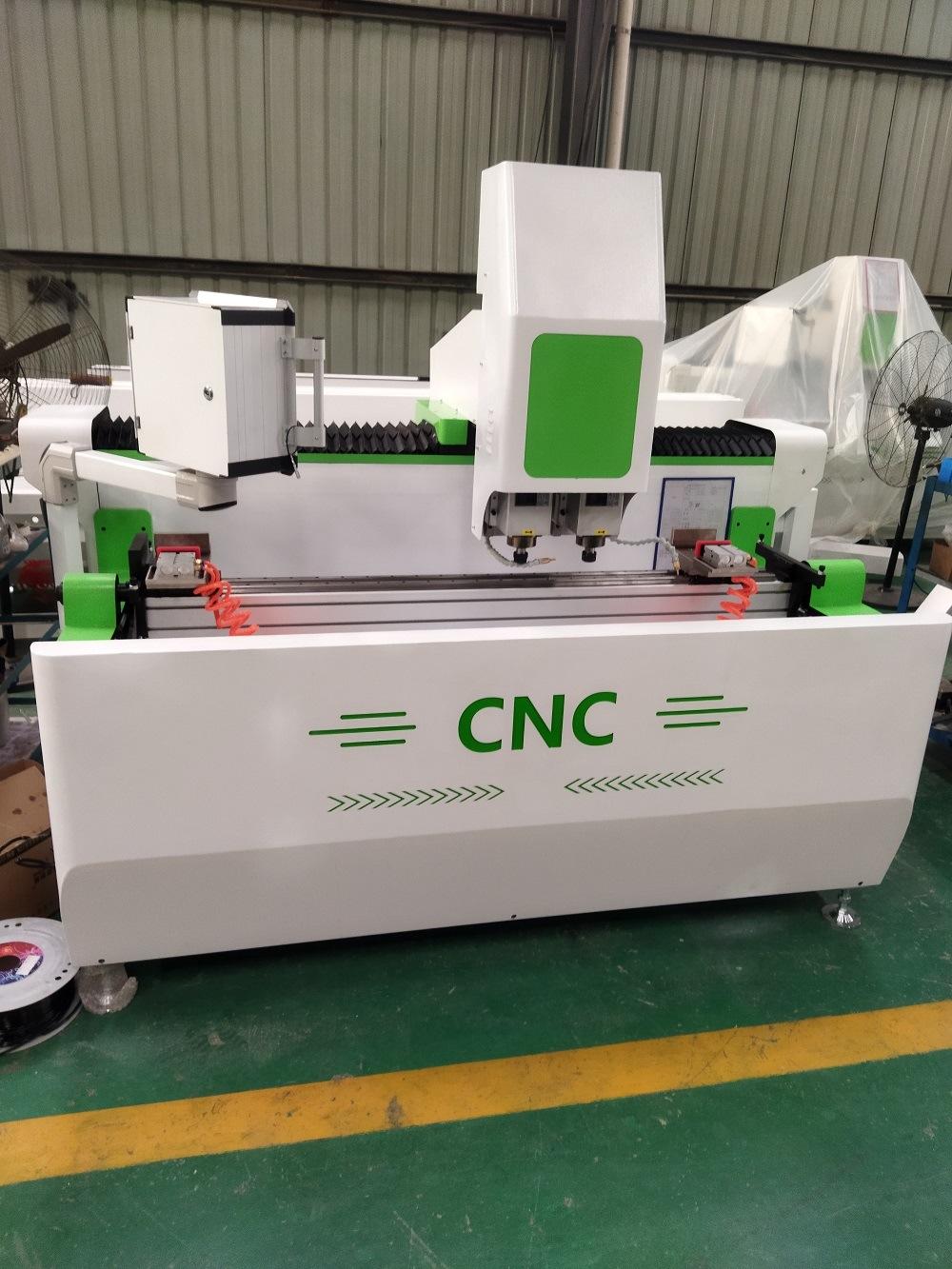

Double-head aluminum profile CNC drilling and milling machine
Suitable for drilling, milling grooves, round holes, special-shaped holes, plane engraving and other processing systems for aluminum alloy profiles. The Red Sea CNC system is used
Using electric spindle, high precision, good safety and high reliability
The X-axis adopts high-precision helical gears and helical racks, and the Y-axis and Z-axis adopts high-precision ball screw transmission. The processing code is automatically converted through the programming software. The operation is simple, the efficiency is high, and the labor intensity is low. 0~+90°), three-sided processing can be realized in one clamping
Double-head 1200 aluminum profile profile milling parameter power supply 380V/50Hz Spindle power 4.5Kw Two spindle speeds 18000rpm Working pressure 0.5-0.6MPa X-axis travel 1200MM Y-axis travel 350mm Z-axis travel 350mm Processing range: 3000*120mm Tool holder type: ER20

Technical Parameter:

Power supply 380V/50Hz
Spindle power 4.5Kw two
Spindle speed 18000rpm
Working pressure 0.5-0.6MPa
X axis stroke 1200MM
Y-axis stroke 350mm
Z axis stroke 350mm
Processing range: 3000*120mm
Tool holder type: ER20
