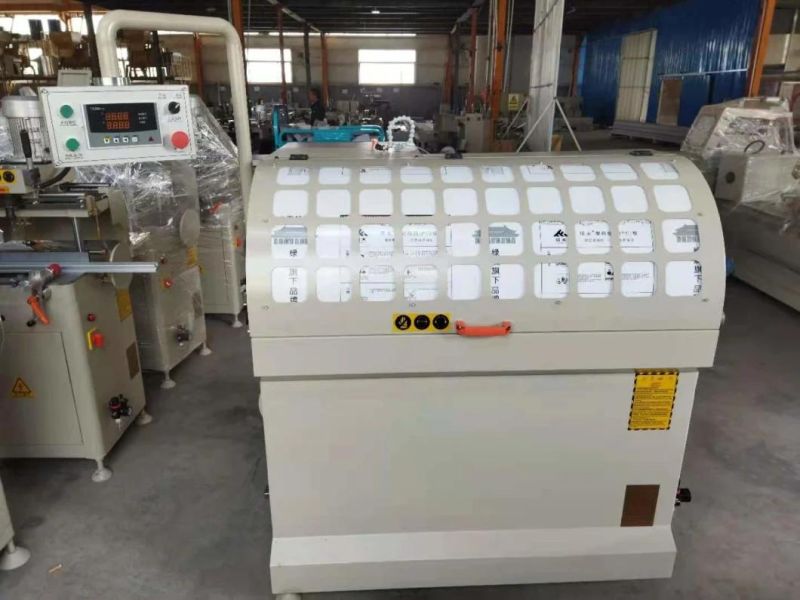

Ljm-CNC-500 Automatic Angle Corner Saw of Aluminum Doors and Windows CNC Machine Corner Cutter
Shandong Zunbo CNC Equipment Co., Ltd.- After-sales Service：Lifetime Maintenance
- Warranty：1 Year
- Condition：New
- Certification：ISO, CE
- Automatic Grade：Automatic
- CNC or Not：CNC
Base Info
- Model NO.：Ljm-CNC-500
- Voltage：380V
- Numerical Control：CNC,Mnc
- Performance Classification：MID-Range CNC Machine Tools
- Application：Window
- Movement Method：Automatic Feeding System
- Specification：1850*1680*1210mm
- Trademark：Zunbo
- Origin：China
Description
Basic Info.
Model NO. Ljm-CNC-500 Voltage 380V Numerical Control CNC/Mnc Performance Classification MID-Range CNC Machine Tools Application Window Movement Method Automatic Feeding System Specification 1850*1680*1210mm Trademark Zunbo Origin ChinaProduct Description
Product Description:
Model: LJM-CNC-500This machine is used for cutting corner profiles of aluminum doors and windows, simple operation, reliable performance, advanced technology and easy maintenance

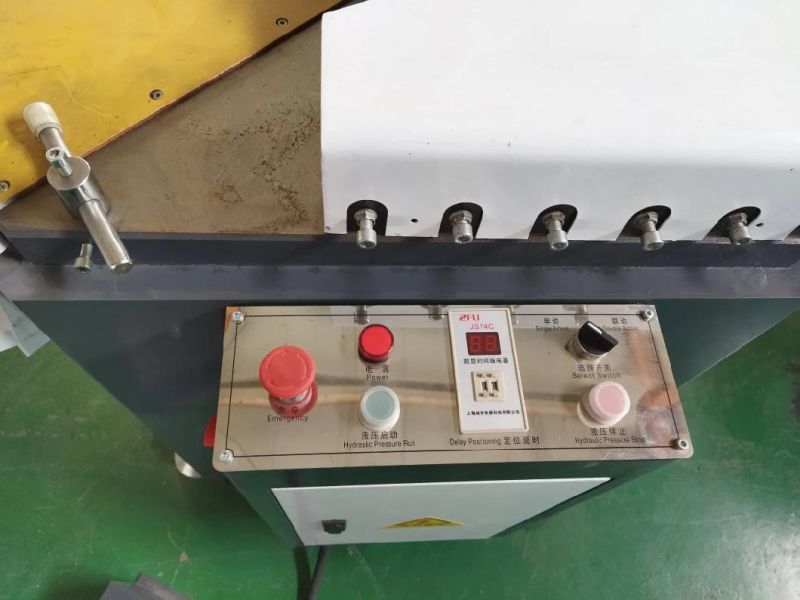

☆ Using Taiwan Delta CNC control system, the control system adopts man-machine interface, which is simple and easy to operate.
☆ The tool adopts cemented carbide saw blade, which has high cutting speed, high productivity and high machining accuracy
☆ The feed motion pair adopts linear motion bearings, which has low motion resistance and high precision
☆ The feeding mechanism adopts an automatic feeding system, which is stable, reliable and efficient
☆ High degree of automation. Work clamping and sawing advance and retreat are controlled by pneumatic system, which is safe and reliable.
☆ With automatic counting function, no tail cutting function.
☆ Only one clamping can realize continuous cutting of 6-meter corner profile
☆ Automatically save the number of segments that have been cut after power off
☆ Use micro spray cooling device to save the processing cost of doors and windows (optional)
Technical Parameter:
Electricity source: 380v 50Hz
Motor power: 2.2kw
Motor speed: 2800r/min
Working pressure: 0.6~0.8MPa
Automatic feeding length: 2~580mm
Cutting width and height: max140×240 mm
Sawing length: no limit when manual is selected
Saw blade feed speed: 0-3m/min
Saw blade specification: ø500×ø30×3.8×Z120
Flatness of cutting profile: ≤0.01mm
Verticality of cutting profile: ≤0.1mm
Cutting profile roughness: Ra12.5μm
