• Model NO.：LJZ-500
• Voltage：380V
• Input Power：2.2kw
• Air Pressure：0.5~0.8MPa
• Air Consumption：100L,Min
• Spindle Speed：3200r,Min
• Cutting Length：100~3500mm
• Cutting Width：≤130mm
• Cutting Height：≤300mm
• Cutting Angle：90° 45° 67.5°
• Saw Feeding Speed：0~3m,Min
• Transport Package：Plastic Cover or Wooden Cases
• Trademark：YUEFENG
• Origin：Jinan China
• HS Code：8459699000
• Production Capacity：100 Sets Per Month

Basic Info.

Model NO. LJZ-500 Voltage 380V Input Power 2.2kw Air Pressure 0.5~0.8MPa Air Consumption 100L/Min Spindle Speed 3200r/Min Cutting Length 100~3500mm Cutting Width ≤130mm Cutting Height ≤300mm Cutting Angle 90° 45° 67.5° Saw Feeding Speed 0~3m/Min Transport Package Plastic Cover or Wooden Cases Trademark YUEFENG Origin Jinan China HS Code 8459699000 Production Capacity 100 Sets Per Month

Product Description

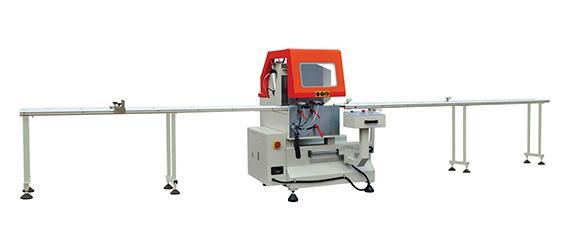

LJZ-500   Single Mitre Saw



Applies to cutting aluminium and PVC at 45 and 90 degree.
Uniform speed feeding and smooth motion due to airdraulic damping cylinder.
Imported linear guide rails result highly precise cutting.
Automatic protection guard results safe operation.

Technical Parameter:

Model	LJZ-500
Input voltage	380V 50Hz
Input power	2.2Kw
Air pressure	0.5~0.8MPa
Air consumption	100L/min
Spindle speed	3200r/min
Cutting length	100~3500mm
Cutting width	≤130mm
Cutting height	≤300mm
Cutting angle	90° 45° 67.5°
Saw feeding speed	0~3m/min
Saw blade standard	φ500×4.4×φ30×Z120
Overall dimension	1600×1700×1600mm

Our Advantage
Package


FAQ

1.Are your company a trading one or a factory?
Factory + trade (integration), 35 years' focusing on Upvc,Aluminum Window and Doors Equipment ,insulating
glass equipment and curtain wall equipment.

2.After an order is placed, when to deliver?
 Generally about 15 days,  If  we have inventory, we can arrange shipment within 5 days.
 Please be aware that our production lead times depend on specific items and item quantities.

3.What about the warranty with after - sales services?
 12 months warranty. Besides,we can help you to solve your problem freely;
After the warranty,the professional after-sale service team will provide perfect technical support,and help customers solve problems ,encountered while using our products.Handles guest problems and complaints in a professional and timely.

4.What about the services and product' quality?
 Each machine must be carried out 100% quality examination and test before shipment.
 And all machines meet ISO and CE certification.

5. We don't know the machine operation, what should we do?
 We can send engineer to your place, or we provide video training to show you how to install & operate, let  engineer help you online.
