• Voltage：380V
• Cutting Motor Power：1.5kw
• Motor Speed：2800r,Min
• Working Pressure：0.6-0.8MPa
• Cutting Width：Max.120mm
• Cutting Length：Max.220mm
• Cutting Angle：90°
• Transport Package：Wooden Box
• Specification：5670x1770x1840mm
• Trademark：SETH
• Origin：Jinan
• HS Code：8461500090

Basic Info.

Voltage 380V Cutting Motor Power 1.5kw Motor Speed 2800r/Min Working Pressure 0.6-0.8MPa Cutting Width Max.120mm Cutting Length Max.220mm Cutting Angle 90° Transport Package Wooden Box Specification 5670x1770x1840mm Trademark SETH Origin Jinan HS Code 8461500090

Product Description

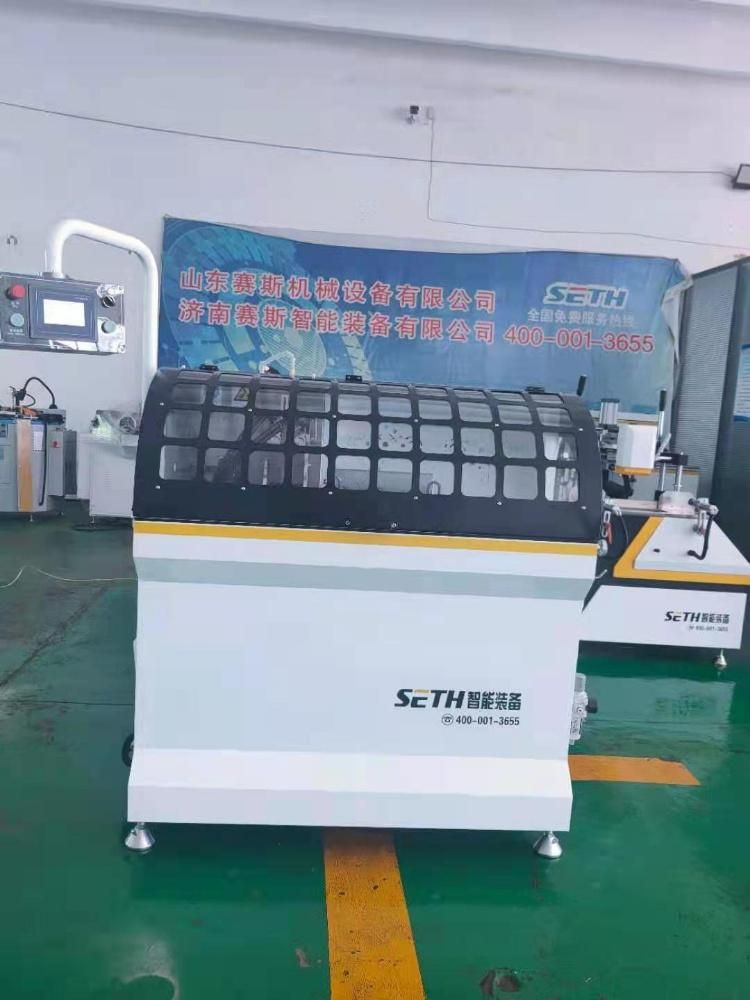

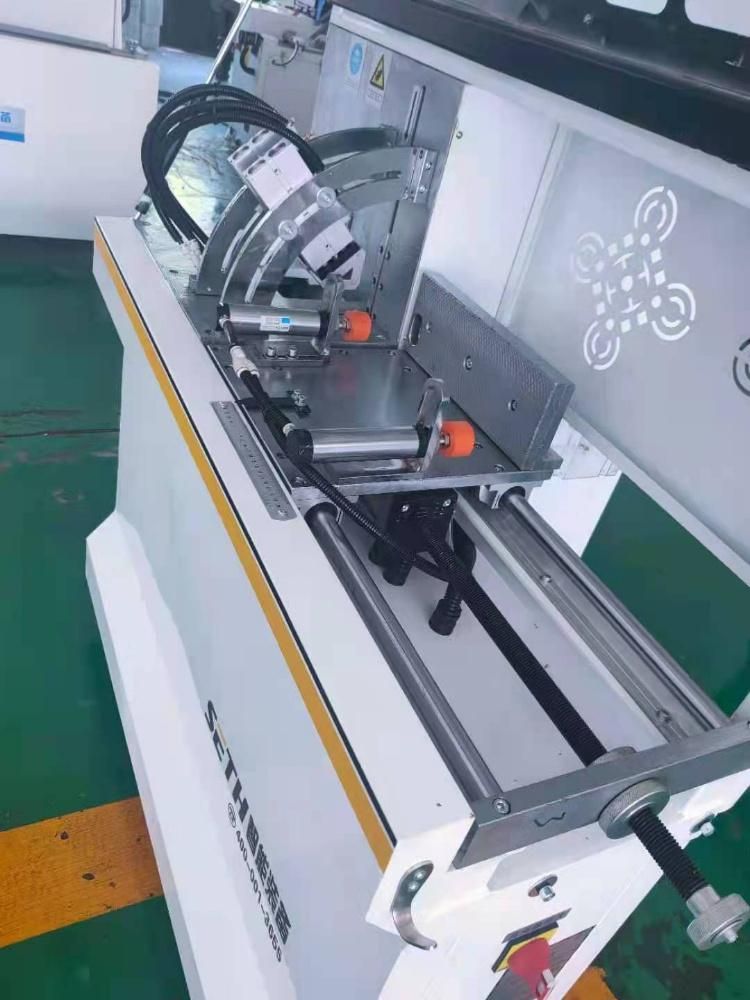

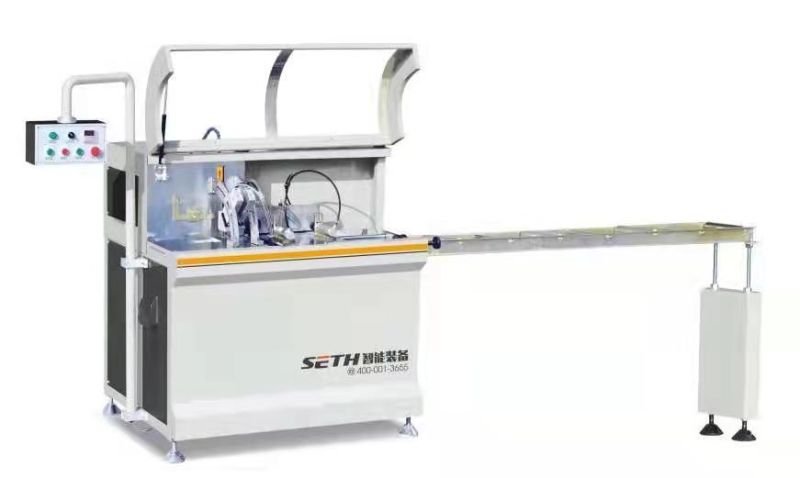

Corner Connector Automatic cutting saw for aluminum profile
1.Feature:
     a.This machine is used for cutting and blanking aluminum door and
       window corner profiles, with simple operation, reliable performance,
       advanced technology and easy maintenance.
    b.The cutting tool adopts cemented carbide saw blade, which has high
       cutting speed, high productivity and high machining precision.
    c.The feed motion pair adopts linear motion bearing, which has small
      motion resistance and high precision.
   d.The feeding mechanism adopts automatic feeding system, which is
      stable and reliable with high efficiency.
   e.With high automation, the advance and retreat of clamping and sawing are controlled
by pneumatic system, which is convenient to operate,  safe and reliable, and has high productivity.
   f. With automatic counting function.
   g.Continuous cutting of 6-meter angle profile can be realized only by  clamping once.
   h.Automatically save the number of cut segments in case of power failure.
   i. Adopt micro spray cooling device to save the processing cost of doors and windows (alternative).

2.Technical Parameters

o.Power supply	380V/50Hz
Power supply	1.5kW
Motor speed	2800r/min
Working pressure	0.6~0.8MPa
Auto feeding length	2~180mm
Cutting width	Max. 120mm
Cutting height	Max. 220mm
Cutting length
Cutting angle	90°
Feeding speed	0~3m/min
Saw blade specification	Ф450×3.8×Ф30 Z=120
Overall dimension	5670×1770×1840mm
weight	450kgs

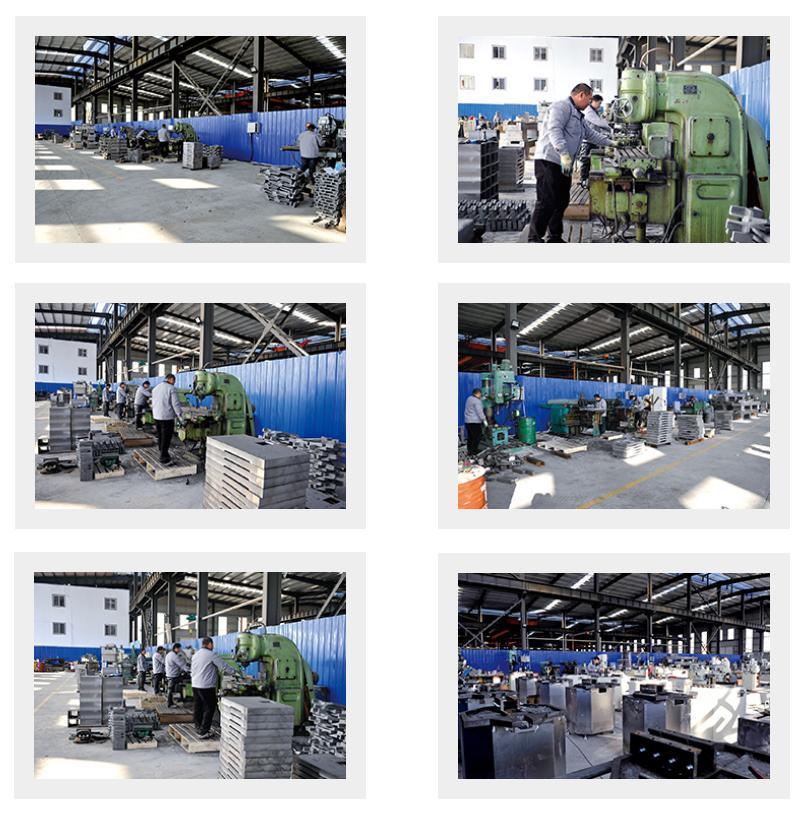

3.Company profile:

Jinan SETH Intelligent Equipment Co.ltd.

Jinan SETH intelligent equipment co., ltd. specializes in the production of aluminum,PVC,
upvc window and door machine,curtain wall and hollow glass processing machine equipment
 that can meet the needs of different clients, and can also be customized according to
customer requirements of different grades of products.
The company has rich experience in production and more than 10 national patents and
passed ISO9001,SGS,CE certifications, excellent product design and development engineers,
skilled production engineers, experienced production management team and after-sales service
 that providing you with a strong guarantee.

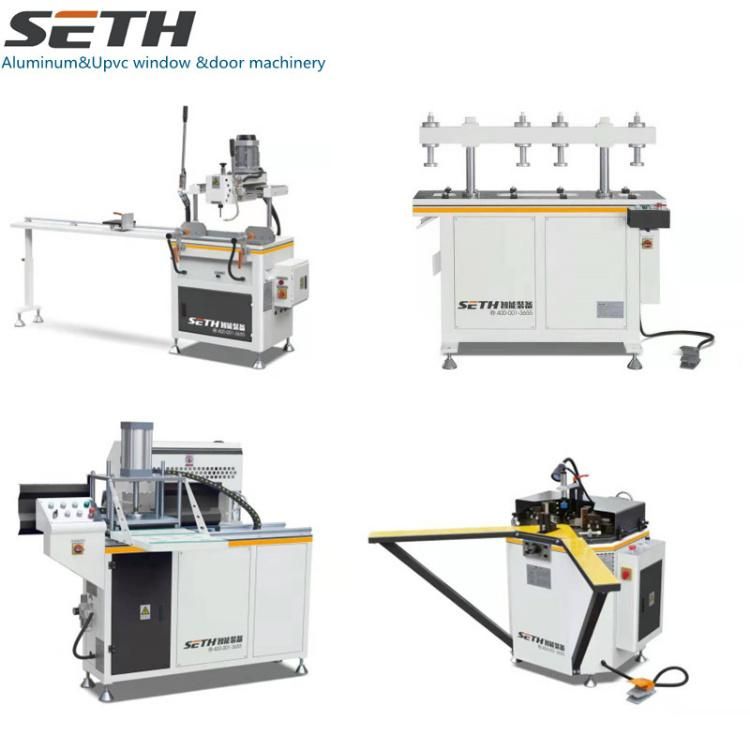

our main products including aluminum&,PVC,uPVC profile machining center, saw machine
,milling machine,welding machine,corner cleaning machine.corner crimping machine,
punching&drilling machine.
our main products including aluminum&PVC,uPVC profile machining center, saw machine ,
milling machine,welding machine,corner cleaning machine.corner crimping machine,
punching&drilling machine.
Customer is the foundation, the company in line with the " quality first, customer first" principle,
Please join hands with SETH to lead intelligence.

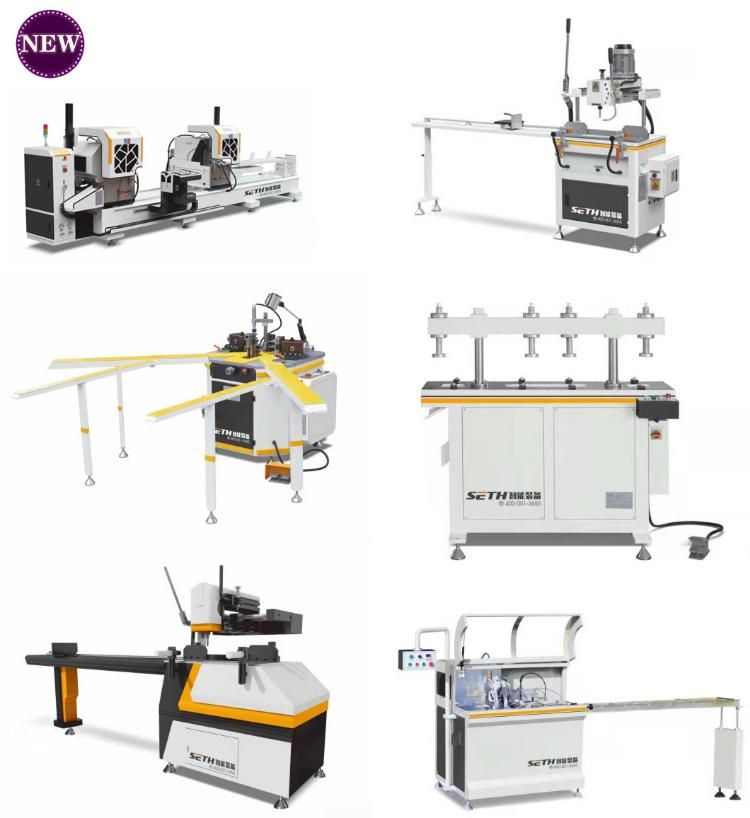

4.Hot selling:

5.Package and delivery:

6.Oor Advantages:


7.FAQ:
   Q: Is SETH a manufacturer or trading company?
   A: We are the manufacturer and seller at the same time.SETH is one PROFESSIONAL
window machine       company in china.

  Q: SETH's main products?
  A: Aluminum window machines: CNC cutting center, double miter saw, end milling machine,
CNC milling  machine,   aluminum punching machine, end milling machine, copy router and
corner connector saw, etc; Wood window machines: wood saw, wood window frame machine,
vertical & horizontal drilling machine, dovtail making machine, wood planner, and tenon making machine, etc.
Q: SETH's  after-service?
A: 1option:
     we have engineers to install the machines and train your workers.
    Our customers should pay for our engineer's round trip tickets, board and lodging during testing and teaching,          subsidy USD70 per day.
   2 option:
    On-line Service and All documents and videos for Installation and train operation for free.
