• Model NO.：QT4-18
• Model：Qt4-18 Brick Making Machine
• Host Machine Power：21.8 Kw
• Mold Period：15 Seconds
• Rated Pressure：21MPa
• The Size of Pallet：850*550*20mnm
• Weight of Block Machine：5.4tons
• Mixer Model：Js500 Concrete Mixer
• Labor：5-7 Workers
• Vibration Force：40-50kn
• Block Type：Hollow Soild Paving Block
• Factory Area：1000-1500m2
• Standard Hollow Block：400*200*200mm
• Pallet Number：1500 PCS
• Color：Optional
• Water Consumption：5-6 Tons
• Transport Package：Nude in Container,LCL
• Specification：3700(L)*1700(W)*2300(H)mm
• Trademark：XINMING
• Origin：Shandong. China
• HS Code：8474802000
• Production Capacity：500PCS,Month

Basic Info.

Model NO. QT4-18 Model Qt4-18 Brick Making Machine Host Machine Power 21.8 Kw Mold Period 15 Seconds Rated Pressure 21MPa The Size of Pallet 850*550*20mnm Weight of Block Machine 5.4tons Mixer Model Js500 Concrete Mixer Labor 5-7 Workers Vibration Force 40-50kn Block Type Hollow Soild Paving Block Factory Area 1000-1500m2 Standard Hollow Block 400*200*200mm Pallet Number 1500 PCS Color Optional Water Consumption 5-6 Tons Transport Package Nude in Container/LCL Specification 3700(L)*1700(W)*2300(H)mm Trademark XINMING Origin Shandong. China HS Code 8474802000 Production Capacity 500PCS/Month

Product Description

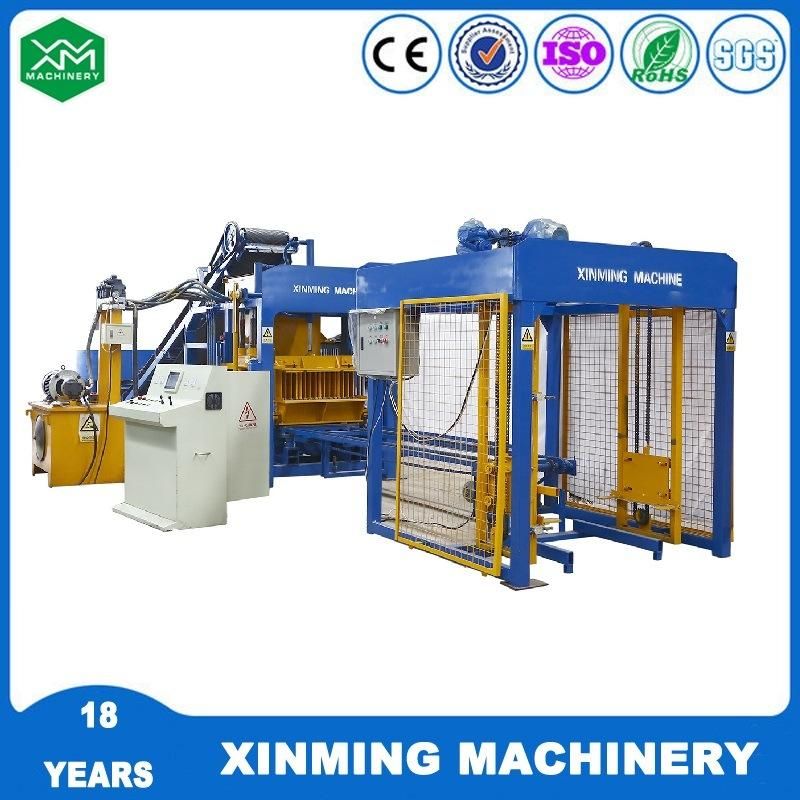

QT4-18 Automatic Cement Solid Brick Machine Hydraulic Hollow Interlocking Block Making Machine

Features & Advantages for QT4-25 Automatic Concrete Cement Brick Making Machine

<1.Capacity: QT4-25 block making machine,short moulding period,high capacity in a short time.Small investment,big capacity.

<2.Motor: Motor type has the features of stablize,the power brand vibrator well known brand.Long machine life.

<3.Mould: QT4-25  brick machine is designed to match the various coustomer requirements,it can make different prodouts by changing mould.It very easy to maintance.

<4.Labor: Thanks to the full automatic control system,labor is reduced.

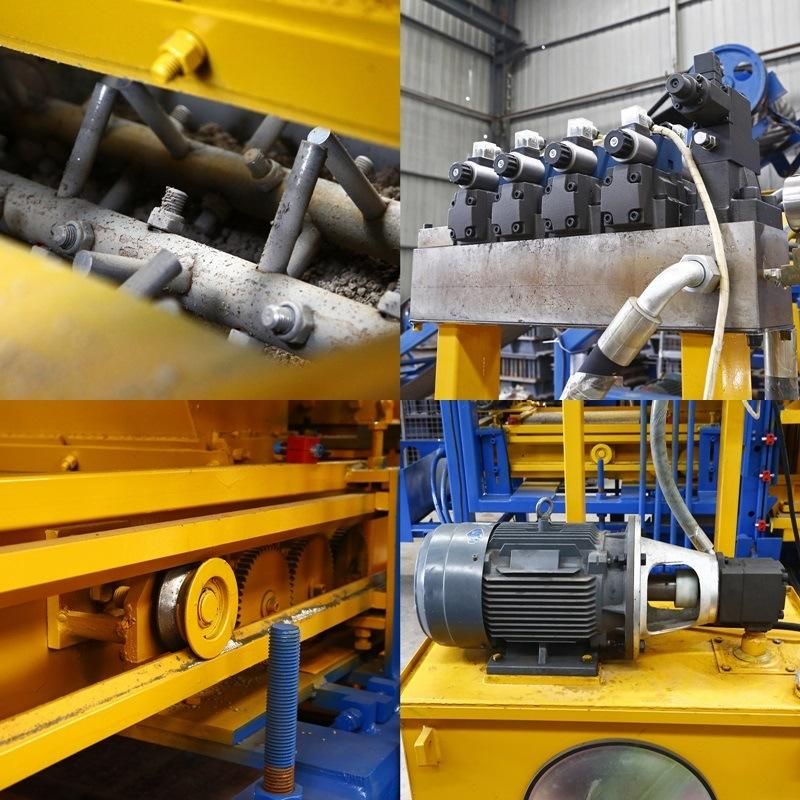

Detail Parts Show

Every small part is tested by our workers for strict quality. Our machines are presented to each of our customers with the best quality and the most beautiful attitude.

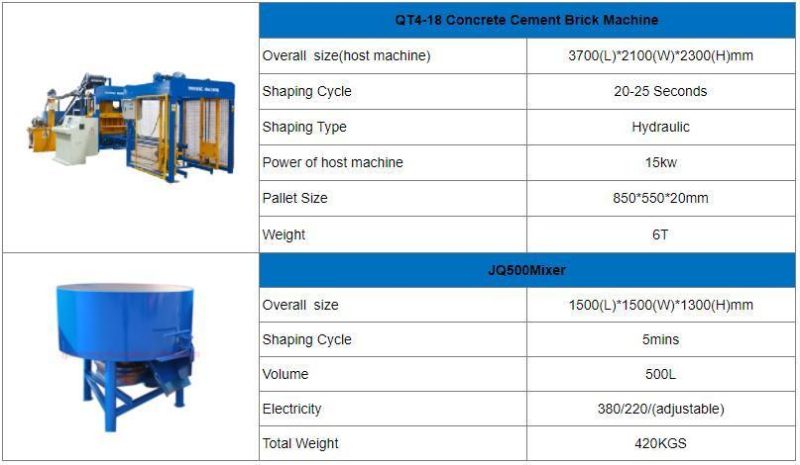

Main Technical Specification of QT4-18 Concrete Cement Hollow Brick Making Machine


1. Maintance: QT4-18hollow solid block making machine is easy in maintance. please clean the mixer and mold after everyday work and fasten screws and add lubrication oil to moving parts before every day work.

2. Install Service: We will ship machine in whole one. you only connect elecctricity line with block machine, the machine can work. the manual and installtion video is avaible.

3. Guarantee Time:  One year. we will supply free accessories with machine for one year use. and technical service and spare parts are avaible in all time.

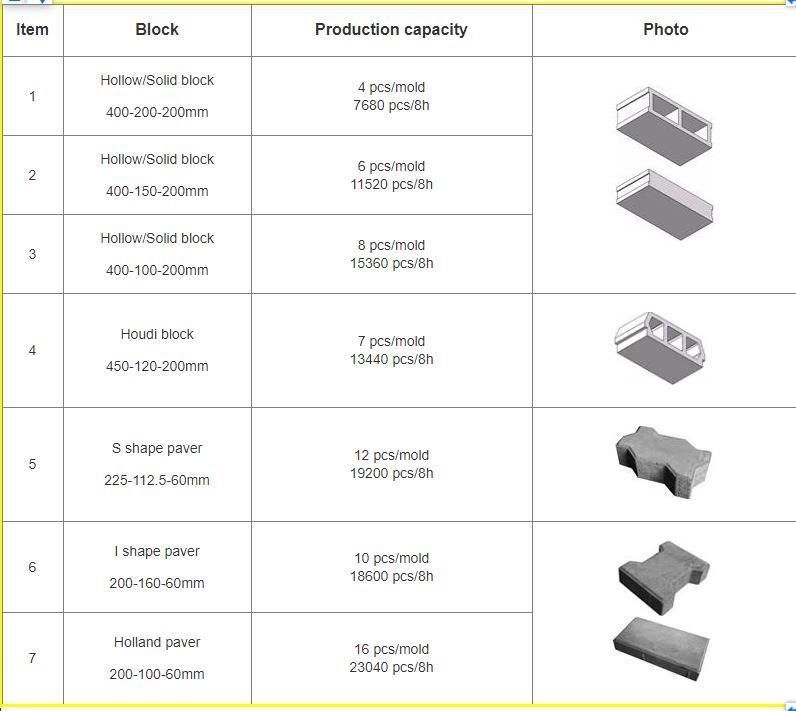

Production Capacity

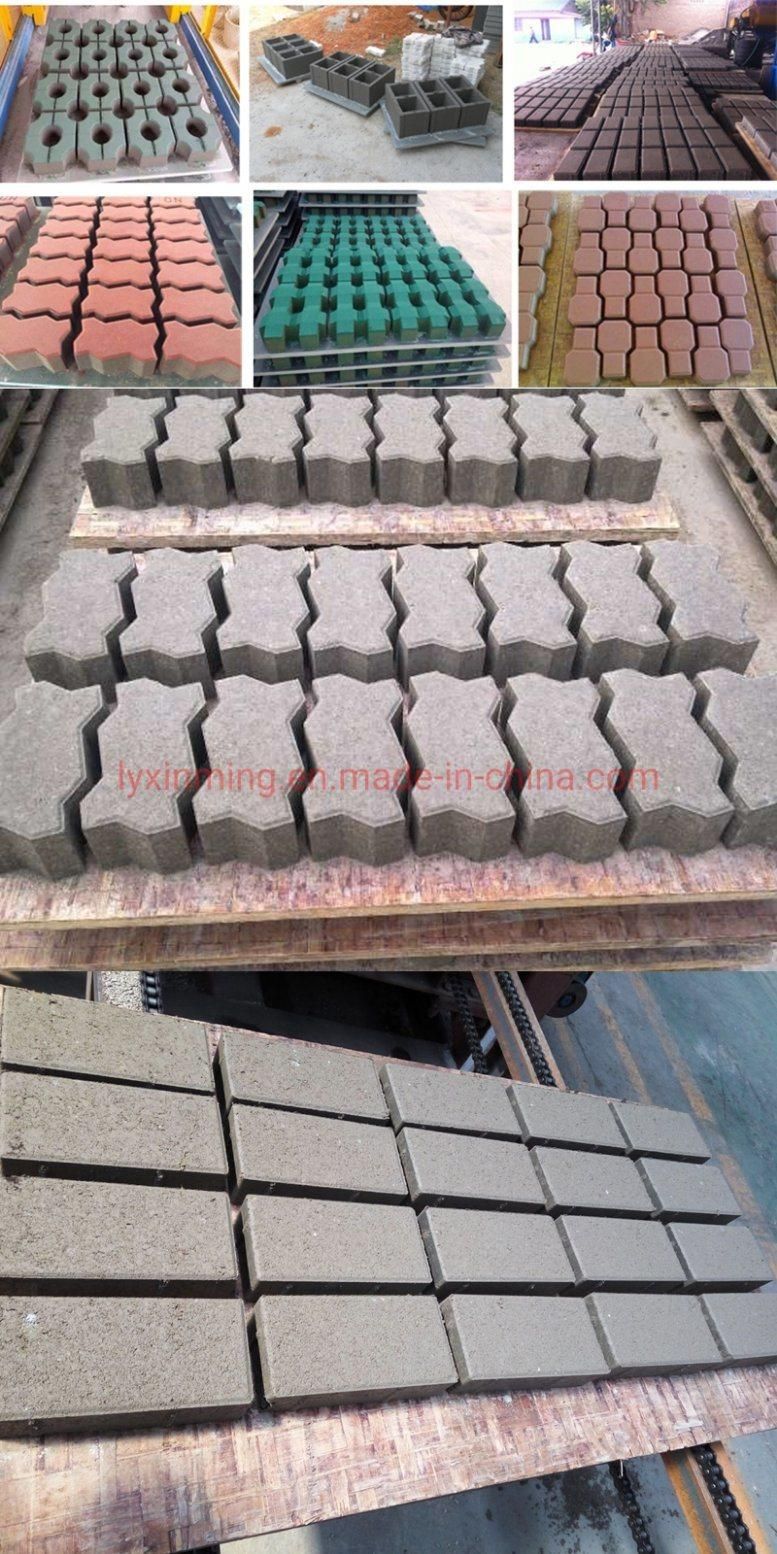

QT4-18 Automatic Concrete Block Making Machine is multipurpose, especially, the mold is changable.  It can produce different size and shape of blocks by changing moulds. Such as concrete hollow block, soild block, colorful paver brick, curbstone etc.

Workers Number:  5-6 Workers

 Two workers to load material into Mixer

 One Workers to operate block machine

 One Workers to load pallet into pallet box of block machine

 One or Two workers to carry fresh blocks to curing size

Factory Area : 1000-1500M2
Shelter Area; 200M2

Pallet Number for QT4-18 automatic block making line: 1500 pallet

Xinming Machinery Factory supply bamboo pallet, fiber (GMT) pallet and PVC pallet. We recommend you the Fiber Pallet.

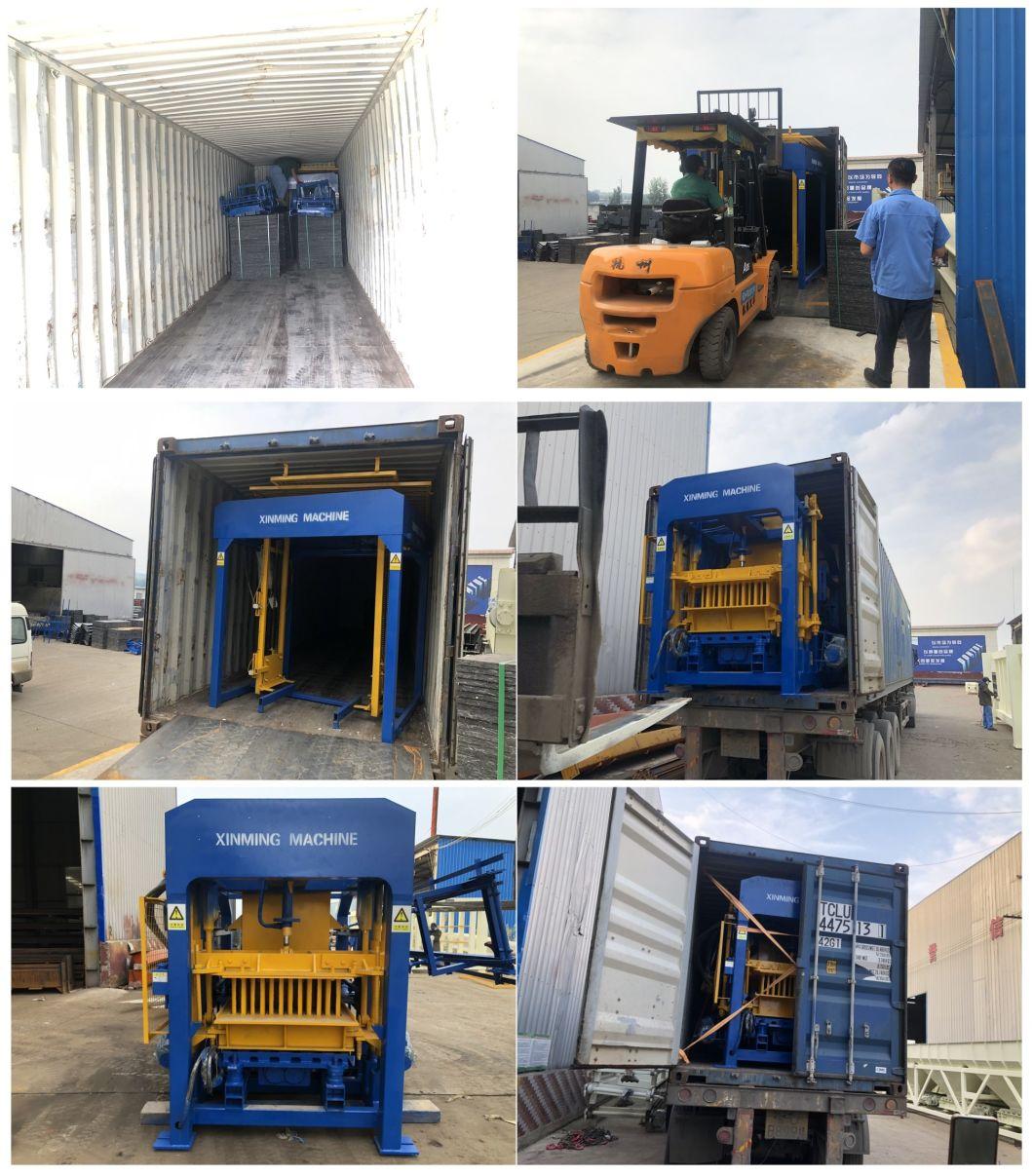

Packing&Shipping

QT4-18 is one of our best-selling machines. This type of concrete block making machine is a fully automatic hydraulic vibration machine with high output, low power and affordable price.
