• Model NO.：QT12-15
• Capacity：400*200*200mm About 22400PCS Per Shift
• Mould Capacity：400*200*200mmmm Make 12 Pieces Per Mould
• Weight：Around 8000kgs
• Voltage：Customized Your Local Voltage
• Moulding Cycle：15 Seconds
• Warranty：1 Year
• Pressure：Hydraulic
• Brick Type：Hollow, Solid, Paver and So on
• Transport Package：40 Feet High Container with Bulk Package
• Specification：9350*2520*2950mm
• Trademark：Shiyue
• Origin：Shandong Province, China
• HS Code：8474802000
• Production Capacity：2000 Sets Per Year

Basic Info.

Model NO. QT12-15 Capacity 400*200*200mm About 22400PCS Per Shift Mould Capacity 400*200*200mmmm Make 12 Pieces Per Mould Weight Around 8000kgs Voltage Customized Your Local Voltage Moulding Cycle 15 Seconds Warranty 1 Year Pressure Hydraulic Brick Type Hollow, Solid, Paver and So on Transport Package 40 Feet High Container with Bulk Package Specification 9350*2520*2950mm Trademark Shiyue Origin Shandong Province, China HS Code 8474802000 Production Capacity 2000 Sets Per Year

Product Description

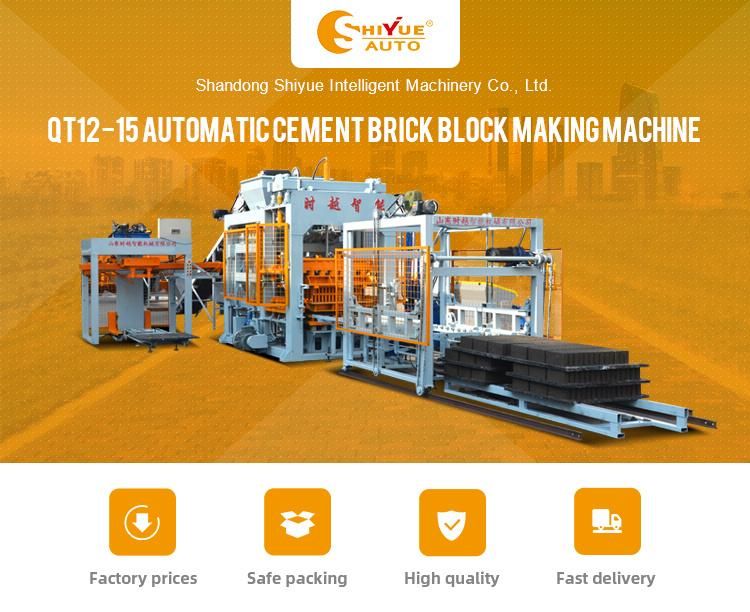

QT12-15 Automatic Cement Hollow Block Machine Price main parameters and feature




1. Super-strong steel structure made of extensive imported original parts, ensuring more stability and reliability for the concrete block machine body.

2. The whole process uses a PLC aptitude control and dialogue system of human-machine interface, easy to analyze the chance signal, ensure the best operation effect.

3. High-efficient and super-strong vibration system, computer-control flow pressure of the hydraulic system, realize vertically synchronous vibration, frequency conversion, and braking, with synthetic output compounded with double vibration sources, thus greatly increase product compactness and mould-box service life.

4. The cloth system adopts semi-closed screen reticular rotational feeding unit to feed materials forcedly, with evenness and even speed, ensuring product intensity.

5.Fitted with special hydraulic loading unit, readily realize mass and automatic production, saving a great deal of human power, maintenance field, and circulating fund investment


Overall Dimension	9350*2520*2950mm
Rated Pressure	21MPa
Main Vibration Form	Platform Vibration
Vibration Frequency	2800-4500 ( r/min)
Pallet Size	1350*850mm
Molding cycle	15-20s
Overall Power	45.7kw
Vibration Force	45KN
Total Mass	8T
Demolding method	Hydraulic
Factory Area	3000m2
Applied Products	Concrete blocks, hollow/solid blocks, pavers, interlocking blocks , curbstone, colored pavers ,etc.
Raw Material	Crushed stone, sand , cement, dust, and fly ash, gravel, slag, and other raw material etc.

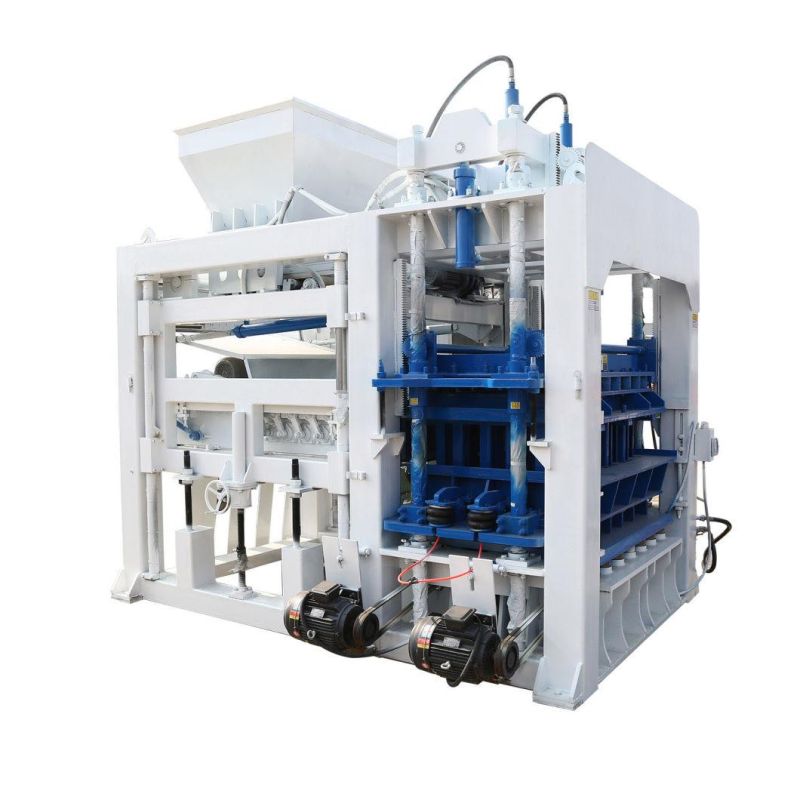

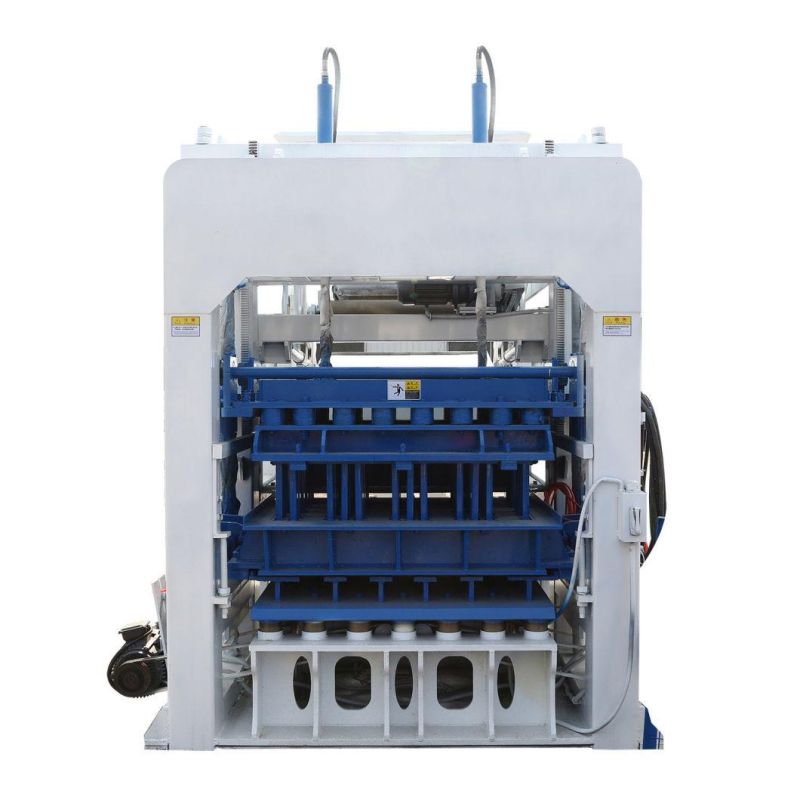

QT12-15 concrete cement automatic hollow bricks machine show

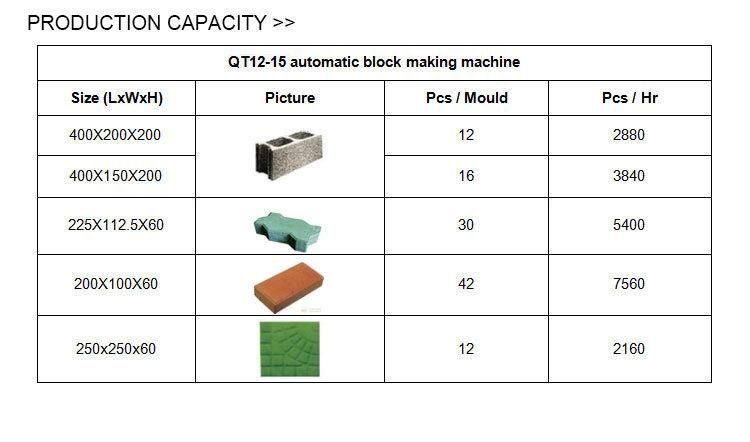

common brick capacity

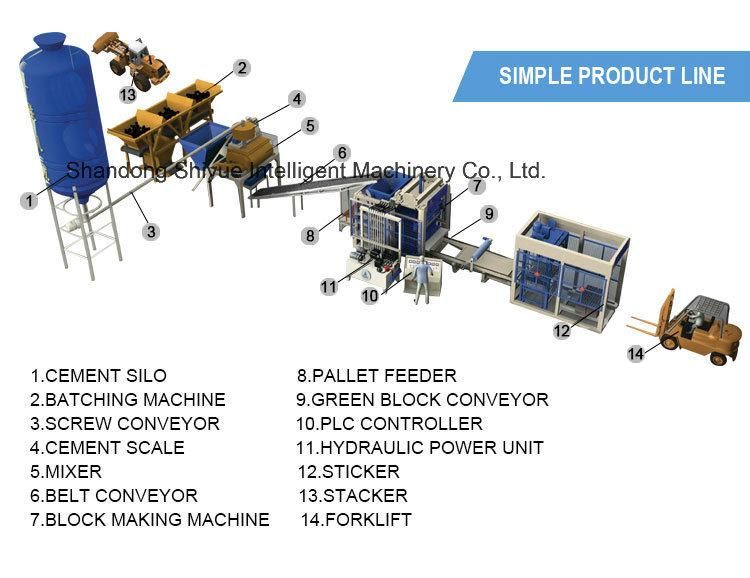

production line


FAQ
1> Is this block machine suitable for us to use?
Answer: if you want to make common bricks and Medium capacity, this model is suitable for you, if no, please tell us what kind of bricks do you want to make? or what capacity do you prefer?Then the most suitable model can be recommended to you.
2>Which industry did this block machine usually be used in?
Answer: Interlocking bricks, Paving bricks,Solid bricks,etc
3>How to use the block machine?
Answer: We will send the operating manual to you after you purchase the machine, for bigger machine, we can offer engineer fly to your side for installation and training your workers.
4>How about the after sale service of block machine?
Answer: 1 year guarantee for the whole machine (without the spare parts),good machine no need after sale service,we keep the superior quality machine for you.
5>what's your payment term
our common payment is 30% deposit by T/T before arrange the machine production,70% balance before the delivery,if other payment term,we can negotiation.
