• Model NO.：QT12-15
• Power：70.5kw
• Pallet Size：1350X900mm
• Vibration Force：120kn
• Color：Blue or Customized
• Name：Qt12-15 Cement Porous Paver Brick Machine
• Transport Package：Container
• Specification：9350x2520x2950mm
• Trademark：HF
• Origin：Shandong, China
• HS Code：8474802000
• Production Capacity：20000PCS,Day

Basic Info.

Model NO. QT12-15 Power 70.5kw Pallet Size 1350X900mm Vibration Force 120kn Color Blue or Customized Name Qt12-15 Cement Porous Paver Brick Machine Transport Package Container Specification 9350x2520x2950mm Trademark HF Origin Shandong, China HS Code 8474802000 Production Capacity 20000PCS/Day

Product Description

QT12-15 Concrete Block Making Machine /Cement Paver Brick Machine/Porous Block Machinery/Brick Molding Machine   Siemens brand PLC control system / Siemens Motor / Omron Switch / International Standard Steel / Manganese steel mold

 Product Introduction

1. QT12-15 Cement Porous Paver Brick Machine which is a special-purpose equipment for making building block making machine. The material of this machine can be flyash, slag, gangue or the others industrial waste, river sand, gravel, cement etc. Makes different sizes of hollow blocks, porous blocks, curbstone, pavement blocks, grass blocks, slope-protecting blocks, ring-tree blocks etc. If add color machine, it can make layering blocks.

2. QT12-15 Cement Porous Paver Brick Machineadopts gantry frame type structure, made by super super steel,strong and shock resistant,very reliable.The design adopts the driving type material storage mode with independent foundation,to send the material when it is needed at chinablockmachine.en.made-in-china.com wave swing type of material feeding device,with good feeding effect.Cartridge type welding mold,adopts qualified manganese steel by carburizing and quenching.no transformation and no damage after using 100000times.It can make the simple production line with PL1200 batching machine,JS500or JS750 mixer,8m conveyor belt and stacker.

3. This equipment is mechanical hydraulic PLC controlled synthesis technique equipment. Its characteristic is high efficient, easy-operated and easy-maintained. Block molding mainly by hydraulic, machinery as sideline, vibrate and press to finish molding blocks. The compressive strength of all blocks more than 21 MPa, compactness is high, impermeability and freeze resistance is better, and excellent capacity of sound insulation, heat insulation, insulation.external dimensions are precise.

Technicals

Model	QT12-15
Rated pressure	21Mpa
Dimension	9350*2520*2950mm
Forming Cycle	15-20s
Vibration form	Platform vibration
Weight	12500kg
Power	70.5kw
Vibration force	120KN
Working area	2000 sq.m
Pallet size	1350x900mm

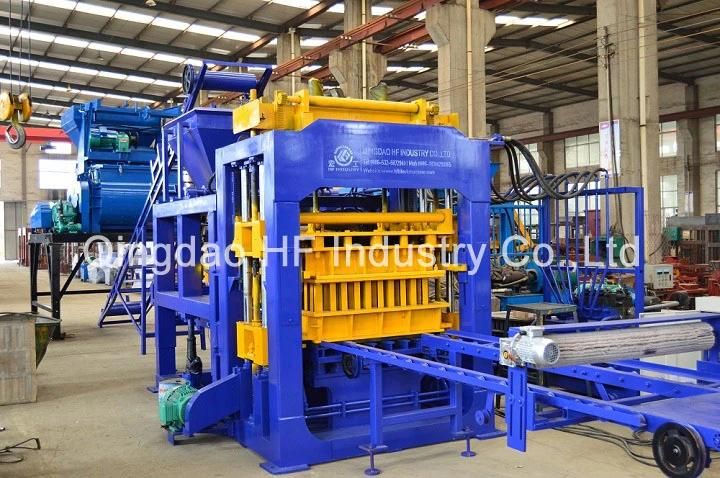

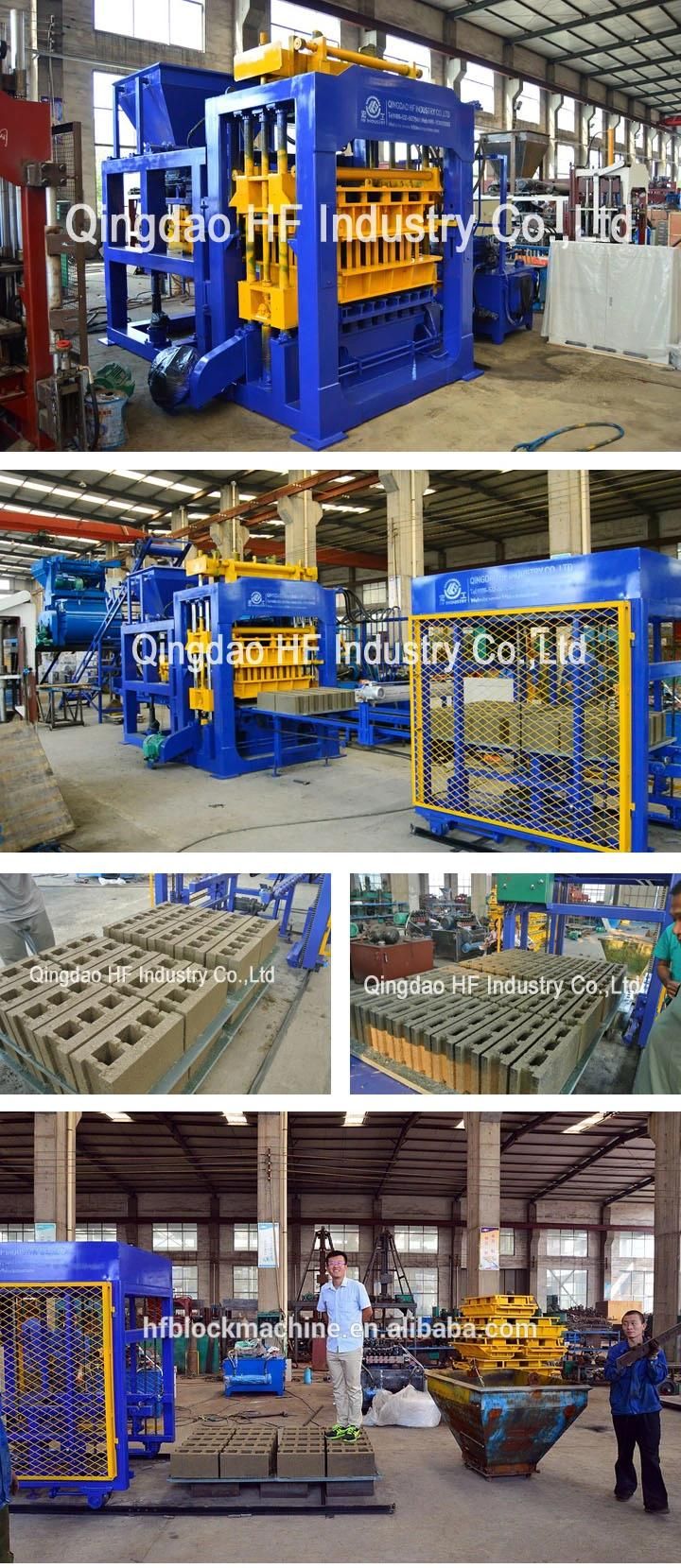

Machine pictures




Block samples



Loading

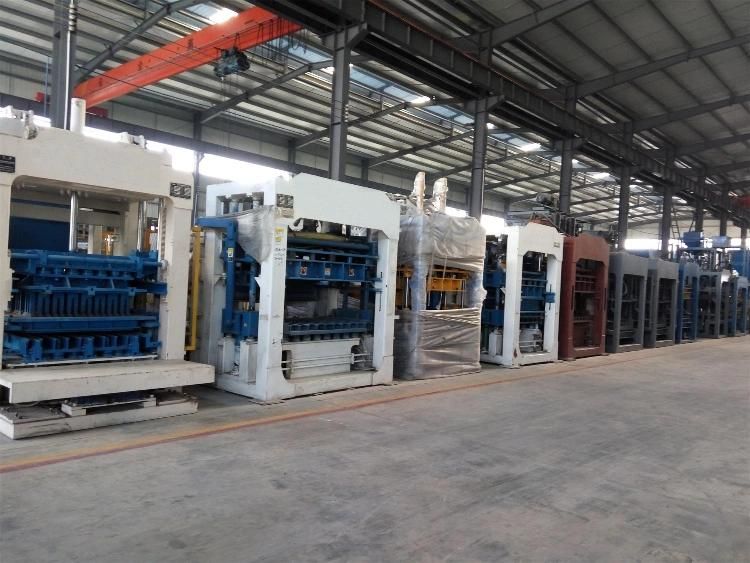

Our factory
QINGDAO HF INDUSTRY CO.,LTD is the professional supplier and exporter for block making machine and brick machine. For the past 26 years, our company has been manufacturing a wide selection of concrete block making machines. We offer automatic and semi-automatic block production lines for making hollow/solid /paver/curbstone blocks. In addition to these, we are also a leader supplier of block pallets for concrete brick production.
Quality is the core of our company. Advanced inspection equipment and stringent quality control tests make us pass ISO9001:2008 certification.

We implement "Three-Guarantee" installation and debugging for free, focusing on quality and after-sales services. Our company also supplies training services to clients.Our products have been exported to Africa, South America, Middle East,South Asia,East Europe,Russia and so on.
