• Model NO.：CLXF-CNC-3000
• Input Power：7kw
• Rotary Speed：18000r,Min
• Air Pressure：0.5-0.8MPa
• Dia. Drilling Cutter：Dia.5, Dia 8
• Max. Processing Width：300mm
• Air Consumtion：20L,Min
• Machine Dimension：4400*1400*1700mm
• Weight：1200kg
• Transport Package：Wooden
• Specification：3000mm
• Trademark：Truepro
• Origin：China
• HS Code：846510
• Production Capacity：500sets,Year

Basic Info.

Model NO. CLXF-CNC-3000 Input Power 7kw Rotary Speed 18000r/Min Air Pressure 0.5-0.8MPa Dia. Drilling Cutter Dia.5, Dia 8 Max. Processing Width 300mm Air Consumtion 20L/Min Machine Dimension 4400*1400*1700mm Weight 1200kg Transport Package Wooden Specification 3000mm Trademark Truepro Origin China HS Code 846510 Production Capacity 500sets/Year

Product Description

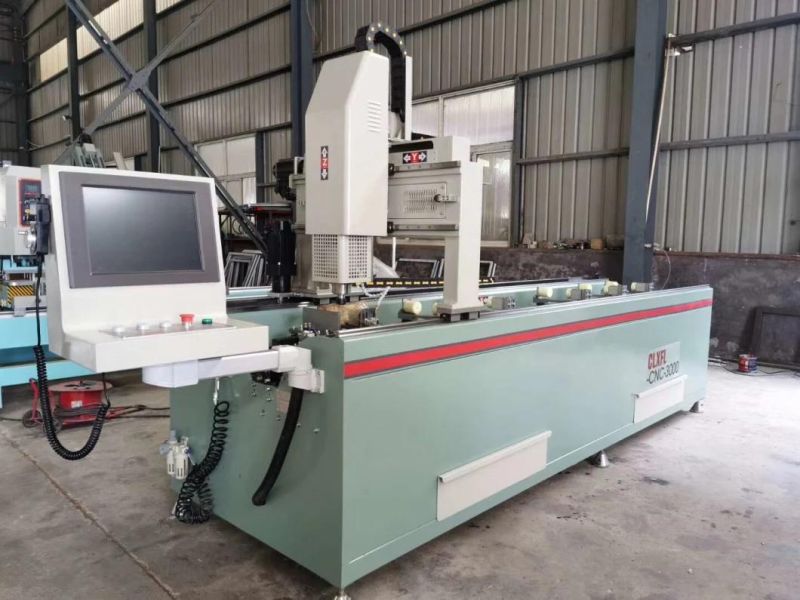

3 axis machining center CNC milling and drilling aluminium machinery for windows and door Machine feature:

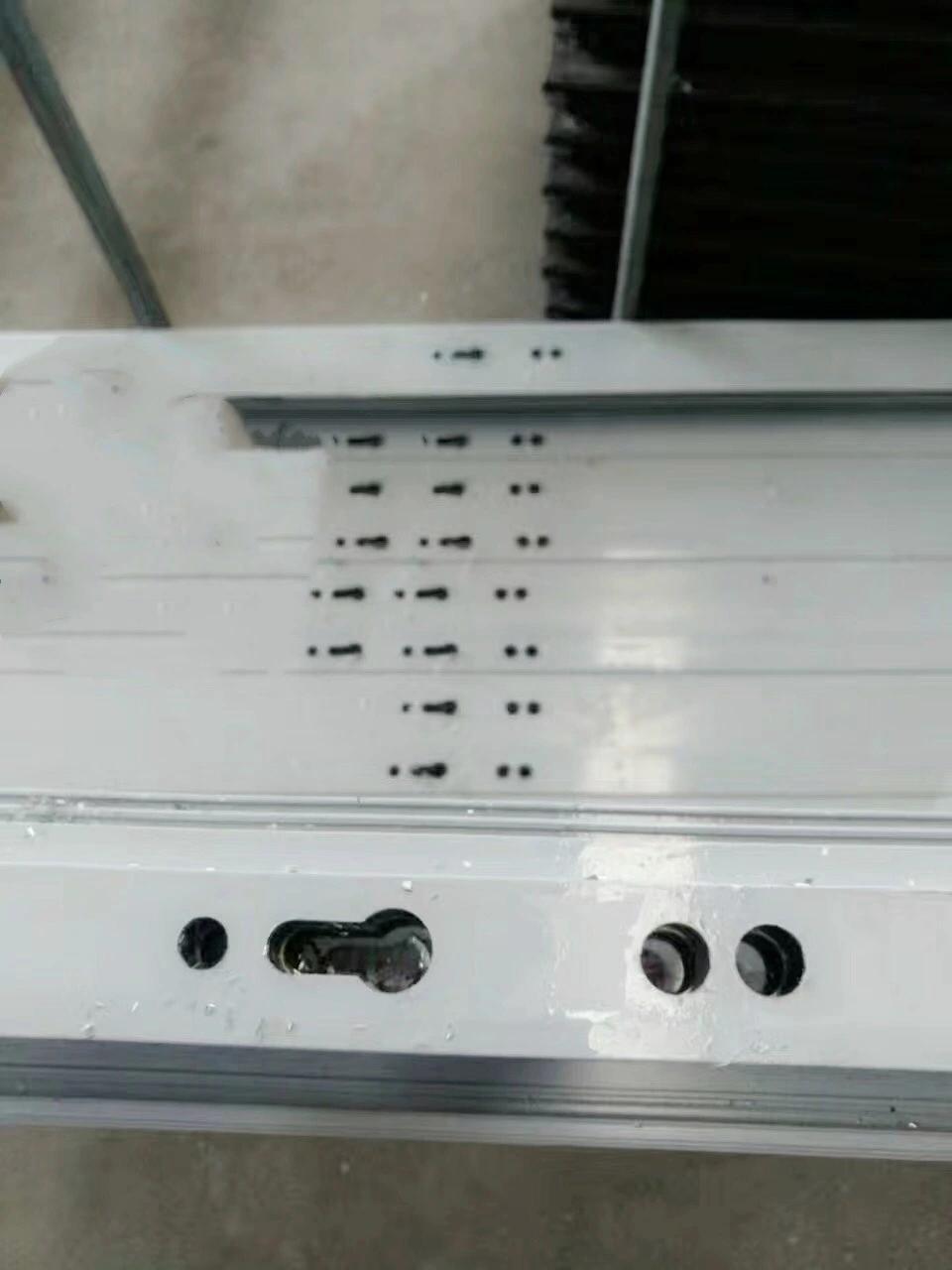

1. Used for Aluminumn profile &PVC profiles' shape holes,round holes ect. drilling &milling.

2. Adopts standard Triaxial System,easy operation.

3. Adopts electric spindle with high precision,good security,high stability.

4. X,Y and Z Axis adopts high precision ball bearing conveyor,runs stable.

5. ISO International Standard G code prodramming,easy to operate.

Parameter:

X-axis running speed 0~60m/min
Y-axis running speed 0~15m/min
Z axis running speed 0~15m/min
X-axis journey 3000mm

Y-axis journey 300mm
Z axis journey 300mm
Processing size 160*160*3000mm
Work Position: 90°0°-90°three side
Tool Clamp ER25-dia8dia10
Air source 0.5~0.8MPa
Power Supply 380V/50Hz
Total power 7kw
Dimensions (length × width × height) 4400*1500*1800mm
Net Weight 1200kg

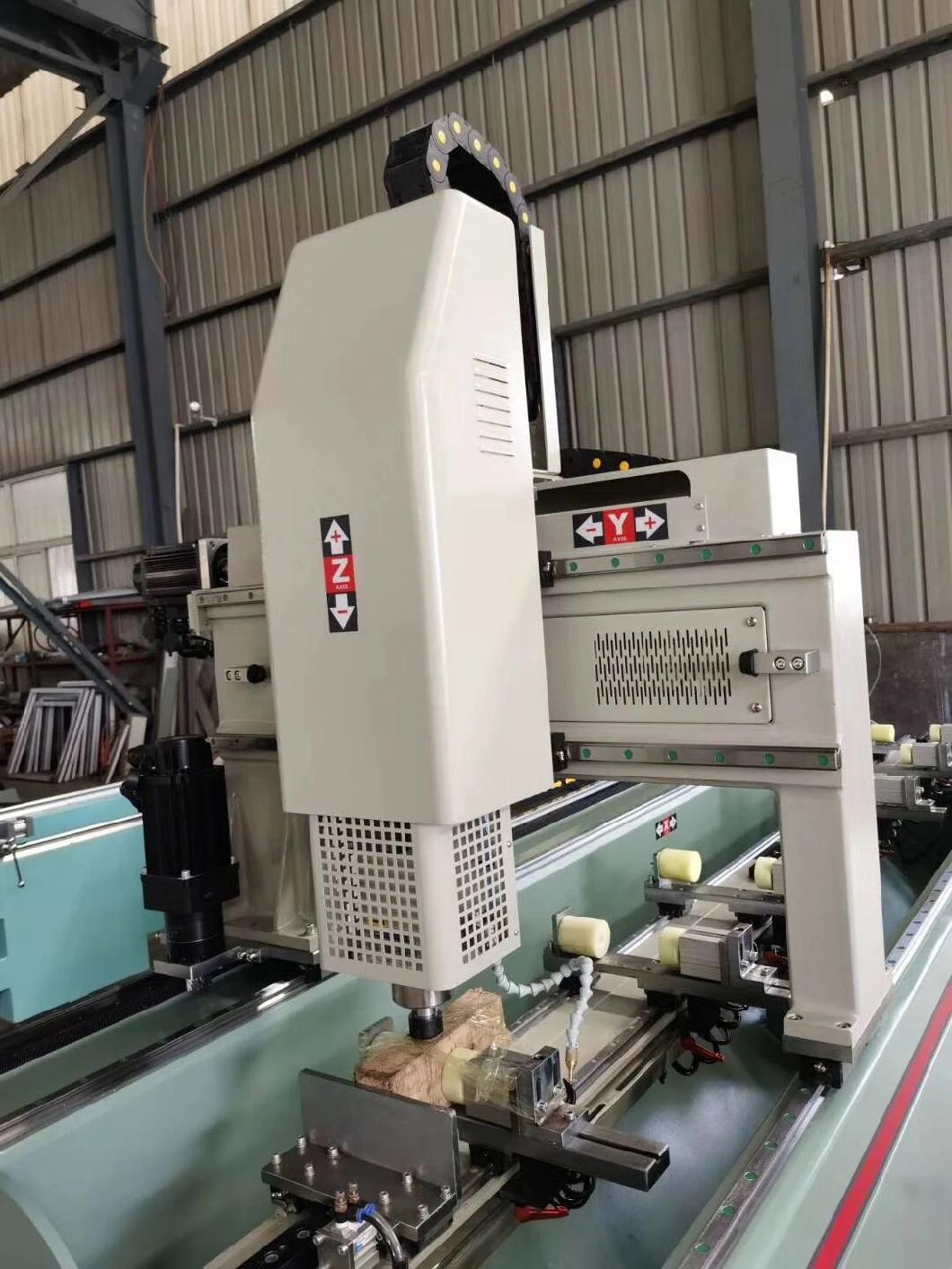

Machine details:



Jinan Truepro is a manufacturer of window machine, insulating glass processing machine and curtain wall machine with
well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish
designs, our products are extensively used in building trade and other industries. Hope we can cooperate with you.
We believe that "IT'S THE BEST THAT FITS MOST."
Every machine could be customized to meet your special requirement.




1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.

2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can dispatch our engineers to repair your machines

3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
All of our engineers have passport.

4. If I make Aluminum window and door, how many basic machines do i need?
1).double head cutting saw
2).Lock hole copy milling machine
3).End milling machine
4).Automatic Corner connector automatic cutting saw
5).Single head Corner combining machine
