Lzj-120 Synchronous CNC Corner Combining Machine of Aluminum Doors and Windows for Machinery Production Line Corner Machine

Shandong Zunbo CNC Equipment Co., Ltd.
  • After-sales Service:Lifetime Maintenance
  • Warranty:1 Year, 1 Year
  • Condition:New, New
  • Certification:ISO, GS, CE, RoHS, ISO 9001
  • Automatic Grade:Automatic
  • CNC or Not:CNC

Base Info

  • Model NO.:Lzj-120
  • Voltage:380V
  • Process Usage:Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
  • Numerical Control:CNC,Mnc
  • Performance Classification:MID-Range CNC Machine Tools
  • After-Sales Service:Lifetime Maintenance Service
  • Application:Window
  • Control Method:Hydraulic System Control
  • Specification:1300*1200*1300mm
  • Trademark:Zunbo
  • Origin:China

Description

Basic Info.

Model NO. Lzj-120 Voltage 380V Process Usage Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools Numerical Control CNC/Mnc Performance Classification MID-Range CNC Machine Tools After-Sales Service Lifetime Maintenance Service Application Window Control Method Hydraulic System Control Specification 1300*1200*1300mm Trademark Zunbo Origin China

Product Description

Product Description:

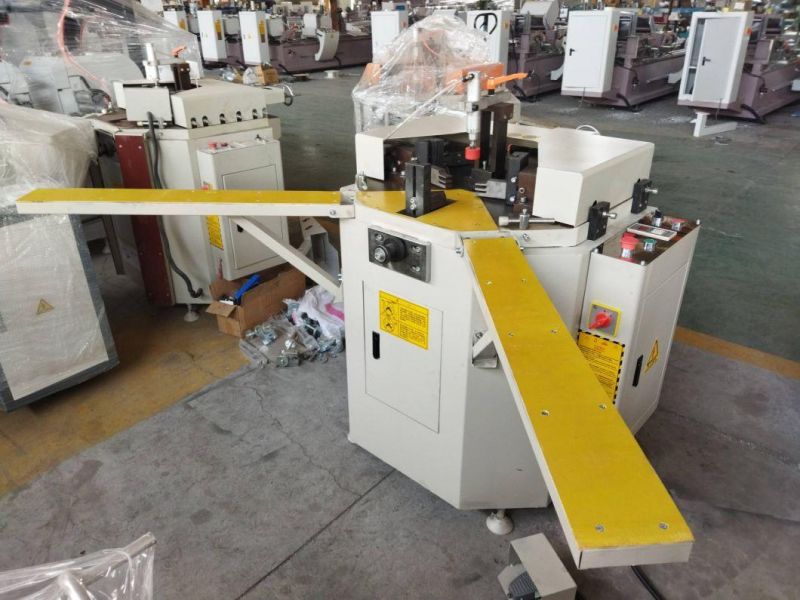

Model: LZJ-120
Suitable for 90° connection of corner structure aluminum doors and windows.
The left and right punches adopt rigid synchronous feed to avoid the useless deformation of the corner assembly process and make the connection of the window corners stronger.

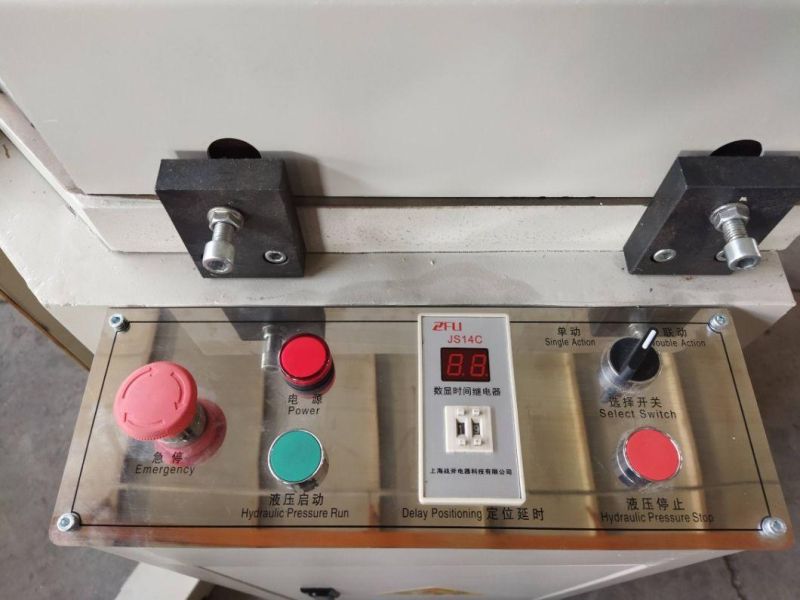

The power is controlled by the hydraulic system to make the work stable and reliable.


Technical Parameter:

Power Supply: 380 V  50 Hz
Input Power: 1.5 kW
Air Pressure: 0.5-0.8 Mpa
Air Consumption: 20 L/min
Rated Oil Pressure: 16 Mpa
Oil Tank Volume: 20 L
Corner Combining Cylinder Stroke: 98 mm
Total Angular Pressure: 48 kN
