Trapzoidal Roofing Profile Roll Forming Machine Manufacturer Roll Former
HEBEI XINNUO ROLL FORMING MACHINE CO., LTD.- Tile Type：Colored Steel
- Certification：CE, ISO
- Condition：New
- Customized：Customized
- Usage：Roof, Wall
- Transmission Method：Electric
Base Info
- Model NO.：KXD-1000
- Transport Package：Naked
- Specification：7000× 1400× 1500mm
- Trademark：KEXINDA
- Origin：China
- Production Capacity：500
Description
Configurations

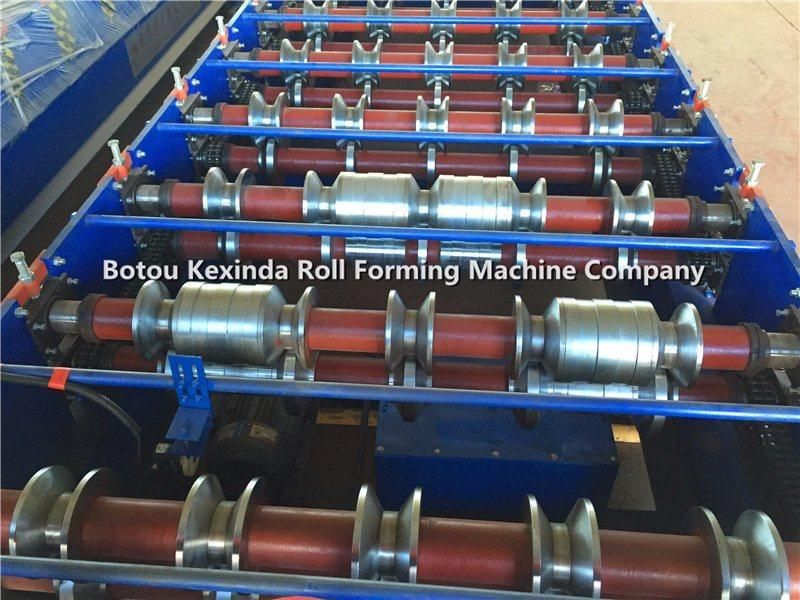

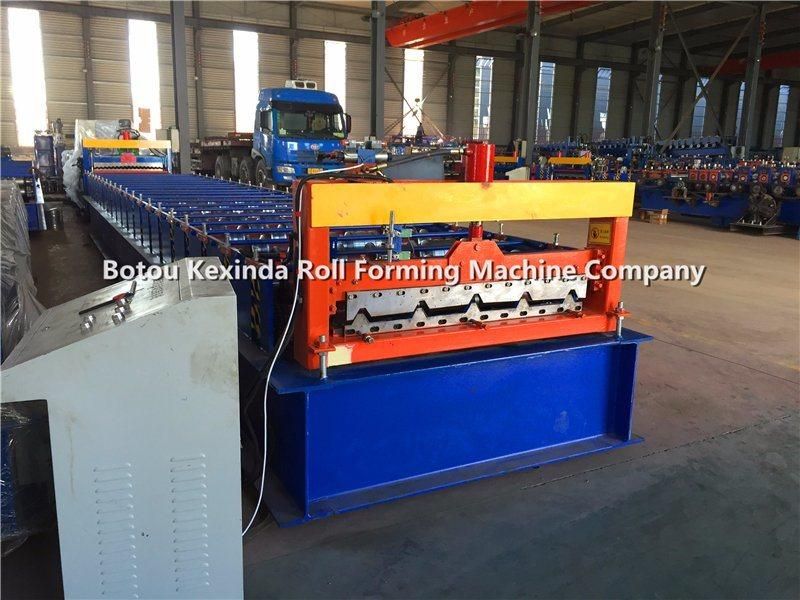

Manual Uncoiler ,Guiding Platform ,Coil Strip Leveler ,Main Machine Of Roll Forming ,Electro-Motor,Cutting Device ,Hydraulic Station ,PLC Control, Supporter Table.
Control System
PLC Delta Inverter
Main Frame
250mm H-Beam
Main Power
3 kw
Pump Power
3 kw
Power Supply
380V, 3-Phase,50Hz
Forming Speed
8-12m/min
Roll Station
14 stands
Roller Diameter
80mm
Hydraulic Pressure
10-12MPa
Forming Size
1050mm
Feeding Thickness
0.3-0.8mm
Feeding Width
1220mm
Backboard Thickness
14mm
Chain Size
20mm
Cutter Standard
Cr12
Roller Standard
Cr12
Cr-Plating Size
0.05mm
Overall Size
7000×1400×1500mm
Total Weight
2.5T
