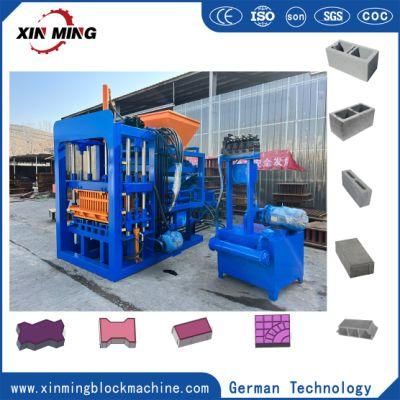

Full Automatic Production Concrete Brick Block Making machine with Hydraulic Machine System Hollow Solid Interlocking Paver Brick Blocks with High Quality

Shandong Xinming International Trade Co., Ltd.
  • Warranty：5 Years
  • Certification：CE, ISO

Base Info

  • Model NO.：QT4-15
  • Customized：Customized
  • Automatic Grade：Automatic
  • Type：Hydraulic Shock
  • Model：Qt4-15 Brick Making Machine
  • Host Machine Power：21.8 Kw
  • Mold Period：15 Seconds
  • Rated Pressure：21MPa
  • The Size of Pallet：850*550*20mnm
  • Weight of Block Machine：5.4tons
  • Mixer Model：Js500 Concrete Mixer
  • Labor：5-7 Workers
  • Vibration Force：40-50kn
  • Block Type：Hollow Soild Paving Block
  • Factory Area：1000-1500m2
  • Standard Hollow Block：400*200*200mm
  • Pallet Number：1500 PCS
  • Color：Optional
  • Water Consumption：5-6 Tons
  • Transport Package：Qt4-18 Brick Making Machine Is Nude in Container
  • Specification：3700(L)*1700(W)*2300(H)mm
  • Trademark：Xinming
  • Origin：China
  • HS Code：8474802000
  • Production Capacity：500PCS Block Machines Per Month
  • Package size per unit product：100.00cm * 100.00cm * 100.00cm
  • Gross weight per unit product：6000.000kg

Description

Full Automatic Production Concrete Brick Block Making machine with Hydraulic Machine System Hollow Solid Interlocking Paver Brick Blocks with High Quality                 Full Automatic Production Concrete Brick Block Making machine with Hydraulic Machine System Hollow Solid Interlocking Paver Brick Blocks with High Quality

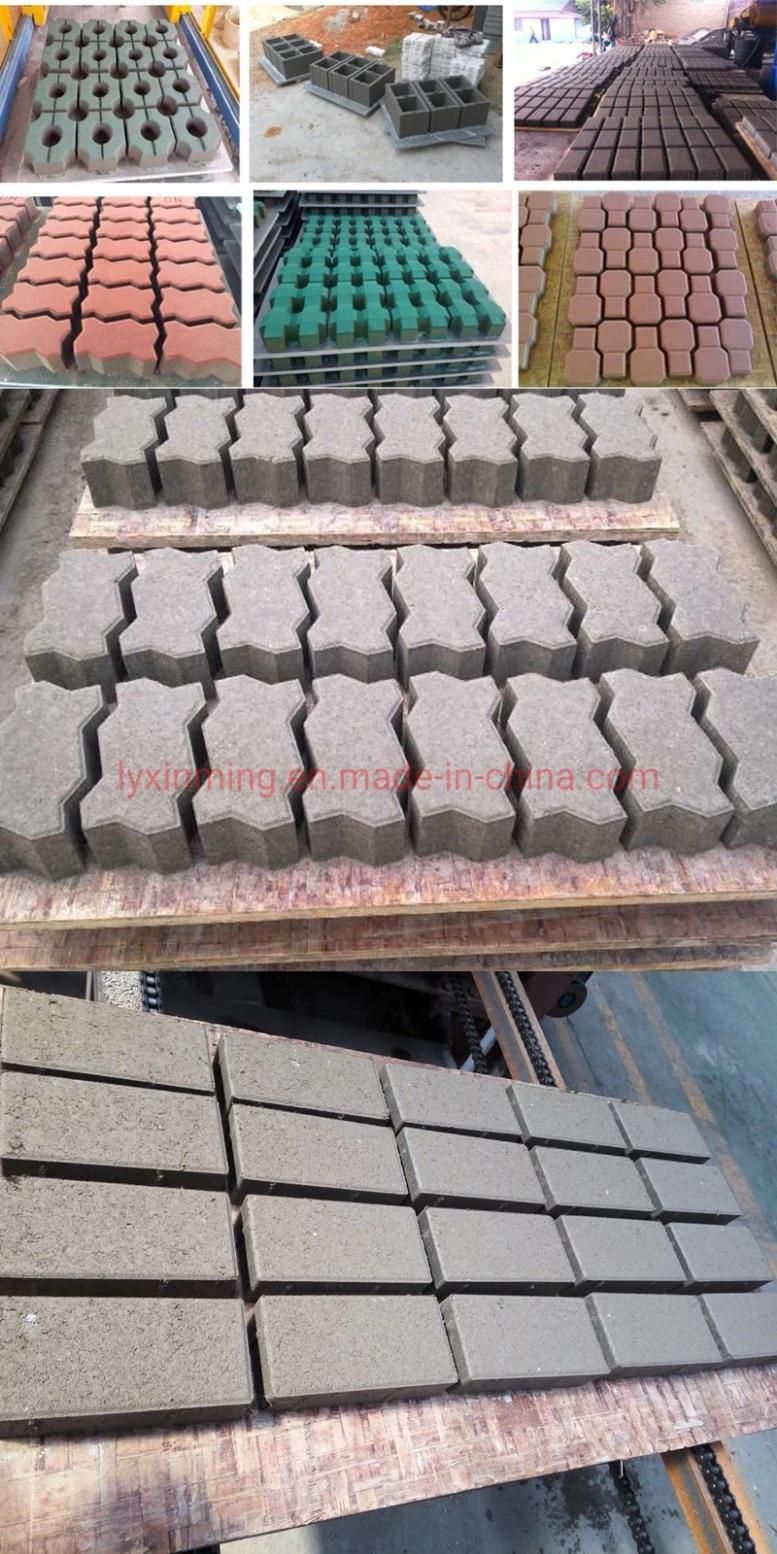

 2

Hollow/Solid block

400-150-200mm

6 pcs/mold
11520 pcs/8h3

Hollow/Solid block

400-100-200mm

8 pcs/mold
15360 pcs/8h4

Houdi block

450-120-200mm

7 pcs/mold
13440 pcs/8h
                   Full Automatic Production Concrete Brick Block Making machine with Hydraulic Machine System Hollow Solid Interlocking Paver Brick Blocks with High Quality
 5

S shape paver

225-112.5-60mm

12 pcs/mold
19200 pcs/8h
                   Full Automatic Production Concrete Brick Block Making machine with Hydraulic Machine System Hollow Solid Interlocking Paver Brick Blocks with High Quality
 6

I shape paver

200-160-60mm

10 pcs/mold
18600 pcs/8h
                   Full Automatic Production Concrete Brick Block Making machine with Hydraulic Machine System Hollow Solid Interlocking Paver Brick Blocks with High Quality
 7

Holland paver

200-100-60mm

16 pcs/mold
23040 pcs/8h
Full Automatic Production Concrete Brick Block Making machine with Hydraulic Machine System Hollow Solid Interlocking Paver Brick Blocks with High Quality

Workers Number:  5-6 Workers

 Two workers to load material into Mixer

 One Workers to operate block machine

 One Workers to load pallet into pallet box of block machine

 One or Two workers to carry fresh blocks to curing size

Factory Area : 1000-1500M2
Shelter Area; 200M2

Pallet Number for QT4-18 automatic block making line: 1500 pallet

Xinming Machinery Factory supply bamboo pallet, fiber (GMT) pallet and PVC pallet. We recommend you the Fiber Pallet.

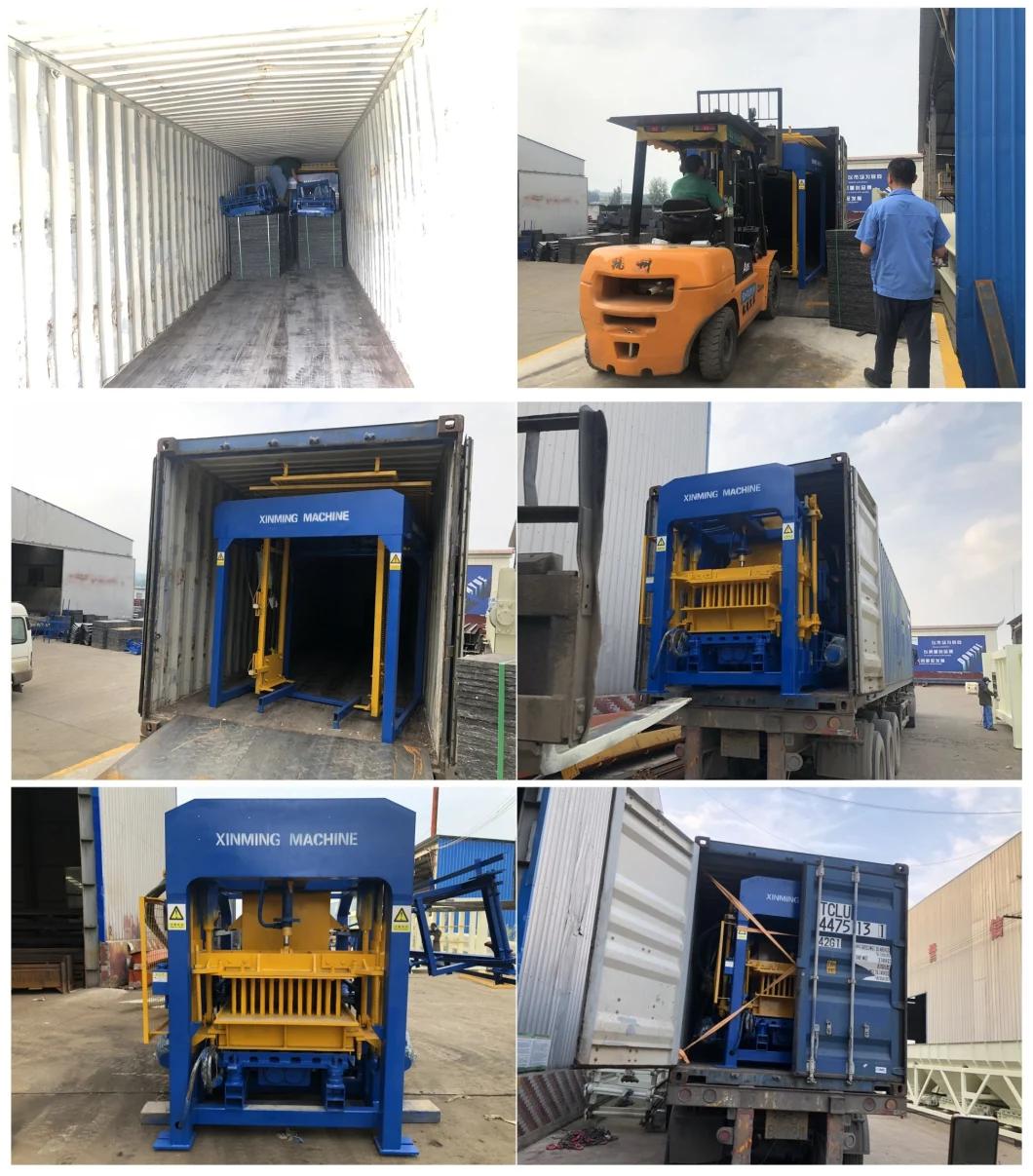

Packing&Shipping

QT4-18 is one of our best-selling machines. This type of concrete block making machine is a fully automatic hydraulic vibration machine with high output, low power and affordable price.
