Aluminum Window Curtain Wall Profiles End Processing Machine

JINAN YUEFENG MACHINERY CO., LTD.
  • After-sales Service:Include
  • Warranty:1 Year
  • Condition:New
  • Certification:CE
  • Automatic Grade:Automatic
  • CNC or Not:not CNC

Base Info

  • Model NO.:LXDB-250WG
  • Voltage:380V
  • Model:Lxdb-250wg
  • Input Voltage:380V 50Hz
  • Input Power:9.5 Kw
  • Air Pressure:0.5~0.8MPa
  • Air Consumption:180L,Min
  • Motor Rotation Speed:2800r,Min
  • Worktable Range:0~1400mm
  • Max Processing Hole:40mm
  • Milling Cutter Diameter:250mm ,300mm
  • Transport Package:Plastic Cover or Wooden Cases or Others
  • Trademark:YUEFENG
  • Origin:Jinan, Shandong, China
  • HS Code:8459699000
  • Production Capacity:100 Sets Per Month

Description

Basic Info.

Model NO. LXDB-250WG Voltage 380V Model Lxdb-250wg Input Voltage 380V 50Hz Input Power 9.5 Kw Air Pressure 0.5~0.8MPa Air Consumption 180L/Min Motor Rotation Speed 2800r/Min Worktable Range 0~1400mm Max Processing Hole 40mm Milling Cutter Diameter 250mm /300mm Transport Package Plastic Cover or Wooden Cases or Others Trademark YUEFENG Origin Jinan, Shandong, China HS Code 8459699000 Production Capacity 100 Sets Per Month

Product Description

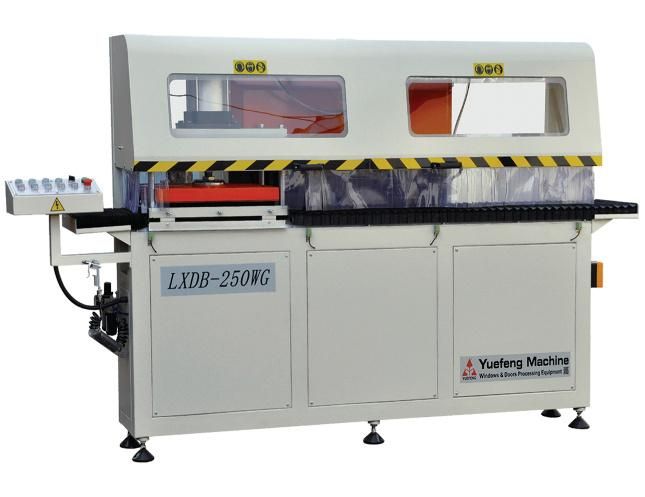

Aluminum Automatic Big End Milling MachineAluminum Window Curtain Wall Profiles End Processing Machine  Used for aluminum & curtain wall profiles' end processing, and suitable for various profiles.
Process multi-piece profiles in one clamp, high efficiency.
Convenient tool adjustment, can meet different processing requirement.
It can complete angular milling, one group of miller can be adjusted between angles ±45
Rack and gear transmission adopted in the feeding system, gives more stable.
It has features of easy operation, reliable performance, advanced technique and convenient maintenance.Technical Parameter:
ModelLXDB-250WG
Input voltage380V 50Hz
Input power9.5 Kw
Air pressure0.5~0.8MPa
Air consumption180L/min
Motor rotation speed2800r/min
Worktable range0~1400mm
Max processing hole40mm
Milling cutter diameterφ250mm /φ300mm
Adjustment range0~85mm
Overall dimension3000×1200×1700mm
Aluminum Window Curtain Wall Profiles End Processing Machine
Aluminum Window Curtain Wall Profiles End Processing Machine
Aluminum Window Curtain Wall Profiles End Processing MachineAluminum Window Curtain Wall Profiles End Processing Machine

RFQ:

1.Are your company a trading one or a factory?

Factory + trade (integration), 36 years' focusing on Upvc,Aluminum Window and Doors Equipment ,insulating glass equipment and curtain wall equipment.

2.After an order is placed, when to deliver?

♦ Generally about 15 days,  If  we have inventory, we can arrange shipment within 5 days.
♦ Please be aware that our production lead times depend on specific items and item quantities.
3.What about the warranty with after - sales services?
♦ 24 months warranty. Besides,we can help you to solve your problem freely;

♦ After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problem encountered while using our product, handles guest problems and complaints in a professional and timely.
4.What about the services and product' quality?
♦ Each machine must be carried out 100% quality examination and test before shipment.

♦ And all machines meet ISO and CE certification.
5. We don't know the machine operation, what should we do?

♦ We can send engineer to your place, or we provide video training to show you how to install & operate, let engineer help you online.
