• Model NO.：YR001
• Certification：CE, ISO
• Condition：New
• Customized：Customized
• Application：Construction Material Machinery
• Sandwich Wall Panel：3000-3600
• Sandwich Wall Panel 2：600mm
• Sandwich Wall Panel Size：75-300mm
• Wall Panel Application：Internal and External Walls
• Wall Panel Raw Material：Cement Sandwich Water EPS
• Main Market：Middle East Africa, South America, Southeast Asia
• Capacity：30, 000sqm to 500, 000sqm Per Year
• Place of Origin：Shandong, China
• Voltage：380V 50Hz
• Colour：According to Client Requirement
• Three Types of The Wall Panel Machinery：Automatic Vertical, Automatic Horizontal, Manual
• Land Area：Based on Production Capacity
• Worker Quantity：Based One Plant Capacity
• Feature：Soundproof, Environmental, Light Weight, Fireproof
• Transport Package：Export Standard Package in 40 Feet Container
• Specification：based on production capacity
• Trademark：Yurui
• Origin：China
• HS Code：8429521200
• Production Capacity：100 Sets Per Year

Overview Product DescriptionProduct Parameters



Machinery ParametersCapacity20,000sqm~600,000sqm per yearThickness50-200mm thickness. Or customize the size you likeLength2400~3000mmWidth610mmRaw materialCement; EPS; fly ash; calacium silicate board/mgo board, etc
Our advantages :
1. It's convenient to both install and take apart the machine.
2. It's easy to operate and energy-saving.
3. The multipurpose machine could meet the requirement to produce boards with different specification by changing the thickness and length.
4. The moulding boards have character of high stiffness, high precision for the mould of double surface and thickness and good planeness.
5. The unique technology of tongue and groove can solve the problem of crack of board.

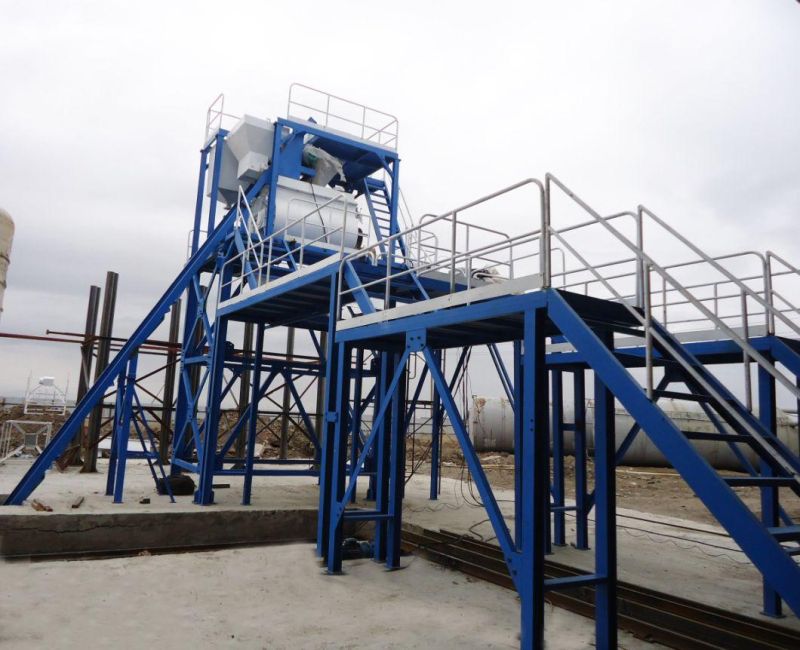

II: Main equipments of insulated eps cement concrete composite sandwich panel forming machine      Machine part: Automatic Material feeding and metering system

Introduce :1.Cement ,flyash,EPS particels will be metering and feeding into the mixer automatically to save the labors and improve working efficiency also it is more environmentally .
2.Sand (or ceramsite /slag /pumice stone other agregate) and additives will be feeding into the mixer by lifting hopper

2.Raw material automatic mixing system

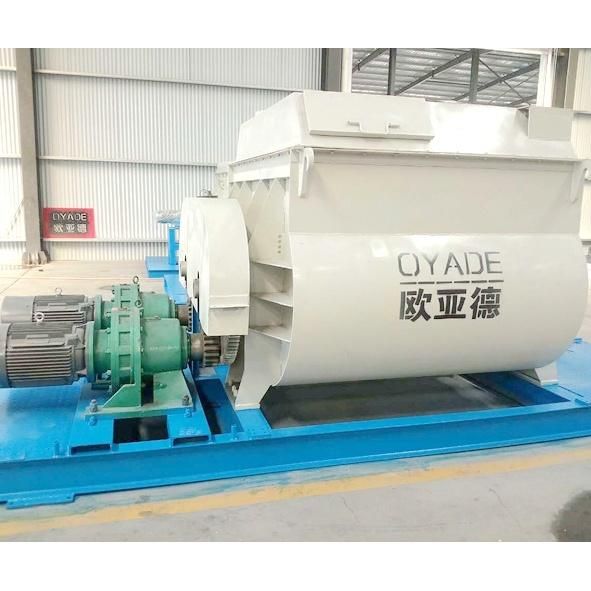

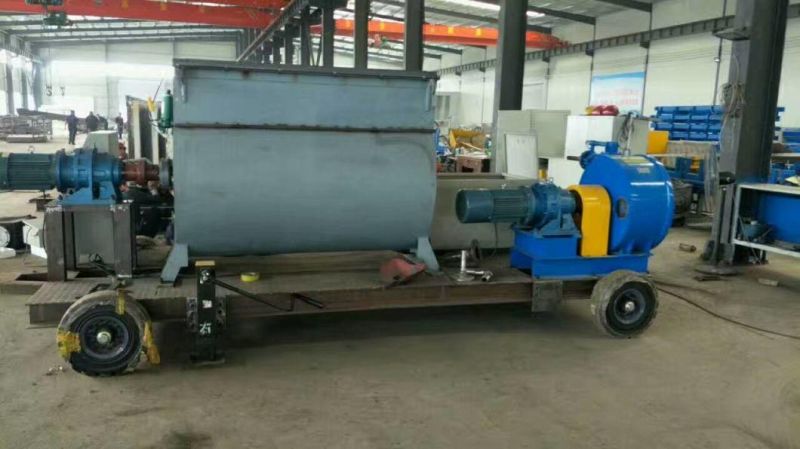

Machine part: Double-shaft mixer
Capacity available :1.2/1.5/2.0/2.5/3.0/3.5 sqm
Introduce:the mixer capacity is related to the mould car quantity , so we will equip the mixer after confirm the capacity with client . so that can makre sure our proposal is suit to you .
Features: the double shaft is to blend the raw material more even ,also save time . different capacity to satisfy different client's requirement .


Machine part:Second mixing mixer

Unique feature :If the mould car quantity is more than 10 units ,then we will equip the second mixing mixer, so as to save the mixing time of the first mixer and improve working efficiency ,increase productivity .

Note: normally use one-shaft mixer ,only large capacity will equip second mixing if small capacity ,second storage hopper is enough .
3. Automatic forming system

Machine part:Pump+pipe

Introduce : After the mixer mix the raw material well then the workers use the pump and pipe to cast the slurry into the mould car

Features:The pump is to make the pouring more even, no need to vibrate, and the working platform will be clean and the material will not be wasted.

4. EPS forming system

Machine part:The Boiler system

Introduce:The boiler will supply heat for EPS foam

Feul:coal (need burner),gas ,oil



Machine part: EPS foaming machine

Introduce:It will foam the eps by boiler supply heat and foam the EPS into the requested size .

Note: If you can buy foamed EPS particles locally ,then this parts no need .

III:FInished products Features & Usage

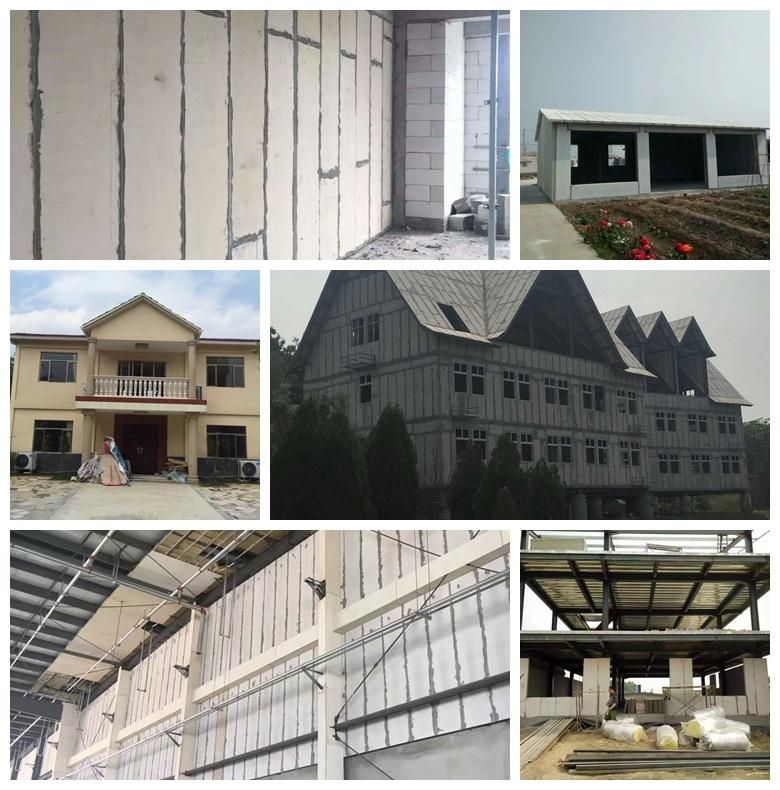

This kind of wall panels can be used at Shopping Center, Residential Building, Villa , Wall Partition, Internal and External Wall.

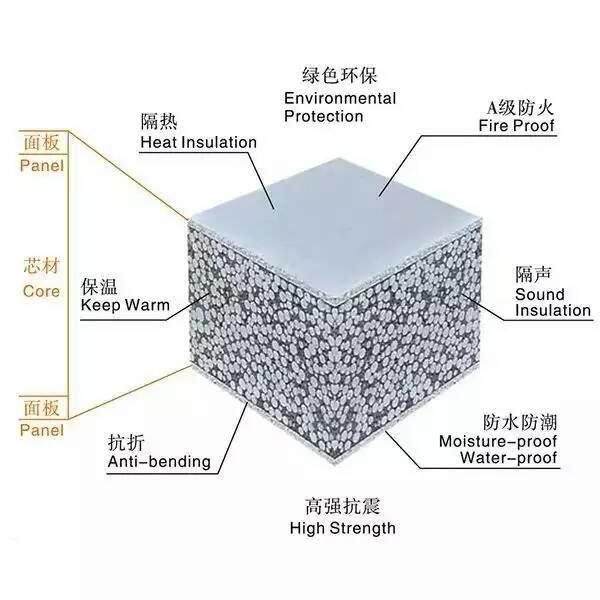

Advantages of eps wall panels
1. Fast and easy installation on site.
2. Heat insulation.
3. Sound insulation.
4. Energy saving.
5. Lightweight.
IV: FAQ of insulated eps cement concrete composite sandwich panel forming machine
Q: How long is the warranty of your equipment?
A: 1year
Q: Do you supply spare parts?
A: Excellent easy broken parts support for buyers. Easy broken parts guarantee for one year.
Q: Will you provide training?
A: The training is free of charge , and our engineer will be on duty to train your worker.
Q: How will you provide installation&commissioning
A: Will provide 2~8 persons(adjustable according to the degree of automatic )for installation. Engineers team will go with your project.

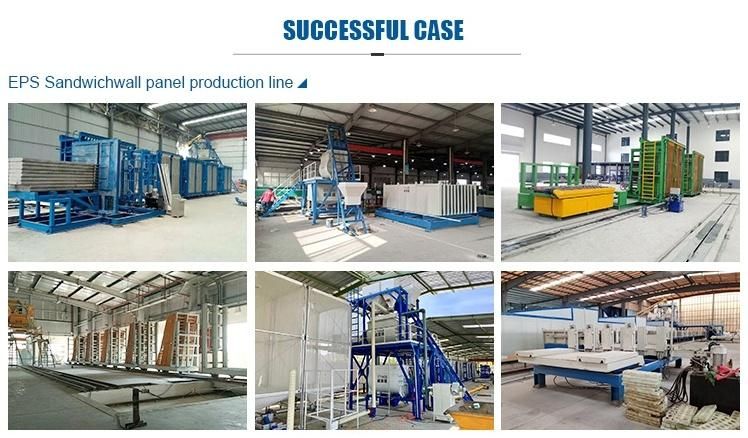

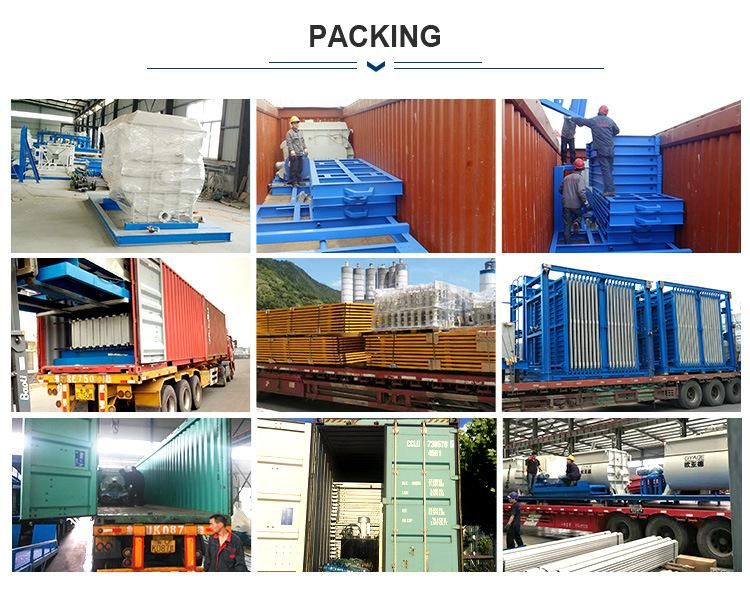

V: Package and sample projects        VI :Company and Contact information

We continuously improve customer satisfaction through providing high-quality service. Now we have already help to set many factories in China and exported to more than 30 countries over the world, such as Iran, Syria, Israel, Kazakhstan, Malaysia, India, etc.

Sincerely invite friends from all over the world to visit our factory. If you have any questions, don't hesitate to contact us.

More details please feel free to contact
