Stone Chips Coated Metal Roofing Tile Machine
HEBEI XINNUO ROLL FORMING MACHINE CO., LTD.- Product Type：Metal Tiles Making Machine
- Automatic Grade：Automatic
- Power Source：Electric
- Screw Design：Single-Screw
- Certification：CE, ISO
- Condition：New
Base Info
- Model NO.：KXD
- Customized：Customized
- Usage：Roof, Wall, Stone Coated Roof
- Power：38V, 50Hz, 3 Phrase or as Your Like
- Control System：PLC
- Decoiler Type：Manul, Electric, Hydraulic
- Tile Type：Colored Steel
- Life Time：10 Years
- Transport Package：Main Machine Nude Packing with Plastic Film
- Specification：5800*1500*1500
- Trademark：KXD
- Origin：Botou City
- HS Code：8455221000
- Production Capacity：7000
Description
Basic Info.
Model NO. KXD Customized Customized Usage Roof, Wall, Stone Coated Roof Power 38V, 50Hz, 3 Phrase or as Your Like Control System PLC Decoiler Type Manul, Electric, Hydraulic Tile Type Colored Steel Life Time 10 Years Transport Package Main Machine Nude Packing with Plastic Film Specification 5800*1500*1500 Trademark KXD Origin Botou City HS Code 8455221000 Production Capacity 7000Product Description
Colorful stone chip coated metal roofing tile making machinechina manufacturerOur advantageous:
1:Factory direct supply price.
2:We have exported for more than 10 years.
3:Our customer are from about 70 countries.
4:We have the professional research team.We can make the machine according to your requirement.
5:High-end and high-grade design
6:Free technical support and Free accessoies supply.
1.The compositions of color stone tile production:
1.Auto bottom gule spraying section
2.Auto stone coated section
3.The first time drying section
4.Auto face gule spraying section
5.The second time drying section
Good price/performance ratio Color stone coated steel roof tile making machine with PLC control system
Product Description
1.Colorful stone-coated metal roof tile is a modern environmently friendly roofing material with the basic of 0.4mm AL-zin coated steel.
2.Covering color vermiculite surface with carried under the high temperature technology.
3.It is high-performance, stable, energy-efficient and easy operation.
Main characteristics
1.PLC computer control
2.No noise, no shake
3.Hydraulic system
4.Easy operation
5.Maintenance free
Main equipment
1.Automatic bottom glue spraying equipment
2.Automatic sand blasting room
3.First drying room
4.Automatic surface glue spraying equipment
5.Second drying room equipment component
NO.1 Automatic bottom glue spraying equipment
| Appearance size | 4000*1000*2000mm |
| Driving section | 3KW excitation motor |
| Automatic pressure spray tank | 1 set;Capacity:200kg;Range:0.6-1Mpa |
| Automatic glue machine motor | Servo motor:Power:750w;PLC |
| Automatic spray gun | 4 set |
| Dust collecting fan | 1 set power:200w |
| Damp proof lamp | 1 pc;Power:100w |
| Conveying device | Chain reciprocating |
| Air compressor | 1 set power:7.5kw |
| Dust control of axial flow fan | 1 set power:200w |
| Agitator | 1 set power:1.5kw |
NO.2 Automatic sand blasting room
| Appearance size | 3500*1000*1500mm |
| Frame work | Steel welding |
| Conveying device | Chain reciprocating |
| Automatic sand hopper | 1 set;Capability:200kg |
| Bucket lift | 1 set |
| Manual sang blast gun | 4 sets |

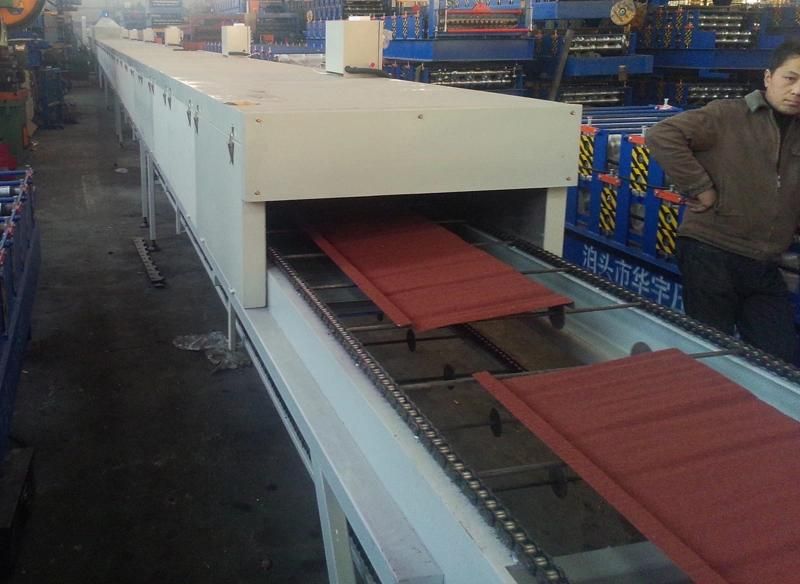

NO.3 First drying room
| Appearance size | 25000*1000*1200mm |
| Framework | Steel welding |
| Frame type thermal insulation wall | 1.2mm cold steel with rock wool |
| Automatic temperature controller | 4sets range:0-160 |
| Infrared heating tube | 30pcs power:30kw |
| Conveying device | Chain reciprocating |
| Air cooling device | 1set power:200w |
NO.4 Automatic surface glue spraying equipment
| Appearance size | 3000*1000*2000mm |
| Framework | Steel welding |
| Damp proof lamp | 1pc;Power:100w |
| Automatic pressure spray tank | 1set;Capability:200kg;Range:0.6-1Mpa |
| Conveying device | Chain reciprocating |
| Automatic spray gun | 4sets |
| Manual patch glue gun | 4sets |
| Dust control of axial flow fan | 1set;Power:200w |
| Automatic glue machinemotir | Servo motor;Power:750w |

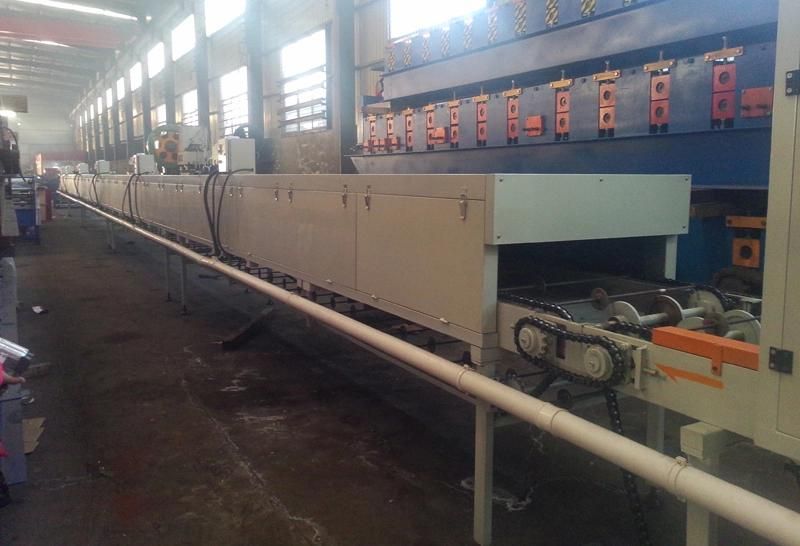

NO.5 Second drying room equipment component
| Appearance size | 30000*1000*1200mm |
| Framework | Steel welding |
| Frame type thermal insulation wall | 1.2mm cold steel with rock wool |
| Automatic temperature controller | 4sets;Range:0-160 |
| Infrared heating tube | 30pcs;Power:30kw |
| Conveying device | Chain reciprocating |
| Air cooling device | 1set;Power:200w |
ABOUT US
We are the manufacturers all kinds of roll forming machine, which can provide overseas after-sales service .
Our company has found for over 1 8 years since 1 9 9 6.
We are the professional manufacture to produce different kinds of roll forming machine
Roof and wall panel roll forming machine
C/z purlin roll forming machine
Sandwich panel production line
Floor deck roll forming machine
Light steel keel roll forming machine
Container board roll forming machine
Bending machine,cutting machine and automatic un-coiler
Trapezoidal steel roof panel roll forming machine for sale
All the parameters are only for reference, we can Joint-Hidden Roofing Sheet Roll Forming Machine as per your profile drawings.
Payment terms
T/T( 30% by T/T in advance, the rest 70% to be payed by T/T after you inspect the machine in seller's factory before delivery )
Packaging & Delivery
Packaging Details:
Stone Coated Metal Roof Tile Making Machine is standard export package,all Components Fixed by steel wire with Container.
Delivery Detail:
Within 90 days after receiving deposit
