• Certification：ISO, CE
• Automatic Grade：Automatic
• CNC or Not：not CNC
• Voltage：380V
• Power Supply：380V,50Hz
• Total Motor Power：3.0kw
• Rated Pressure：0.6~0.8MPa
• Air Supply：5L,Min
• Front Positioning Stroke：170mm
• Backward Cutter Stroke：120mm
• Adjusting Rang of Front Positioning：140mm
• Adjustment Range of Angle Cutter：160mm
• Height of Machined Profile：160mm
• Fuel Tank Capacity：40L
• Oil Pump Size：10L
• Weight：700kg
• Overall Dimension：870*1200*1100
• Transport Package：Wooden Box
• Specification：870*1200*1100
• Trademark：Seth
• Origin：Jinan
• Package size per unit product：87.00cm * 120.00cm * 110.00cm
• Gross weight per unit product：700.000kg

Product Description

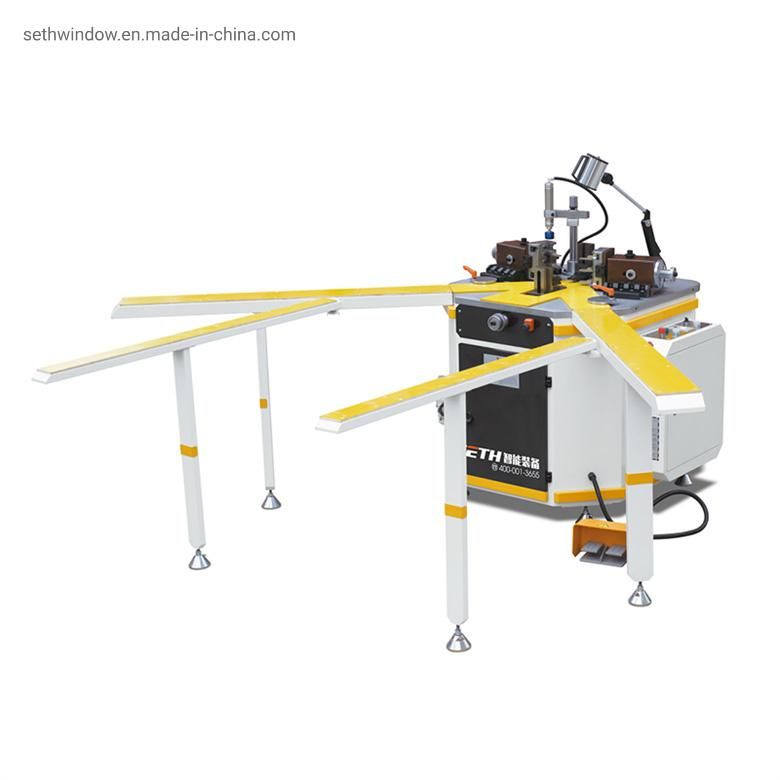

 1.It is suitable for corner-code punching and riveting connection of aluminum door and window curtain wall.
2.This machine is the latest R&D and design model of our company, which is the first in the industry, with stable performance, high precision and high efficiency.
3.The machine is controlled by program, hydraulic system provides angular power, and has high punching and riveting force, fast speed and stable operation.
4.The angle setting knife has a wide adjustment range up and down, is easy to adjust, and adapts to the angle setting of higher and thicker profiles.
5.The front positioning adopts lifting type, which is convenient for taking and placing materials.
6.Double-point knife and step knife can be configured to make the angle strength higher..
