Germany Qt4-15 Full Automatic Concrete Brick Making Machine\ Automatic Brick Machine\Block Machine
SHANDONG HENRY INTELLIGENT MACHINERY MANUFACTURING CO., LTD.- Certification：CE, ISO
- Customized：Customized
- Automatic Grade：Automatic
- Type：Hydraulic Shock
- After-Sales Service Provided：Engineers Available to Service Machinery Overseas
- Cycle：15s
Base Info
- Model NO.：Qt4-15
- Pallets Size：900X550X30mm
- Vibration Force：50kn
- Rate Pressure：16MPa
- Total Weight：6500kg
- Vibration：4000-4800,Minute
- Water Consumption：5-6t
- Moldels of Mixer：Js500
- Transport Package：Container
- Specification：3700*1500*2600mm
- Trademark：henry
- Origin：Linyi City, China
- HS Code：8474802000
- Production Capacity：300sets,Month
Description
Technical specification of QT4-15 Concrete Block MachineOverall Size 4000*1800*2800mm Power of host machine 21.8KW Molding Cycle 10-15 seconds pallets size 1010x550x30mm vibration force 50KN rated pressure 16-25MPa total weight 5500KG electricity source 380V//220V(adjustable)

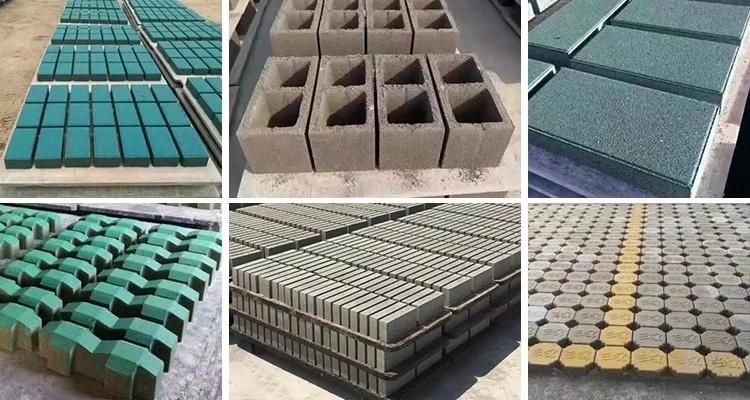

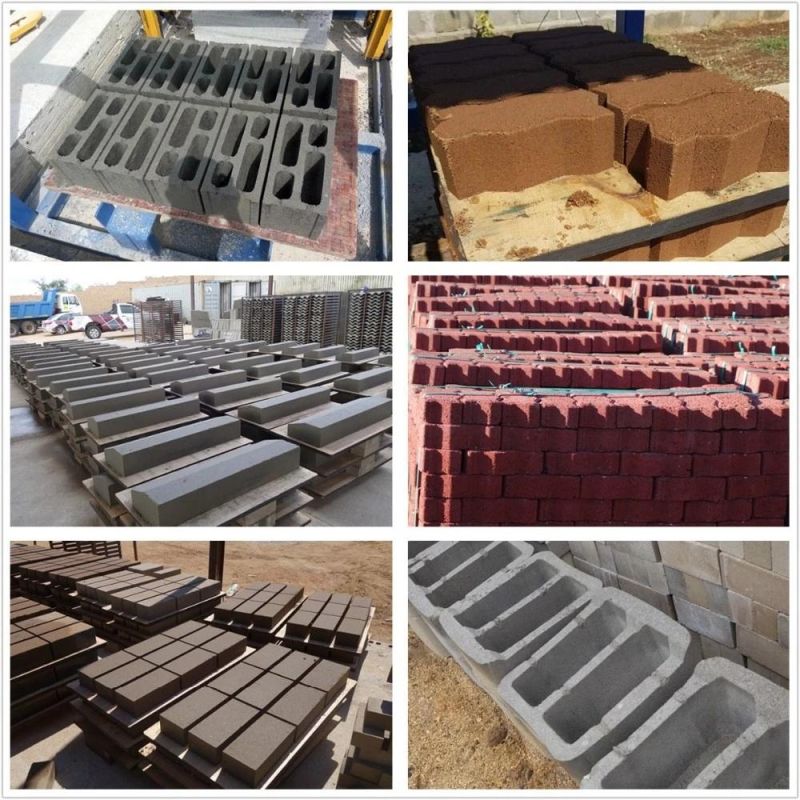

Block capacity and sample
Size Pcs per Mould Pcs per Hour 400*200*200mm 4 960 400*150*200mm 5 1200 400*100*200mm 8 1920 500*150*200mm 5 1200 240*115*53mm 26 6240 225*112.5*60mm 12 2880 200*100*60mm 16 3840 200*160*60mm 12 2880 400*200*60mm 4 960
About us
Henry Industrial Co.,Ltd is a big and famous Construction Company in China.We are manufacturer of concrete block making machine and clay interlocking brick machine for 23 years.Our machines have a high quality and get Certified ISO 9001: 2009 and CE standard by Eurotech Germany. As so far,we have applied for 23 patents,the patent technology guatantee equipment to be rationality,stability,reliability,customers have been widely praise and acclaim on it.Company products exported to Europe and the United States,Africa,the Middle East and more than 100 countries and regions.
Our sevice
we have go big after sale service team , they are all the experience technician, over 20 workers have the passport , they all have the oversea experience. So we not only have good service in the pre service , we also think highly of the after sale service.
Pre-sale:
(1) Professional suggestions (raw material matching, machine selection, plan
The condition of building factory, feasibility analysis for brick machine production line)
(2) Device model choice (recommend the best machine according to the raw material, capacity
and the size of brick)
(3) 24 hours on-line service
(4) Welcome to visit our factory and production line any time, if you need, we can Make invitation
letter for you.
(5) Introduce the company file, product categories and production process.
Sale:
(1) Update the production scheduling in time
(2) Quality supervision
(3) Product acceptance
(4) Shipping on time
After-sale:
(1) The engineer will guide to carry out the plant at the clients side if needed.
(2) Set up, fix, and operate
(3) offer training to the operator until they are satisfied at clients side.
(4) Skill support the whole using life.
(5) Recall clients regularly ,get feedback in time ,keep well communication with each other
Guarantee
(1)We can supply one year guarantee period for our brick making machines,if the client have the question ,they could call our service department number any time , we will supply per day 24 hours service .
(2)Within one year ,if the client meet the unsolvable questions ,we could fly to client place to help.
Block capacity and sample
About us
Henry Industrial Co.,Ltd is a big and famous Construction Company in China.We are manufacturer of concrete block making machine and clay interlocking brick machine for 23 years.Our machines have a high quality and get Certified ISO 9001: 2009 and CE standard by Eurotech Germany. As so far,we have applied for 23 patents,the patent technology guatantee equipment to be rationality,stability,reliability,customers have been widely praise and acclaim on it.Company products exported to Europe and the United States,Africa,the Middle East and more than 100 countries and regions.
Our sevice
we have go big after sale service team , they are all the experience technician, over 20 workers have the passport , they all have the oversea experience. So we not only have good service in the pre service , we also think highly of the after sale service.
Pre-sale:
(1) Professional suggestions (raw material matching, machine selection, plan
The condition of building factory, feasibility analysis for brick machine production line)
(2) Device model choice (recommend the best machine according to the raw material, capacity
and the size of brick)
(3) 24 hours on-line service
(4) Welcome to visit our factory and production line any time, if you need, we can Make invitation
letter for you.
(5) Introduce the company file, product categories and production process.
Sale:
(1) Update the production scheduling in time
(2) Quality supervision
(3) Product acceptance
(4) Shipping on time
After-sale:
(1) The engineer will guide to carry out the plant at the clients side if needed.
(2) Set up, fix, and operate
(3) offer training to the operator until they are satisfied at clients side.
(4) Skill support the whole using life.
(5) Recall clients regularly ,get feedback in time ,keep well communication with each other
Guarantee
(1)We can supply one year guarantee period for our brick making machines,if the client have the question ,they could call our service department number any time , we will supply per day 24 hours service .
(2)Within one year ,if the client meet the unsolvable questions ,we could fly to client place to help.
