• Model NO.：Customized
• Transport Package：Nude
• Specification：CE SGS ISO
• Trademark：Dixin
• Origin：Botou, Hebei, China
• HS Code：84552210
• Production Capacity：500 Sets,Month

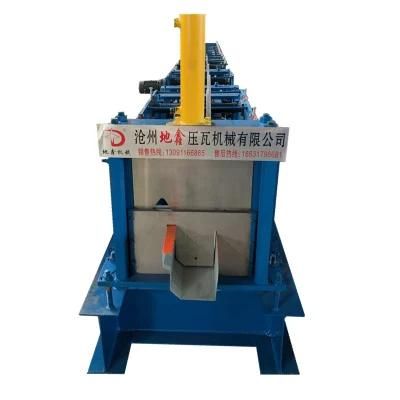

Gutter roll forming machine

Item

Specification

Material

Type

Pre-painted steel coil & galvanized coils

Thickness

0.3-0.8mm

Yield strength

235Mpa.Q345Mpa, Q550Mpa

Roller material

Quenched and tempered treatment,

hard chrome coated.05-0.07mm

Forming speed

About 15-20m/min

Output speed

13-15m/min

Speed adjusting mode

AC Frequency

Roller drive

Decelerating motor + Chain drive

Cutting mode

Hydraulic cutting

Cutter material

Cr12 mould steel

Length measurement

Encoder

Control mode

Panasonic or Delta PLC

Operating mode

Button + Panasonic/Delta Touch screen

Main motor

5.5KW

Hydraulic station motor

4KW

Working flow

1. Technology:We have centers and innovative designing teams for different kinds of production lines.
2. After Sale Service:Warranty period 1 year , after this period , we are willing to give help
if customer needs accessory . The real cooperation will not end at the delivery .
we believe that satisfied after sale service means a lot.
3. Inspected by the Sellers:After completing the manufacturing and assembling of the equipments,
we will test the machines and commissioning in the workshop.
4. Inspected by the Buyers:After confirmation of a sound work of the line,
we will invite our customer to send their representatives to inspect the production lines in our factories.




FAQ

Q1. What are the main key points for selecting right machines?

A1: Whole structure,Roller Shaft,Roller Material,Motor&Pump,and Control system. As the new buyer, please kindly know that price not the final point.

Good quality is for long-term business cooperation.

Q2. Can you provide OEM service for roll forming machine?

A2: Yes, most of cold roll forming machine need to be customized as detailed request, because raw material , size , production usage, machine speed, then machine specification will be some different.

Q3. What's your standard trade terms ?

A2: We can provide the technical offer with FOB,CFR,CIF,Door to Door and so on. Please kindly tell the detailed port name for competitive ocean freight.

Q4. How about the quality control?

A4: Our company adopts 6S system to control every part with passed ISO9001:2000, CE,TUV/BV(Alibaba) Certificate.

Q5. How about the after-sale service?

A5: We provide 12 months free warranty and free technical support for the whole life of any machine. During warranty period, if parts still broken, we can send the new ones freely.

Q6. If I am in Beijing,or Shanghai ,how to visit your company?

A6: 1)Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.

2)Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao  to Cangzhou Xi(4.5 hours),then we can pick up you.
