• Model NO.：BYL2-1.2*1300
• Name：Square Air Duct Production Automatic Line 3
• Power：9kw
• After Sales Service：Online Support, Free Spare Parts, Video Technical
• Weight：4000kg
• Color：Optional
• Thickness：0.5-1.2mm
• Control System：PLC
• Function：Duct Work
• Model No.：Byl-3
• Location：Nanjing,China
• OEM：Available
• Transport Package：Standard Seaworthy Package
• Specification：2300*1900*1200mm
• Trademark：BYFOCNC
• Origin：Jiangsu China
• HS Code：8462219000
• Production Capacity：100 Sets,Month

Basic Info.

Model NO. BYL2-1.2*1300 Name Square Air Duct Production Automatic Line 3 Power 9kw After Sales Service Online Support, Free Spare Parts, Video Technical Weight 4000kg Color Optional Thickness 0.5-1.2mm Control System PLC Function Duct Work Model No. Byl-3 Location Nanjing,China OEM Available Transport Package Standard Seaworthy Package Specification 2300*1900*1200mm Trademark BYFOCNC Origin Jiangsu China HS Code 8462219000 Production Capacity 100 Sets/Month

Product Description

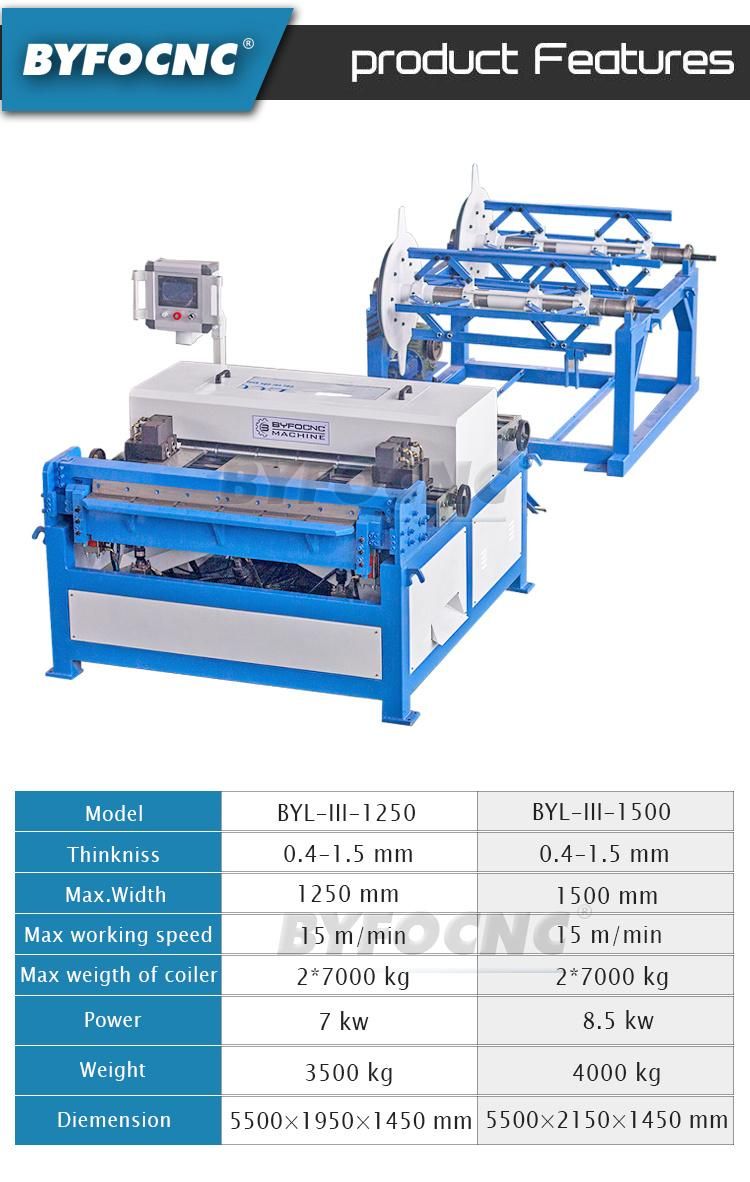

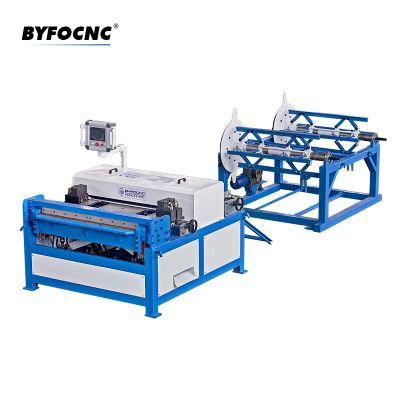

             AUTO hvac tdf flange square ducting forming production making line iii

I. Advantage of Products:
·  The latest design can resolve the problems like getting struck, too many repairs form roll-shearing displacements lock machine.

·     The three-line bending function can crimp narrow edges and stably process 0.5-1.2mm galvanized sheet to avoid wasting.

·  Mechanical arm clutching, locating and transferring platform

·  Displacement lock machine

·  Line 3 host+ Single rack

II. Function:

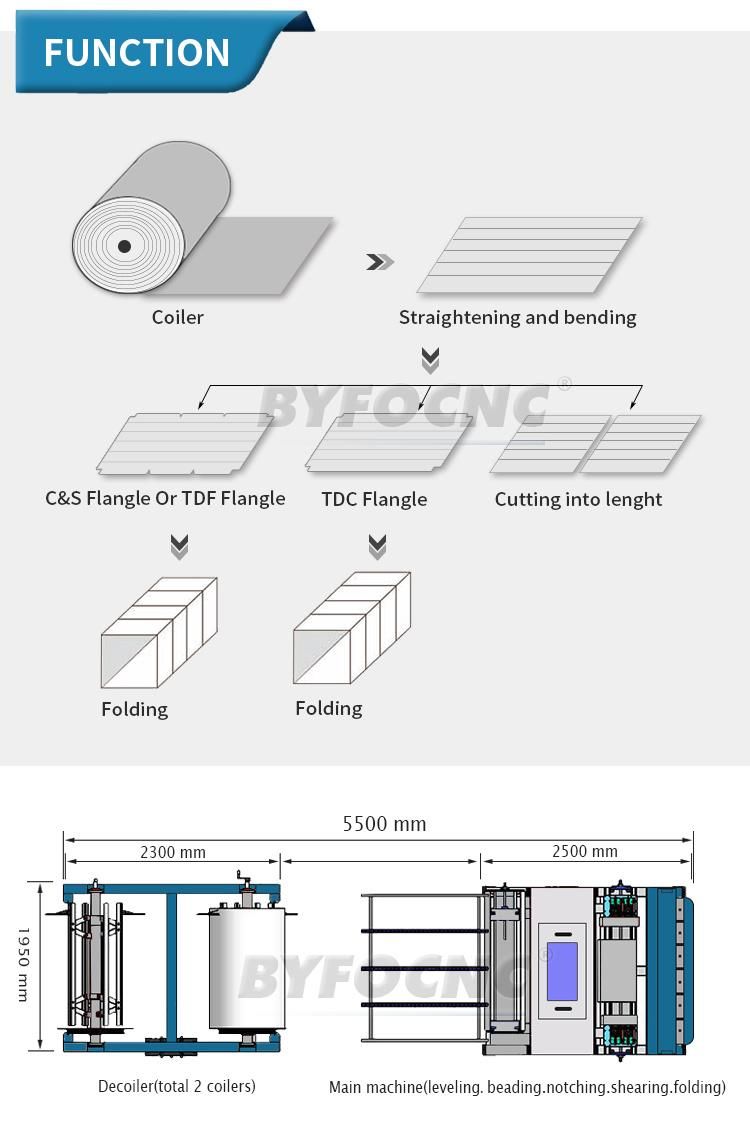

· It's mainly for uncoiling, levelling, beading, punching, lockforming. Because of its small space requirement and easy to install and operate the machine can upgrade to "super line 4".

III. Performance Features:

· All the rolling reels are made of bearing steel so that the lifetime prolongs by more than 5 times.

· Under the material-saving mode of CNC system, machine can withdraw material automatically after finishing tasks.

· With production memory functions, the production orders can be tracked and checked.

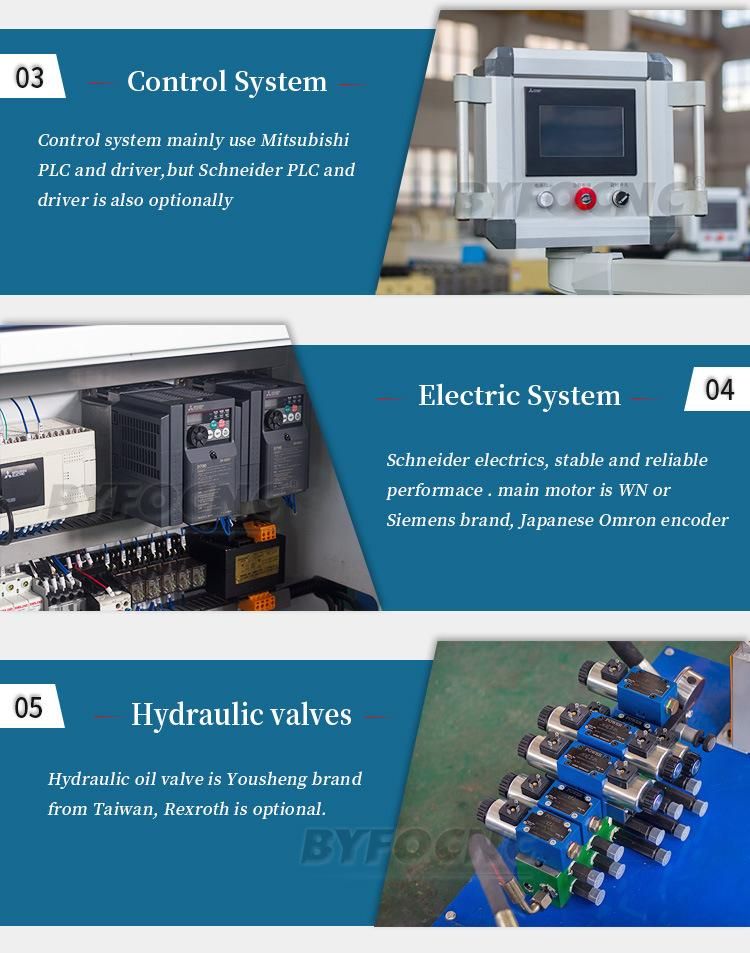

IV. Main Import Configuration:

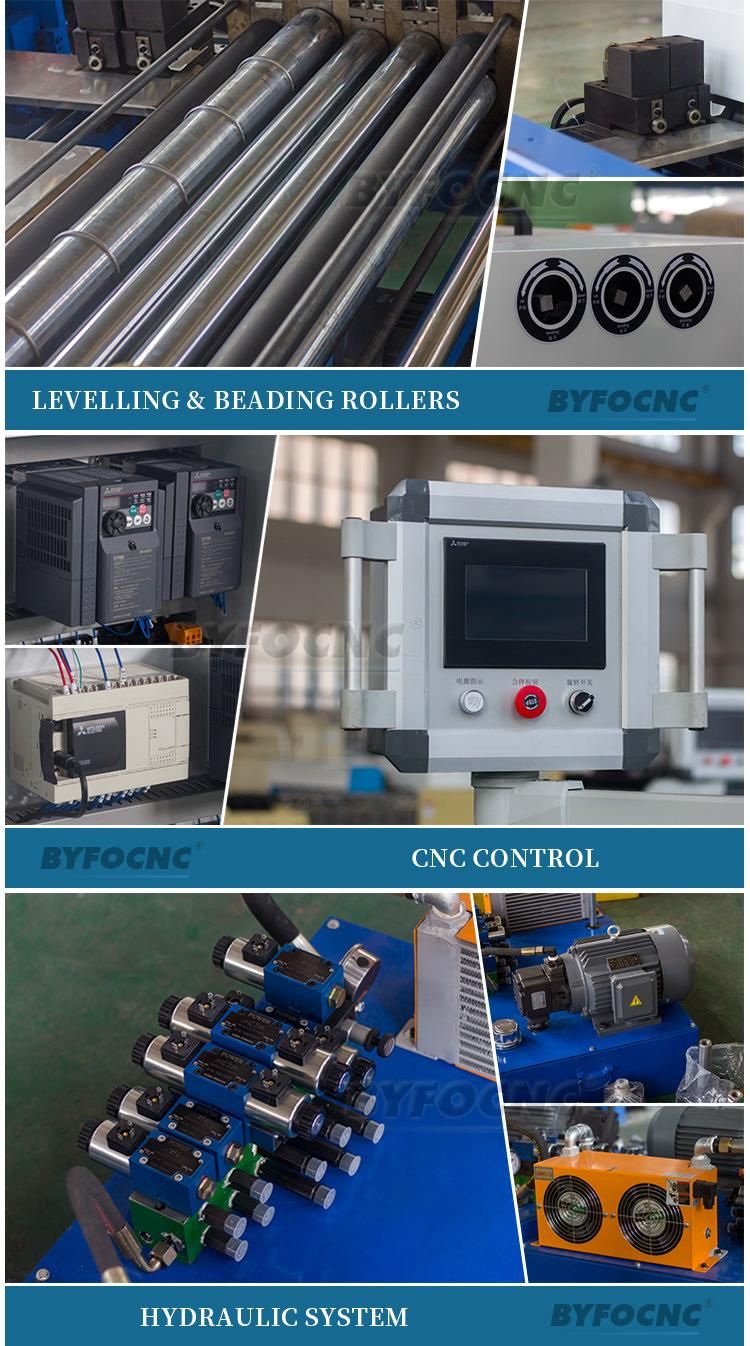

· · MITSUBISHI HMI Display And PLC

· · MITSUBISHI Frequency Converter

· · Japan NEMICON Inverter

· · Taiwan Hydromax Pump

·   Taiwan High Temperature Resistant Tubing

V. Basic Configuration:

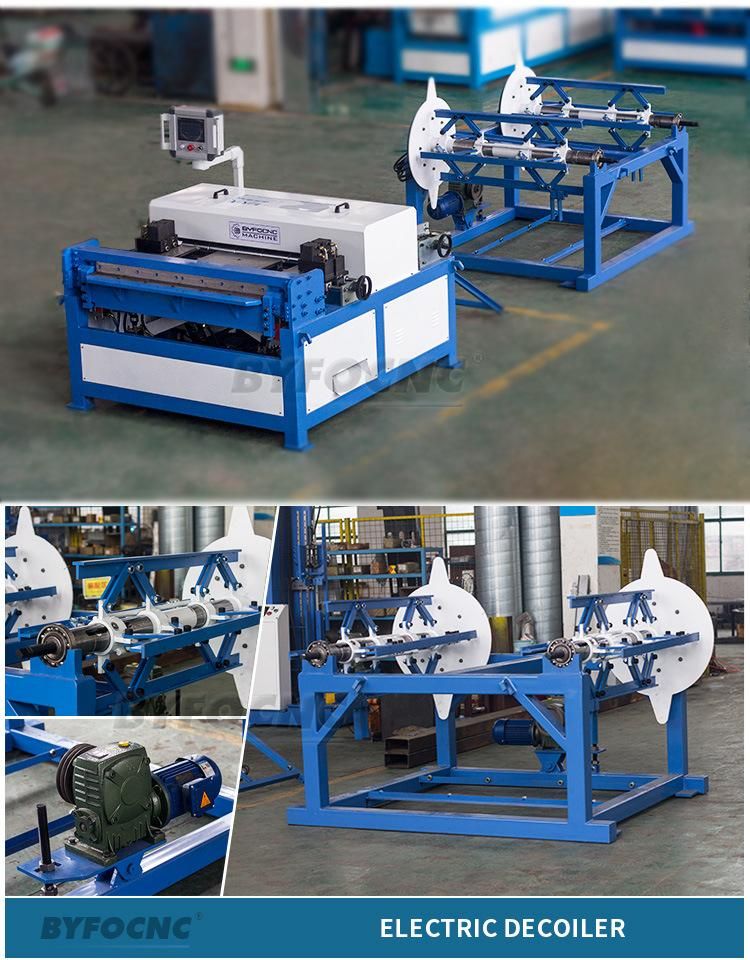

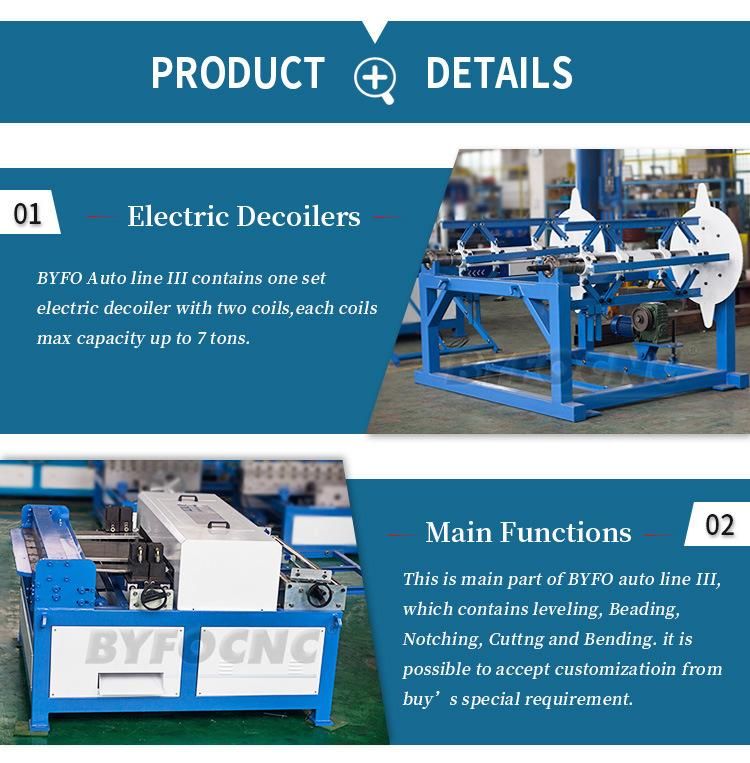

· One electric coil cradles, 2 material trays (5-7t each roll)

· One rack

· One host (line3 host)

· One mechanical arm clutching, locating and transferring platform

· One displacement type locking machine

· One set of computer controlling system
