Highest Quality Corner Crimping Machine for Aluminum Window and Door Making

JINAN YUEFENG MACHINERY CO., LTD.
  • Condition：New
  • Automatic Grade：Automatic
  • CNC or Not：not CNC
  • Voltage：380V
  • Transport Package：Plastic Cover or Wooden Cases or Others
  • Trademark：YUEFENG

Base Info

  • Model NO.：LMB-A-120
  • Origin：Jinan, Shandong, China
  • Production Capacity：100 Sets Per Month

Description

Basic Info.

Model NO. LMB-A-120 Origin Jinan, Shandong, China Production Capacity 100 Sets Per Month

Product Description

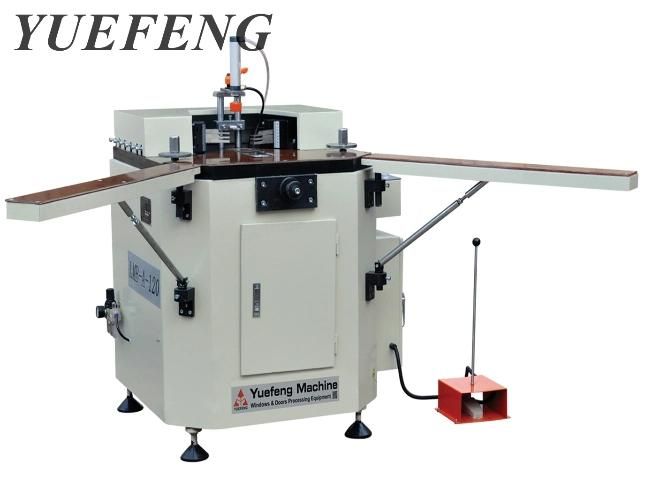

LMB-A-120    Corner Crimping MachineHighest Quality Corner Crimping Machine for Aluminum Window and Door Making
 Used for 90°corner combining.
Adjustable corner combining tool that achieve multi-position corner combining.
Inner locator can sit below the worktable, easy operation.
Hydraulic system supplied large punching and riveting force.
Left and right punching heads adopt hard synchronous feeding device, thus makes the connection more firmly.
It has features of easy operation, reliable performance and convenient maintenance.
Technical Parameter:
ModelLMB-A-120
Input voltage380V 50Hz
Input power2.2kw
Air pressure0.4~0.6MPa
Air consumption20L/Time
Oil capacity20L
Profile width≤120mm
Combining cylinder movement98mm
Locator adjustment range80mm
Overall dimension1300×1200×1300mm
