• Model NO.：Various Model
• Certificate：ISO9001, ISO14000, CE
• Color：Can Be Customerized
• After Sale Service：for The Whole Using Life
• Spare Parts：Supply for The Whole Year Freely
• Capacity：1-2500tpd
• Testing：We Offer
• Experience：More Than 50 Years
• Warranty：One Year
• Transport Package：by Bulks, Spare Parts Are Packed in Wooden Box
• Specification：ISO9001, ISO14000, CE
• Trademark：ZK
• Origin：Henan, China (Mainland)
• Production Capacity：100-2500tpd

Product specifications(m)

Kiln dimensions

Capacity(t/d)

Rotation speed(r/min)

Motor power(kw)

Total weight(t)

Note

Diameter(m)

Length(m)

Obliquity(%)

Φ2.5×40

2.5

40

3.5

180

0.44-2.44

55

149.61

Kiln with shaft cyclone preheater

Φ2.5×50

2.5

50

3

200

0.62-1.86

55

187.37

----

Φ2.5×54

2.5

54

3.5

204

0.48-1.45

55

196.29

----

Φ2.7×42

2.7

42

3.5

320

0.10-1.52

55

198.5

----

Φ2.8×44

2.8

44

3.5

400

0.437-2.18

55

201.58

Outside disassemble kiln

Φ3.0×45

3

45

3.5

500

0.5-2.47

75

210.94

----

Φ3.0×48

3

48

3.5

700

0.6-3.48

100

237

Outside disassemble kiln

Φ3.0×60

3

60

3.5

300

0.3-2

100

310

Alumyte-alumina forge kiln

Φ3.2×50

3.2

50

4

1000

0.6-3

125

278

Outside disassemble kiln

Φ3.3×52

3.3

52

3.5

1300

0.266-2.66

125

283

Kiln with preheater precalcine

Φ3.5×54

3.5

54

3.5

1500

0.55-3.4

220

363

Kiln with preheater precalcine

Φ3.6×70

3.6

70

3.5

1800

0.25-1.25

125

419

Generating kiln for using ofterheat

Φ4.0×56

4

56

4

2300

0.41-4.07

315

456

Kiln with preheater precalcine

Φ4.0×60

4

60

3.5

2500

0.396-3.96

315

510

Kiln with preheater precalcine

Φ4.2×60

4.2

60

4

2750

0.4-3.98

375

633

Kiln with preheater precalcine

Φ4.3×60

4.3

60

3.5

3200

0.396-3.96

375

583

Kiln with preheater precalcine

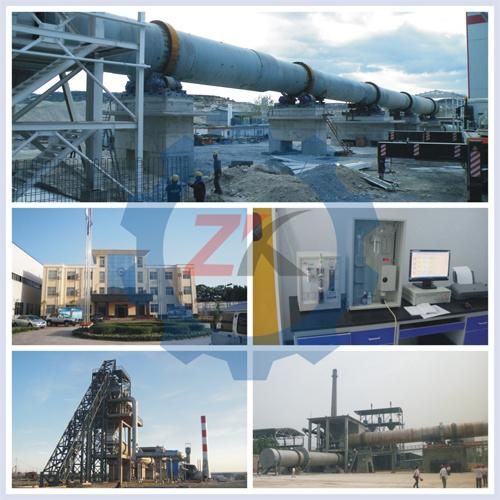

The energy-saving rotary kiln:

A) There is a vertical preheater in the end of rotary kiln, make the best of the high temperature combustion gas to preheating the materials, so that materials in the preheater was partially decomposed, so that System production capacity increased by 40%, and thermal efficiency increased by 30% comparing the traditional process.



B) Regarding the cooling system of the end high active lime product, We apply the modern advanced technology of the new type vertical cooling machine, The device is new fourth generation reference to the foreign upright cooler specially designed products in late nineties, The device machine running smoothly, with a strong quenching effect, the cooling effect is obvious, the increased activities of the lime is extremely beneficial

C) Flue gas treatment system configuration and high efficiency heat exchanger bag filter, replacing the traditional electrostatic precipitator, the measures will not only reduce the use of highly efficient heat exchanger preheater exhaust gas temperature, increase air temperature, to reduce the volume of the combustion gas, bag dust collector replaced the electrostatic precipitator.

1. Select excellent installation team or installation service personnel for you;

2. Provide you with operating and training services;

3. Help with the equipment commissioning, and solve problems in trial operation;

4. Check and acceptance service for single equipment or a whole production line;

5. Service items including follow-up visit, customer satisfaction surveys and so on;

6. Timely provide you with necessary accessories after acceptance;

7. Provide you with warranty services of repair, replacement and refund if conditions are fulfilled.

8. Help you solve other problems.
