Building Material Making Machinery

Lzj-120c Synchronous CNC Machine Set Angle Machine of Aluminum Doors and Windows for Production Line Adjustable Positioning CNC Angle

Shandong Zunbo CNC Equipment Co., Ltd.
  • After-sales Service:Lifetime Maintenance
  • Warranty:1 Year, 1 Year
  • Condition:New, New
  • Certification:ISO, GS, CE, RoHS, ISO 9001
  • Automatic Grade:Automatic
  • CNC or Not:CNC

Base Info

  • Model NO.:Lzj-120c
  • Voltage:380V
  • Process Usage:Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
  • Numerical Control:CNC,Mnc
  • Performance Classification:MID-Range CNC Machine Tools
  • After-Sales Service:Lifetime Maintenance Service
  • Application:Window
  • Control Method:Hydraulic System Control
  • Specification:1850*1680*1210mm
  • Trademark:Zunbo
  • Origin:China

Description

Basic Info.

Model NO. Lzj-120c Voltage 380V Process Usage Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools Numerical Control CNC/Mnc Performance Classification MID-Range CNC Machine Tools After-Sales Service Lifetime Maintenance Service Application Window Control Method Hydraulic System Control Specification 1850*1680*1210mm Trademark Zunbo Origin China

Product Description

Product Description:

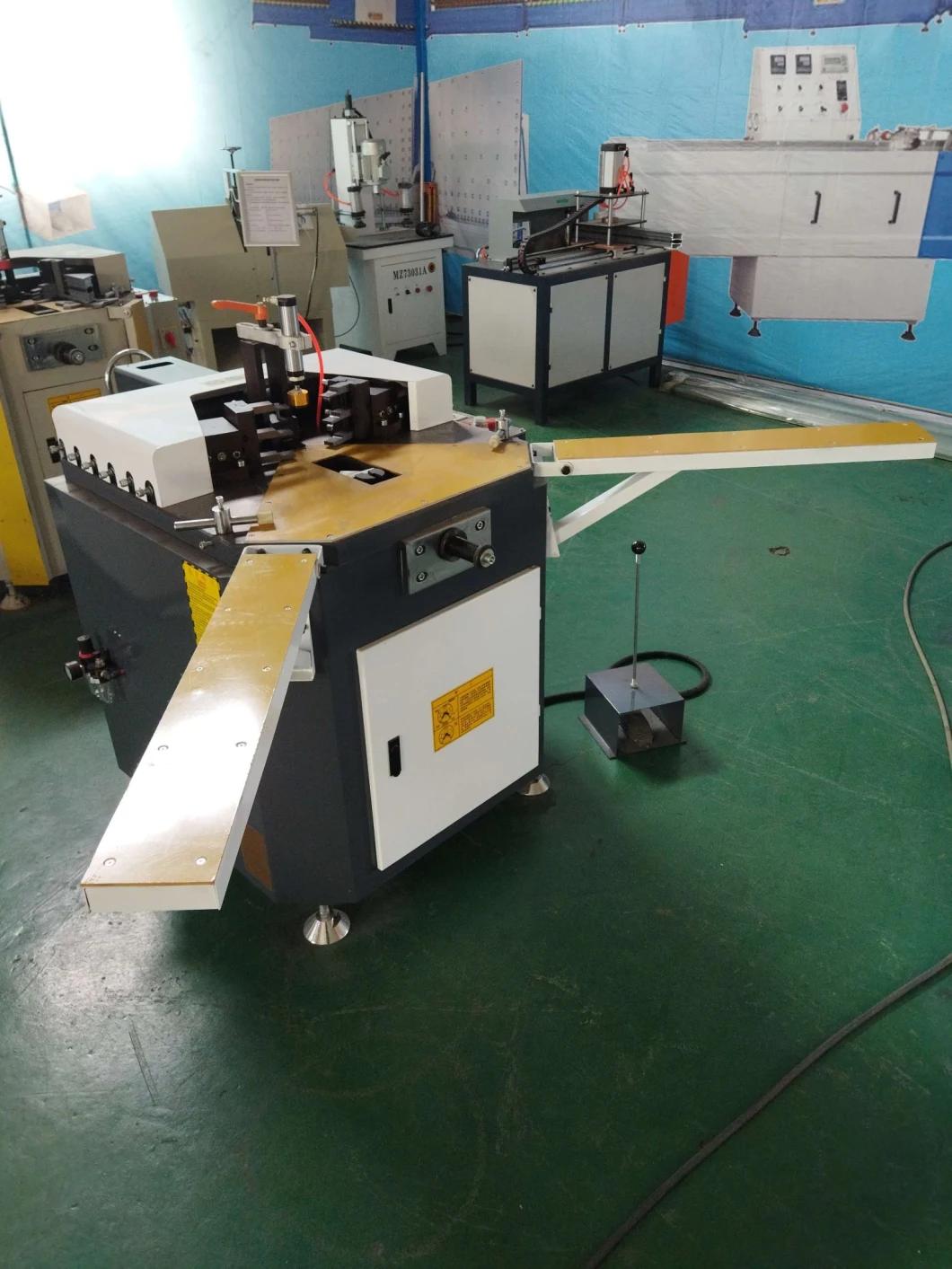

Model: LZJ-120C Adjustable Positioning
Suitable for 90° connection of corner structure aluminum doors and windows.
Adjustable corner combining tool can do multiposition corner.
The internal positioning can be raised and lowered below the worktable for easy access to raw materials.
Equipped with hydraulic system to provide power to make the work stable and reliable.
The left and right punches adopt a mechanical synchronization mechanism to make the adjustment more convenient and simple.
Simple operation, reliable performance, advanced technology, easy maintenance.


Technical Parameter:

Power Supply: 380 V  50 Hz
Input Power: 2.2 kW
Air Pressure: 0.5-0.8 Mpa
Air Consumption: 2 L/min
Rated Oil Pressure: 16 Mpa
Processing profile height: 90 mm
Group angle cylinder movement stroke: 85 mm
Total Angular Pressure: 48 kN
