• Model NO.：QT4-30
• Vibration Force：30kn
• Pallet Size：850*550*20mm
• Machine Weight：1900kgs

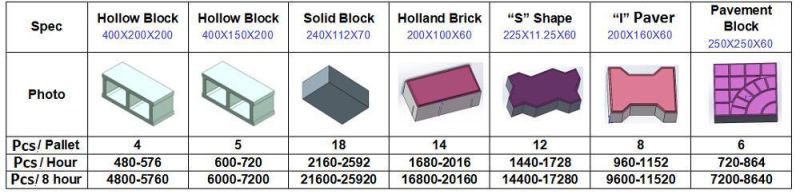

• Products：Hollow,Solid,Pavers,Houdis,Curb Stone
• Worker：3-4 Workers
• Related Accessories：Jq350d Mixer and 800PCS Pallet
• Transport Package：Container
• Specification：1580*1100*2100mm
• Trademark：XINMING
• Origin：Shandong. China
• HS Code：8474802000
• Production Capacity：500PCS,Year

Detail Presentation

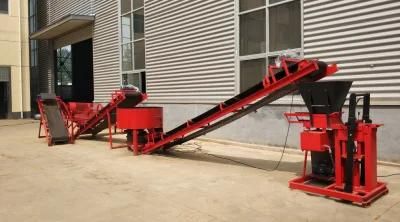

Driving FormQT4-30 block making machine has two style of driving form.Diesel and electric.And you can choose one style according to your condition.
 CharacteristicHydraulic System:The system consists of imported components and seals with high dynamic performance proportional valves. The action of key cylinders can be operated through the regulator of flow and pressure according to the working requirement.The main frame is wide for the convenience of mold filling, so more blocks can be made. In order to get even pressure, three oil reservoirs are used, which raise the pressure to as high as 100t. Moreover, the smallest reservoir in the middle increases the operating speed of the left and right ones respectively, thus improving the productivity.
Vibration System :Frequency conversion motor drive the vibrating case, easy to obtain ideal vibration force, vibration frequency and amplitude, can produce high quality block. Unique double-vibration box drives all in one vibration table to make the deviation of amplitude lower, more even so as to guarantee the consistency firm and durable.

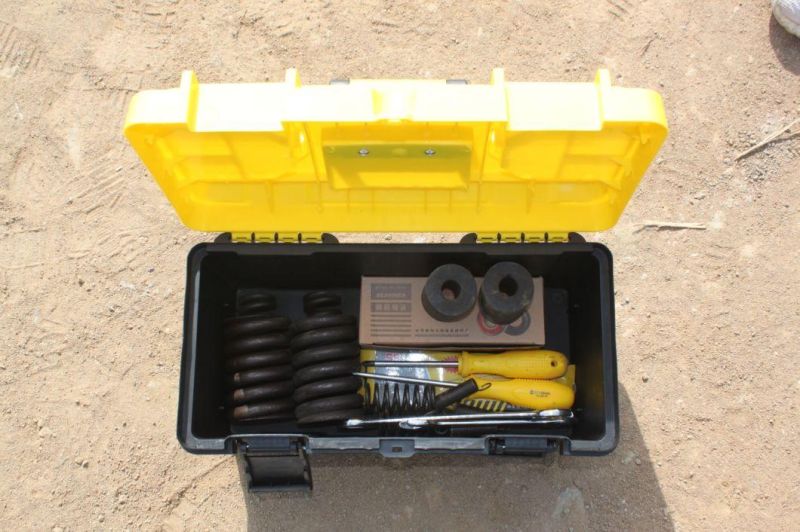

TOOLS:we offer these tools for free.We can also give you the videos and instruction about insallation and operation and you can give us video call when the machine faults you can't handle it .We are responsible for all the repairs that caused by our quality problems within two year's warranty.We will make every effort to solve your problems Technical SpecificationCycle 30-35 secondVibration Force30KNPallet Size850*550*20mmMachine Size1580*1100*2100mmMachine Weight1900KGSLand AreaShaded Area:10-20m2  Stoking Area:200-500m2ProductsHollow/Solid Blocks,Pavers,Houdis,Curb StoneWorker3-4 WorkersRelated AccessoriesJQ350D Mixer and 800Pcs Pallet Production Capacity
