Double Head Aluminum Window Making Machine
JINAN YUEFENG MACHINERY CO., LTD.- Condition：New
- Certification：ISO, CE
- Automatic Grade：Automatic
- CNC or Not：not CNC
- Voltage：380V
- Model：Ljz2-450*3800g
Base Info
- Model NO.：LJZ2-450×3800G
- Input Voltage：380V 50Hz
- Input Power：3.0kw
- Air Pressure：0.4~0.6MPa
- Air Consumption：210L,Min
- Spindle Speed：3200r,Min
- Cutting Length：360~3800mm
- Cutting Width：<120mm
- Cutting Height：<200mm
- Saw Feeding Speed：0~3m,Min
- Transport Package：Plastic Film or Depends on Customers
- Specification：4800*1400*1500mm
- Trademark：Yuefeng
- Origin：Jinan Shandong, China
- HS Code：8477800000
- Production Capacity：30 Sets,Month
Description
Basic Info.
Model NO. LJZ2-450×3800G Input Voltage 380V 50Hz Input Power 3.0kw Air Pressure 0.4~0.6MPa Air Consumption 210L/Min Spindle Speed 3200r/Min Cutting Length 360~3800mm Cutting Width <120mm Cutting Height <200mm Saw Feeding Speed 0~3m/Min Transport Package Plastic Film or Depends on Customers Specification 4800*1400*1500mm Trademark Yuefeng Origin Jinan Shandong, China HS Code 8477800000 Production Capacity 30 Sets/MonthProduct Description

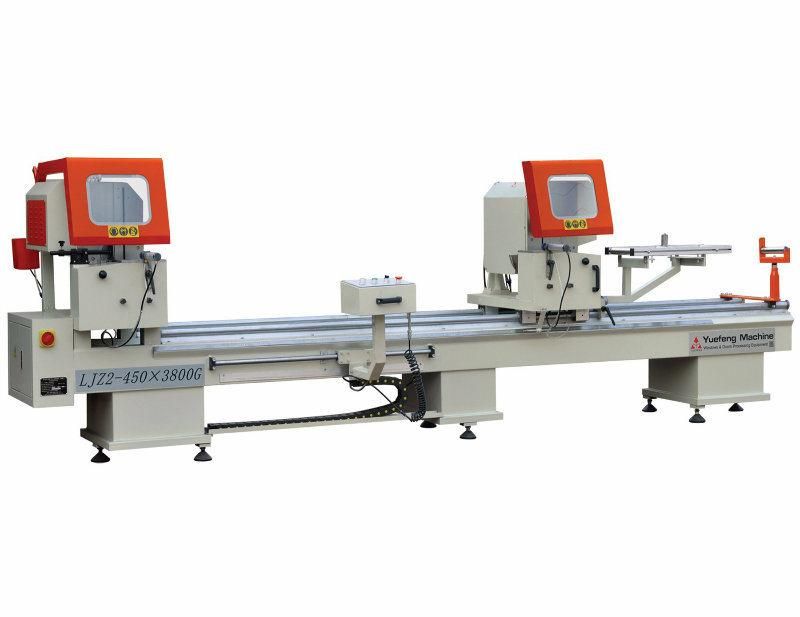

LJZ2-450×3800G Double Mitre Saw
>Used for cutting aluminum and PVC at 45° 90°.>The right head adopts linear guide rails result in uniform speed feeding and high accuracy.
>Two head work independently or together.
>Uniform speed feeding and smooth motion due to airdraulic damping cylinder.
>Automatic protection guard results safe operation.
Technical Parameter:
| Model | LJZ2-450×3800G |
| Input voltage | 380V 50Hz |
| Input power | 3.0Kw |
| Air pressure | 0.4~0.6MPa |
| Air consumption | 210L/min |
| Spindle speed | 3200r/min |
| Cutting length | 360~3800mm |
| Cutting width | ≤120mm |
| Cutting height | ≤200mm |
| Cutting angle | 90° 45° -45° |
| Saw feeding speed | 0~3m/min |
| Saw blade standard | φ450×4×φ30×Z120 |
| Overall dimension | 4800×1400×1500mm |
