• Model NO.：sandwich panel machine
• Usage：Roof, Wall
• Transmission Method：Machinery
• Fillet Joint：Z-Lock
• Color：as Your Requeast
• Total Weight：More Than 16t
• Cutting：Seal Cutting
• Operating System：Automatic
• Total Power：45kw
• Thickness of The Interlayer：50-250mm
• Working Thickness：0.3-0.8mm
• Working Width：1250mm

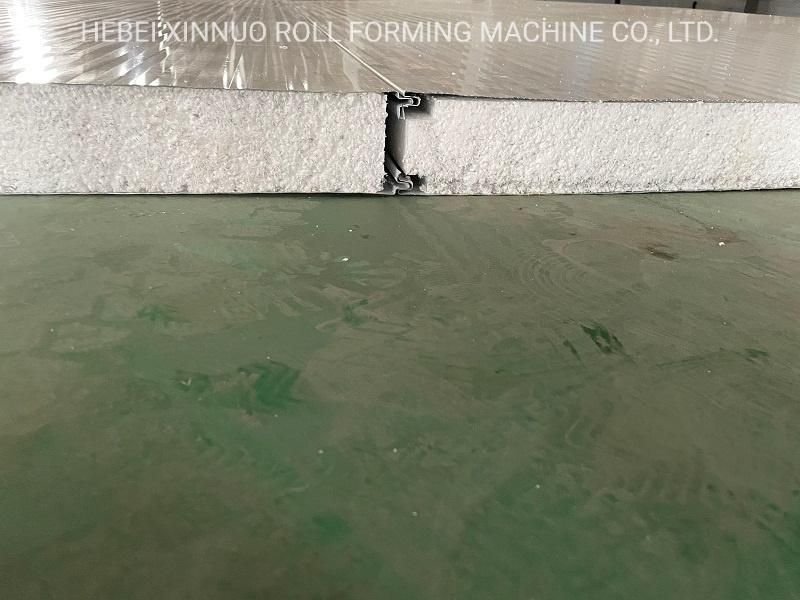

• Product Name：Z-Lock EPS and Rockwool Sandwich Panel Production
• Transport Package：Exported Packing
• Specification：16*1.5*2.4M
• Trademark：xinnuo
• Origin：China
• HS Code：84552210
• Production Capacity：10sets,Month

Overview Product Description

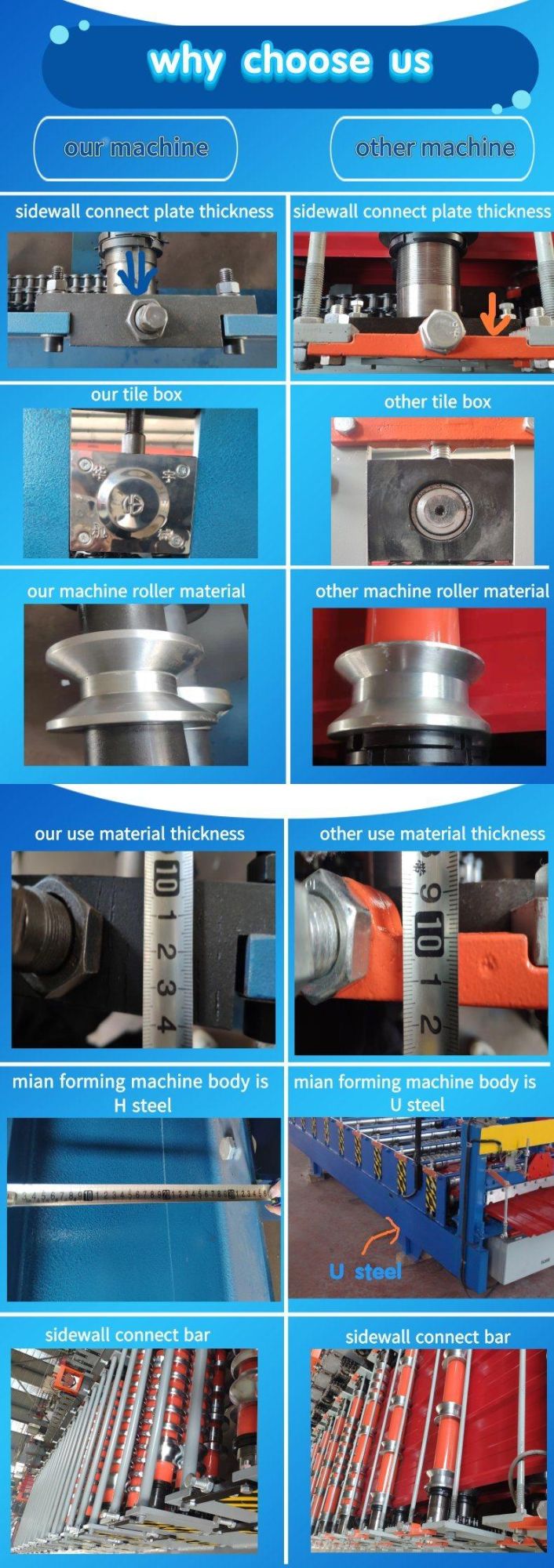

Features
1. The motor power of the sandwich panel roll forming line is 4kw, and the production speed reaches 6m/min. With the stepless speed regulation system, the efficiency of the roll forming line is optional within 0-6m/min.
2. When producing EPS sandwich panel, the speed is generally controlled at 2-6 m/min. It will be slightly lower for making rock wool board (depends on actual needs)
3. The composite panel production line is equipped with K-9 glue metering pump, featuring low rotating speed and high accuracy. The glue is fed at a rate of 0.1-2.0 kg/min. It is controlled by frequency converter.
4. The thickness of the composite panel the roll forming unit can produce is varied from 50mm to 250mm. By adjusting the upper and lower rack, and the distance between the cutter holder and the material feeding rack, we can get sandwich boards with different thickness and specifications.
5. Total installed capacity: 34KW; total weight (including accessories): 17.5t.

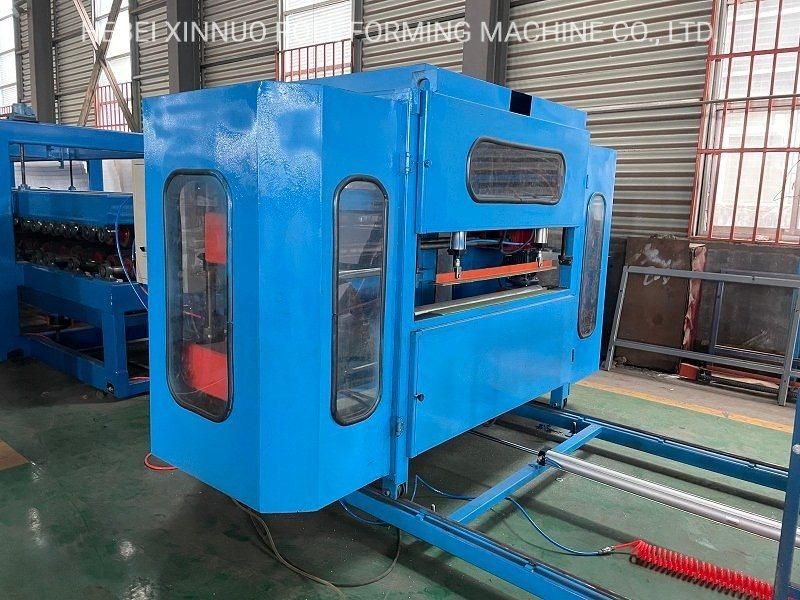

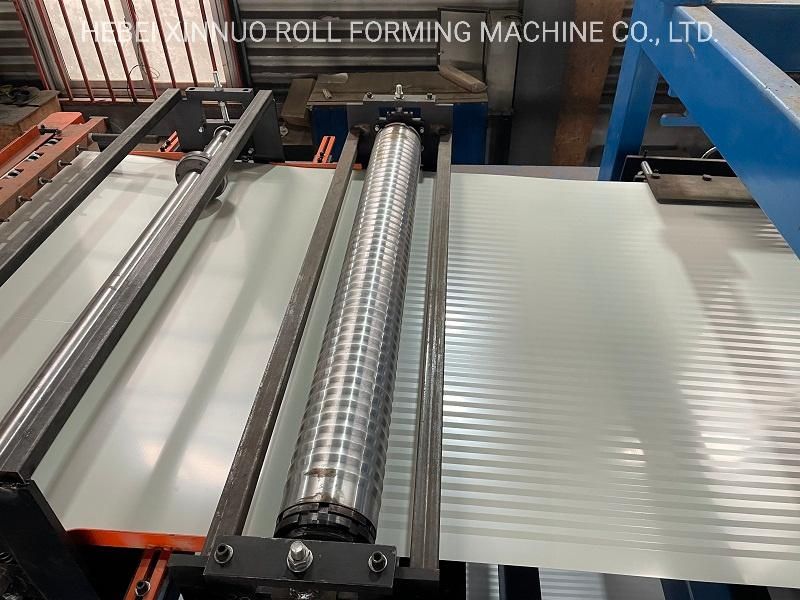

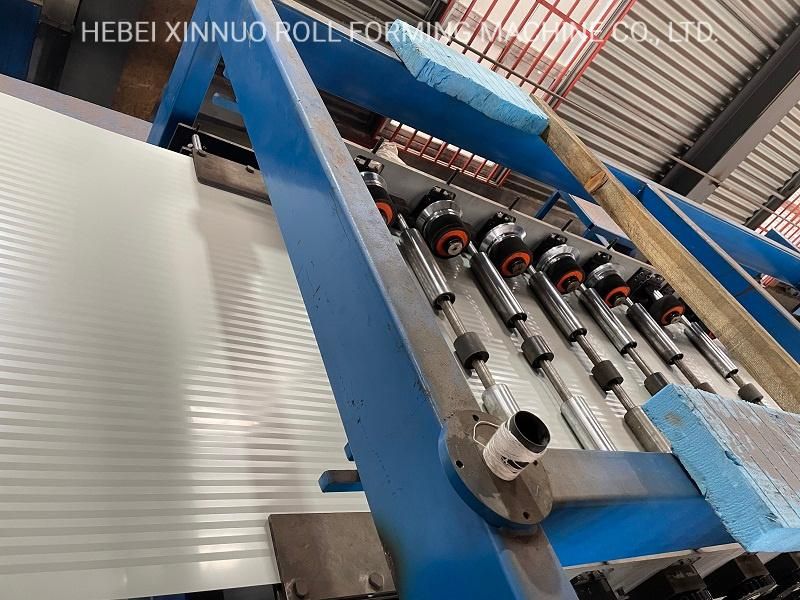

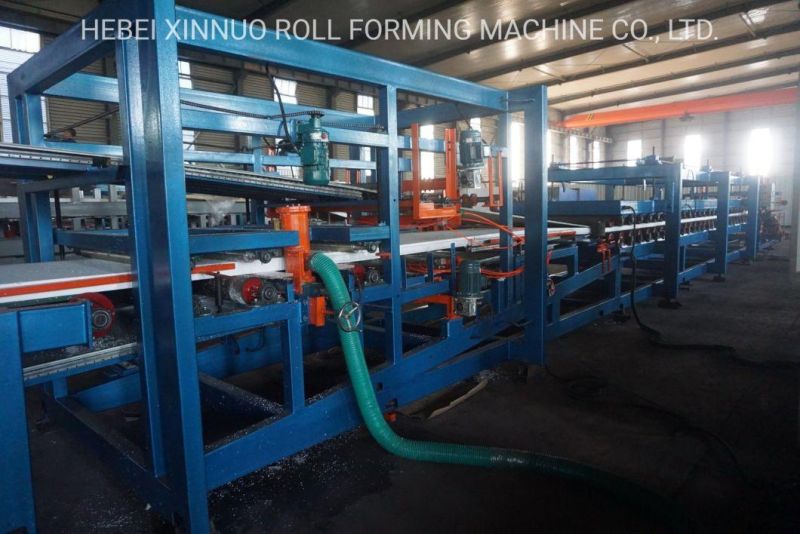

6. Dimension of the panel roll forming machine: 12500 (16000 for rock wool boards) X2200X2800; the roll former for 5 type EPS sandwich panel adopts 23 rubber shafts and 160X80 square tubes with thickness of 6mm; the roll former for 7 type composite rock wool panel employs 45 rubber shafts, and upper and lower independent glue supply. It is equipped with 1.7m rock wool panel conveyor belt, with the diameter of the drive shaft to be 50mm; length of the machine frame is up to 9m; the roll former is welded with 180X80 square tubes which thickness is 8mm.



Requirements for Factories:
The factories where our EPS sandwich panel production line are applied can be either flatroof or sloped-roof type. The height of the cornice should be larger than 5m, and the effective width should be at least 45m. The floor of the factory should be flat and concrete. For foundation of the roll forming line, it is required to be to be 380V, and the total installed power is 34kw. It is necessary for the factory to be equipped with 0.4-0.6MPa compressed air supply and illumination devices. The roll forming machine shares the same power supply with the auxiliary devices. The fluctuation of voltage should be no more than 10%, or it may lead to an abnormal running of the system.

The stroke is no less than 29m, the load for a lifting process is larger than 5000kg, and the lifting height is no less than 3.9m. For daily production and maintenance, about 6-10 people are needed, with 3-4 operators for some core processes included.



Accessories List of 5 Type Composite Roof And Wall Cladding Panel Machineadjust spanner3piecesfilter element2piecesbig glue head2piecesbulkhead glue4piecesglue joint4piecessteel sheet chuck2piecesscrew dependsmachine tool pad iron16setsbrake plate 3 setsM16×140 bolt16piecesaxes1pieceM16 nut16piecessteel wire tube1pieceheating tube8piecesheating tube ceramics end 16setsglue pipe6piecesM8×35 inner hexagon screws30piecesφ10×80 taper pin1piecedelivery rack1setmainframe1setcutting rack1settile plate wheel1setovertravel-limit switch2piecespneumatic elements1 setglue channel(4long 2short)6pieceslarge tray1pieceladder1pieceM16×40 outer hexagon screws8piecesColor clip   4 setsdischarge rack1piece05-06 frame1setrod12pieces00 frame1piecehanger1piece4 m foam holder4pieceslong cylinder1piececlip lock lever2piecesbourdon spring1piece1220 roller8piecesroller axes16pieces6004 bearing 16setsM20 nut24piecescutting under frame1 piece
