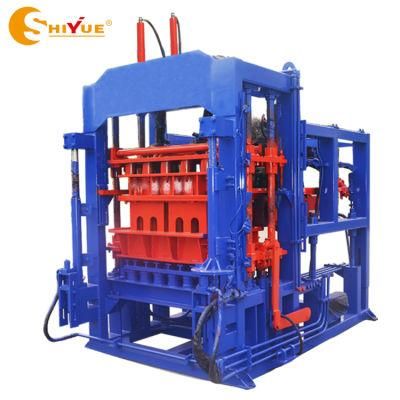

Qt4-15 New Hollow Block Machine in Bacolod City
Shandong Shiyue Intelligent Machinery Co., Ltd.- Certification：CE, ISO
- Customized：Customized
- Automatic Grade：Automatic
- Type：Hydraulic Shock
- Product Name：Qt4-15 Block Making Machine in Kenya
- Pallet Size：900*500mm
Base Info
- Model NO.：QT4-15
- Color：Client Requirement
- Vibration Frequency：2800-4500 ( R,Min)
- Weight：4t
- Block Type：Hollow Block,Solid Block,Paver,Curbstones,etc
- Molding Cycle：15s
- Vibration Type：Platform Vibration
- Raw Material：Cement,Sand,etc
- Power：27.5kw
- Transport Package：Standard Export Package
- Specification：7100x1600x2610mm
- Trademark：SHIYUE
- Origin：China
- HS Code：8474802000
- Production Capacity：5000set,Year
Description
Technical Parameters
Overall Dimension
7100*1600*2610mm
Rated Pressure
21MPa
Main Vibration Form
Platform Vibration
Vibration Frequency
2800~4500 ( r/min)
Pallet Size
Molding cycle
15-25 (s)
Overall Power
27.5KW
Vibration Force
60KN
Total Mass
5.8T
Demolding method
Hydraulic
General water consumption
8T/Day
Factory Area
500m2
Applied Products
Concrete blocks, hollow/solid blocks, pavers, interlocking blocks , curbstone,
colored pavers ,etc.
Raw Material
Crushed stone, sand , cement, dust, and fly ash, gravel, slag, and other raw
material , etc.
QT4-15 block making machine in kenya
1.This is a fully automatic production line.easy to operate and save manpower.
2.This machine can serve several purposes can produce hollow blocks,solid blocks,pavement bricks,
curbstones,riverside bricks,revetment bricks,grassed bricks and so on with different moulds.
3.All the procedures are operated by PLC and equip with out-and-in date device to realize person-machine conversation.
