• Model NO.：CLZ3F-300*100
• Input Power：2.25kw
• Cutting Diamter：Dia.5,8mm
• Diameter of The Three Hole Drilling Head：Dia12mm
• Copy-Routing Range：300*100mm
• Weight：About 260kg
• Application：Copy Routing Machine
• Usage：Aluminium Window Making Machine
• Applicable Material：PVC, UPVC, Aluminum
• Machine Type：Single Head
• Color：Gray or Customization
• After-Sales Service：Online Support, Free Spare Parts, Field Installati
• Advantage：Milling All Kinds of Lock Holes
• Drilling Head Distance：21.5*21.5mm
• Transport Package：1.Simple Stretch Film Packaging; 2.Professional E
• Specification：1000mm*1130mm*1600mm
• Trademark：Truepro
• Origin：Jinan, Shandong
• Production Capacity：15 Set,Sets Per Month

Basic Info.

Model NO. CLZ3F-300*100 Input Power 2.25kw Cutting Diamter Dia.5/8mm Diameter of The Three Hole Drilling Head Dia12mm Copy-Routing Range 300*100mm Weight About 260kg Application Copy Routing Machine Usage Aluminium Window Making Machine Applicable Material PVC, UPVC, Aluminum Machine Type Single Head Color Gray or Customization After-Sales Service Online Support, Free Spare Parts, Field Installati Advantage Milling All Kinds of Lock Holes Drilling Head Distance 21.5*21.5mm Transport Package 1.Simple Stretch Film Packaging; 2.Professional E Specification 1000mm*1130mm*1600mm Trademark Truepro Origin Jinan, Shandong Production Capacity 15 Set/Sets Per Month

Product Description

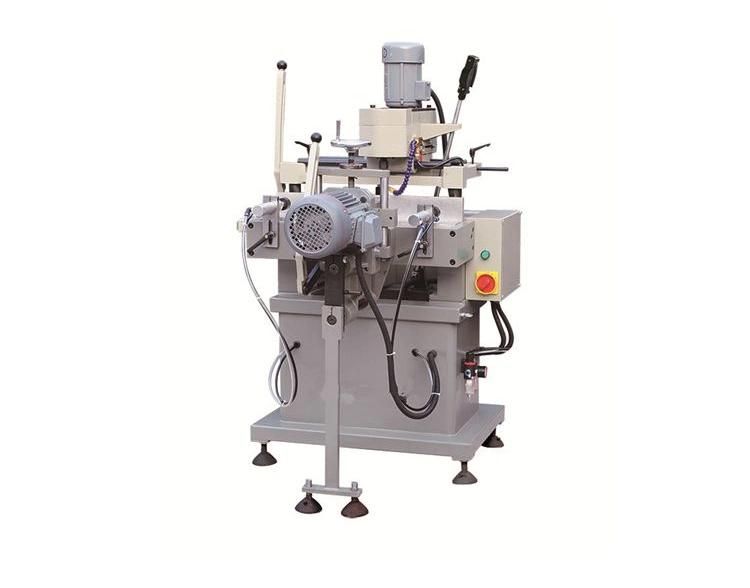

Aluminum window machine copy router milling and drillingmachine for aluminum profile



EQUIPMENT FEATURES:- Used for copy-routing processing various kinds of holes, grooves and water-slots.- It has features of compact structure and small volume, the air pressure drives the clamping- It can achieve continuous copy-routing milling, easy operation and safety.
Main Technical Parameter:

Model	CLZ3F-300*100	Power supply	380V 50Hz
Air pressure	0.5-0.8MPa	Diameter of the three-hole drilling head	Ф12mm
Input power	2.25kw	Centers distance of the three-hole drilling head	21.5*21.5mm
Cutter Diameter	Ф5,Ф8mm	Copy-routing range	300×100mm
Overall dimension	1000*1130*1600mm	Weight	about 260Kg

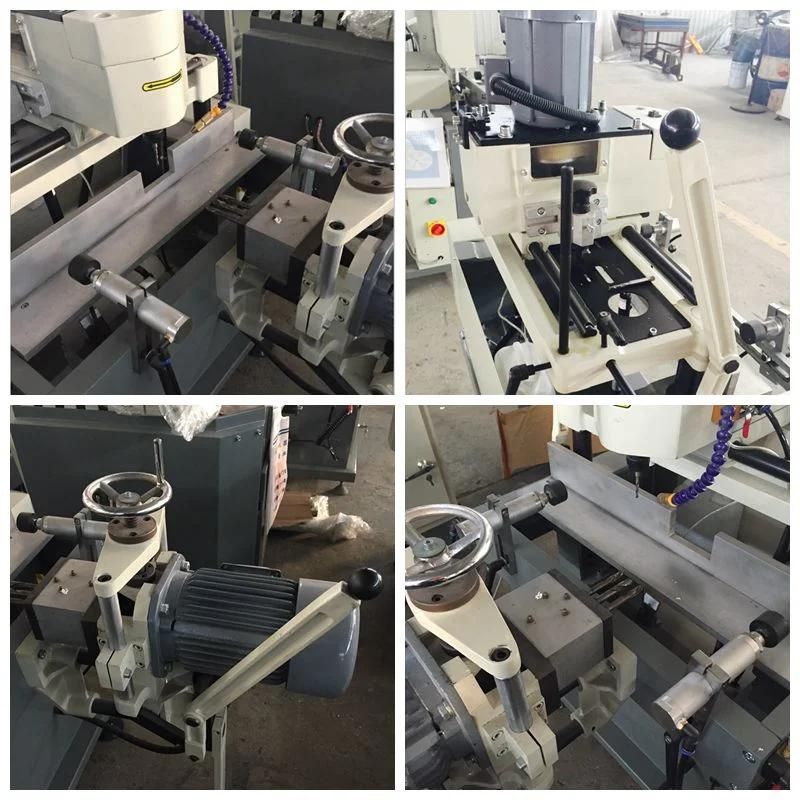

Details

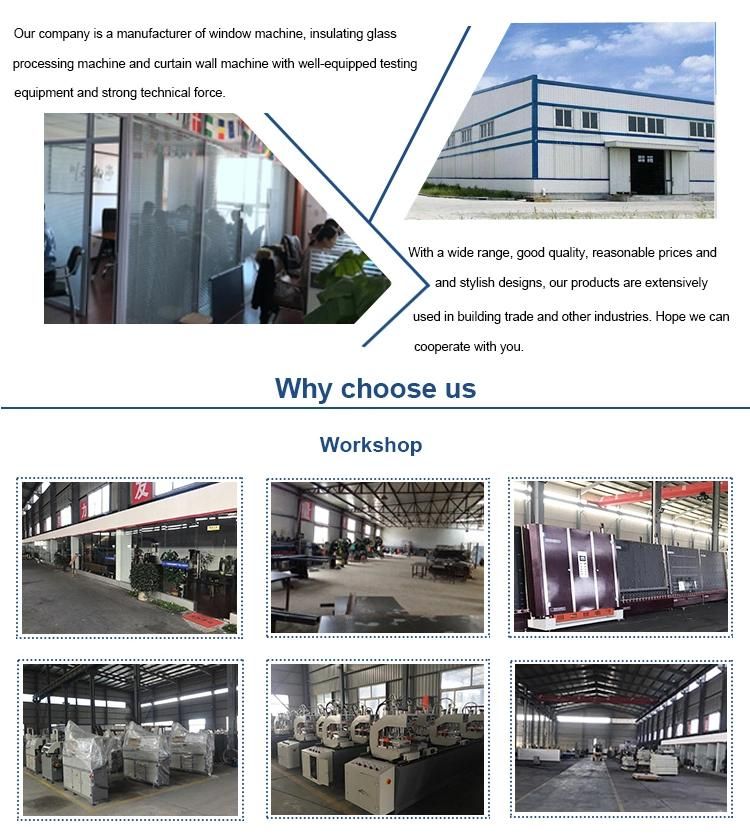

Company Information



FAQ

1.Q:Are you a manufacturer?
 A: Yes,we have been in providing the professional products in this field for 10 years.

2.Ask:how to install the machine ?
A:we can intrust the install the machine by vedio, email ,picture.....if large project ,
we can arrange the worker help you to install it in your country .

3.Q :How you pack the products ?
A: Normally as the export standard packaging or as you required.

4.Q: What is your available port of shipment?
A:Qingdao port,shanghai,tianjin,guangzhou etc.

5.Q: Is customized available ?
A: Yes, according to your detailed drawings you provide

7. Q:After Sale Service
24 hours technical support by phone, email or skype (email or skype) .
12 months warranty period
Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.
By offering this support, we make sure the customer start the business smoothly, to realize win-win cooperation

8.Q: Are you trading company or manufacturer ?
A: We are factory and welcome to visit us at any time.

9.Q: How long is your delivery time?
A: Generally single tanks need 15-30 days, for whole plant need 30-50days.

10.Q: Do you have CE and UL certification?
A: Yes.
