Qmy4-45 Hot Sale Mobile Manual Brick Making Machine of China Manufacture

Linyi Duyue Import and Export Co., Ltd.
  • Vibration Force:30kn
  • Power:12HP
  • Condition:New
  • Method:Vacuum Extruder
  • Molding Style:Vibration
  • Total Weight:1200kgs

Base Info

  • Model NO.:QMY4-45
  • Vibration Frequency:Max.4000 R,M
  • Rated Pressure:30MPa
  • Warranty:18 Months
  • Voltage:No Need
  • Shape Cycle:40-45seconds
  • Transport Package:Container
  • Specification:1450*1400*1200MM
  • Trademark:DUYUE
  • Origin:Linyi City, China
  • HS Code:8474802000
  • Production Capacity:300 Sets Per Year

Description

Basic Info.

Model NO. QMY4-45 Vibration Frequency Max.4000 R/M Rated Pressure 30MPa Warranty 18 Months Voltage No Need Shape Cycle 40-45seconds Transport Package Container Specification 1450*1400*1200MM Trademark DUYUE Origin Linyi City, China HS Code 8474802000 Production Capacity 300 Sets Per Year

Product Description

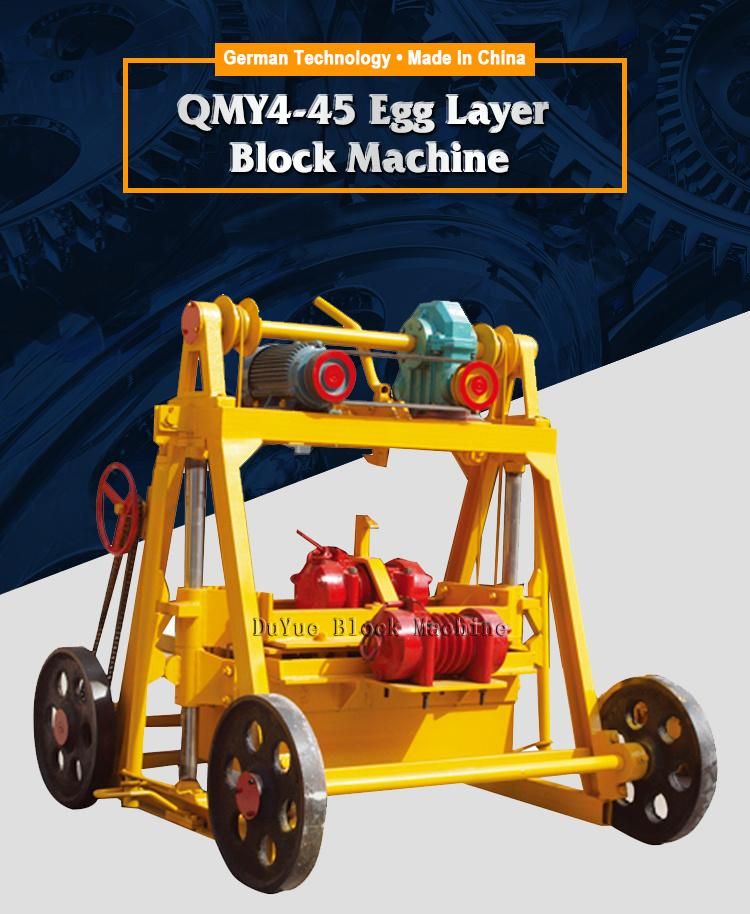

Qmy4-45 Hot Sale Mobile Manual Brick Making Machine of China Manufacture
Qmy4-45 Hot Sale Mobile Manual Brick Making Machine of China Manufacture
∨Production description∧

This block Machine is manufactured on the base of technical modifications to the original block shaping machines, that is changing the former one-time-vibration into twice-vibrations of molding core, so the block density becomes higher, shaping speed quicker and block strength more even, this model of machine can suitable to the customers who have any kinds of ceasing concrete working sites, and the consumption carriage can be reduced.

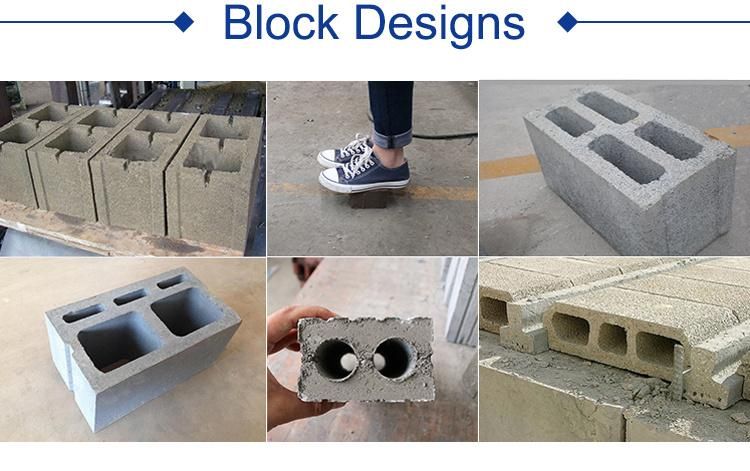

1. QMY4-45 can produce sizes of hollow blocks and solid bricks by changing moulds.
2. Do not need pallet, Reduce investment.
3. Easy opeation, easy maintance.
4. Mould adopt Carburizing heat treatment technology, so life is double than ordinery.

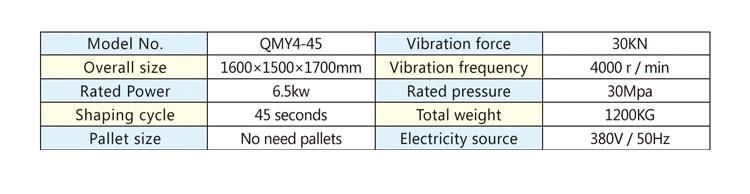

∨Main technical parameters∧
Qmy4-45 Hot Sale Mobile Manual Brick Making Machine of China Manufacture

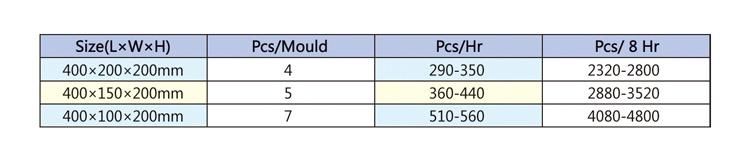

∨Theoretical production efficiency∧
Qmy4-45 Hot Sale Mobile Manual Brick Making Machine of China Manufacture
Qmy4-45 Hot Sale Mobile Manual Brick Making Machine of China Manufacture
Qmy4-45 Hot Sale Mobile Manual Brick Making Machine of China Manufacture
Qmy4-45 Hot Sale Mobile Manual Brick Making Machine of China Manufacture
Qmy4-45 Hot Sale Mobile Manual Brick Making Machine of China Manufacture
