Building Material Making Machinery

Combined Stud and Track Roll Forming Machine

Cangzhou Nexus Machinery Co., Ltd.
  • Warranty:1 Year
  • Certification:CE, ISO9001
  • Customized:Customized
  • Condition:New
  • Control Type:Electric
  • Automatic Grade:Automatic

Base Info

  • Model NO.:60-27-18
  • Product Name:Combined Stud and Track Roll Forming Machine
  • Coil Material Thickness:0.3-0.8mm
  • Processing Material:Galvanized Steel
  • Roller Material:Cr12MOV
  • Design Type:Memorial Arch
  • Transport:by Hard Gear
  • Power of Machine:3kw
  • Hydraulic Power:3kw
  • PLC Brand:Delta( or as Your Requirement)
  • Weight of Machine:2.8 Tons
  • Transport Package:Plastic Film
  • Specification:70-120
  • Trademark:Nexus Machinery
  • Origin:Cangzhou
  • HS Code:8455221000
  • Production Capacity:10

Description

Basic Info.

Model NO. 60-27-18 Product Name Combined Stud and Track Roll Forming Machine Coil Material Thickness 0.3-0.8mm Processing Material Galvanized Steel Roller Material Cr12MOV Design Type Memorial Arch Transport by Hard Gear Power of Machine 3kw Hydraulic Power 3kw PLC Brand Delta( or as Your Requirement) Weight of Machine 2.8 Tons Transport Package Plastic Film Specification 70-120 Trademark Nexus Machinery Origin Cangzhou HS Code 8455221000 Production Capacity 10

Product Description

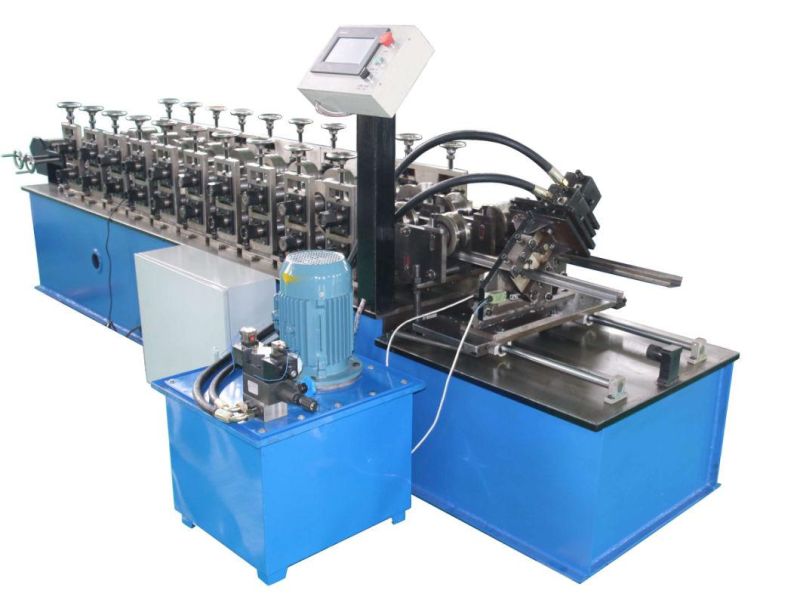

Combined Stud And Track Roll Forming Machine

 The difference between the Combined Stud And Track Roll Forming Machine and the c z u purlin roll forming machine

1 The biggest difference between the c u w profile stud and purlin is that the thickness. The C U H purlin often used as the support of the building.The thickness range of the purlin is :2.0-4.0mm.while the c u w L light steel stud is :0.3-0.8mmso the c z u purline machine is much stronger , with big electric power and thick blade which can cut the purlin .

2  The c z u w channel stud is often used in ceiling and wall structure. The C Z Purlin and U purlin are used for supporting the ceiling from the ground.

Combined Stud and Track Roll Forming Machine

Combined Stud and Track Roll Forming Machine


What is the specifications of our Combined Stud And Track Roll Forming Machine?
Name: Combined Stud And Track Roll Forming Machine
Raw material: Galvanized
Thickness: 0.3-0.8mm
Inner Diameter: 450-550mm
Max Coil width: 300mm
Capacity: 1.5T
Forming steps: 10 rollers
Shaft diameter: 40mm
Design type: Memorial arch
Roller material: GCr12MoV
Steelshaft material: 45# steel
Work speed: 0-25m/min
Transport: By gear
Power of main machine: 3kw

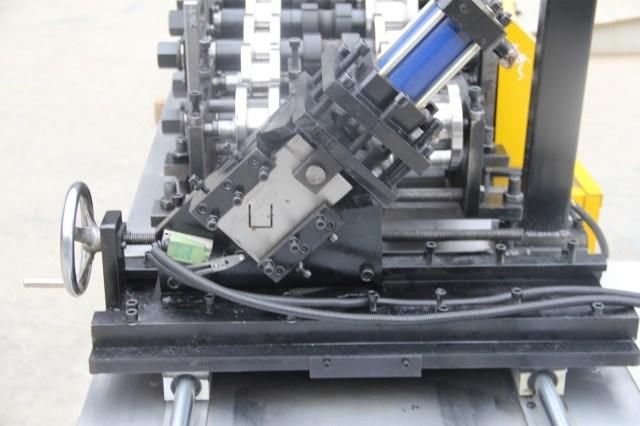

Type of cutting: HydraulicCutting
Tolerance: ±1mm
Cutter: Gcr12
Hydraulic oil: 46#
Hydraulic power: 3kw
PLC Brand : Delta(as your requirement)


Combined Stud and Track Roll Forming Machine

Combined Stud and Track Roll Forming Machine
Combined Stud and Track Roll Forming Machine

ABOUT US:

Cangzhou Nexus Machinery Co.,Ltd is experienced manufacturer & exporter of cold roll forming machine with ISO quality system.
Our R&D department is staffed with senior engineers who has more than 20 years experience in metal forming machine industry, so we are able to assist customers with professional designing and solution.
Our range of products: roof tile roll forming machine, cladding roll forming machine, metal decking roll forming machines, C/U/Z/W/L steel purlin roll forming machine etc. We also can supply steel coils, roof panels to suit diverse requirements of our global customers.
Today, we have exported our machines to America, Chile, Mexico, Bolivia, Brazil, Colombia, Argentina, Ecuador, Honduras, Fiji, Papua New Guinea, Kuwait, Syria, Oman, Saudi Arabia, U.A.E, Nigeria, Tanzania,Ethiopia, Gana, Guinea,South Sudan, Algeria, Niger, Philippines,Indonesia,India, Azerbaijan and Kazakhstan.
We have rich experience for cold roll forming machine solution,competitive price and excellent service. We will continue to do our best to supply perfect products and service for customers. Invite you to contact us for further information.

Combined Stud and Track Roll Forming Machine

FAQ:
1. How long the machine could be made?- Normally speaking, light gauge steel frame machine could
be made without 45 working days. If you need machines in a hurry, we can make it for you
less than a month.
2. How to visit your company?
-a.Fly to Beijing airport:   By high speed train From Beijing Nan to Cangzhou Xi (1 hour),
then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5
hours), then we can
pick up you.
3. Do you have after sales support?
-Yes, we are happy to give advice and we also have skilled technicians available across the
world.We need your machines running in order to keep your business running.
