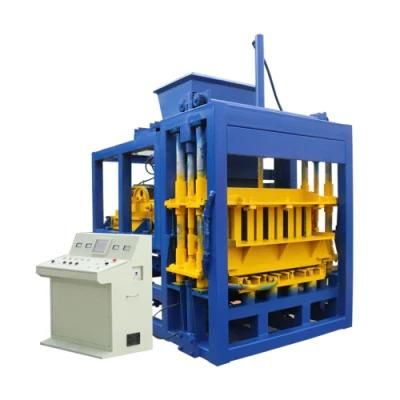

Block Making Machine Qt6-15 Block Gal Machine in Bangladesh

Qingdao HF Machinery Co., Ltd.
  • Certification：CE, ISO
  • Customized：Customized
  • Automatic Grade：Automatic
  • Type：Vibration Molding
  • Hydraulic Pressure：16MPa
  • Main Vibration：Platform Vibration

Base Info

  • Model NO.：QT6-15
  • Cycle Time：15-25 Seconds
  • Freqyency：2800-4200r,M
  • Total Power：26.5kw
  • Pallet Size：900X680mm
  • Weight：6200kg
  • Productivity 8′ Block：1100-1400PCS,Hour
  • Productivity Paver：2200-2700PCS,Hour
  • Plant Area：1500 Square Mrters
  • Transport Package：Container or Wooden Box
  • Specification：7100x1500x3000mm
  • Trademark：HF
  • Origin：China
  • HS Code：8474809090
  • Production Capacity：50sets,Month

Description

Main Technical SpecificationsOverall Dimension7100*1500*3000mmRated pressure16MPaMain vibration formPlatform vibrationCycle Time15-25 secondsVibrating Frequency4500-5100 rolls/minuteMotors Power31.25 KWPallet Size900*680(mm)Raw Materialscrushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes.Applied ProductsConcrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc.Applied Fieldswidely used in buildings, road pavings, squares, gardens, landscaping, city constructions, etc.Block Making Machine Qt6-15 Block Gal Machine in Bangladesh

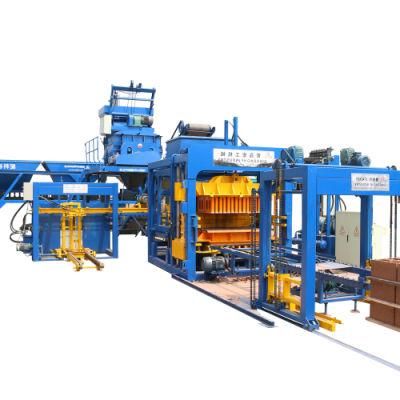

Product show

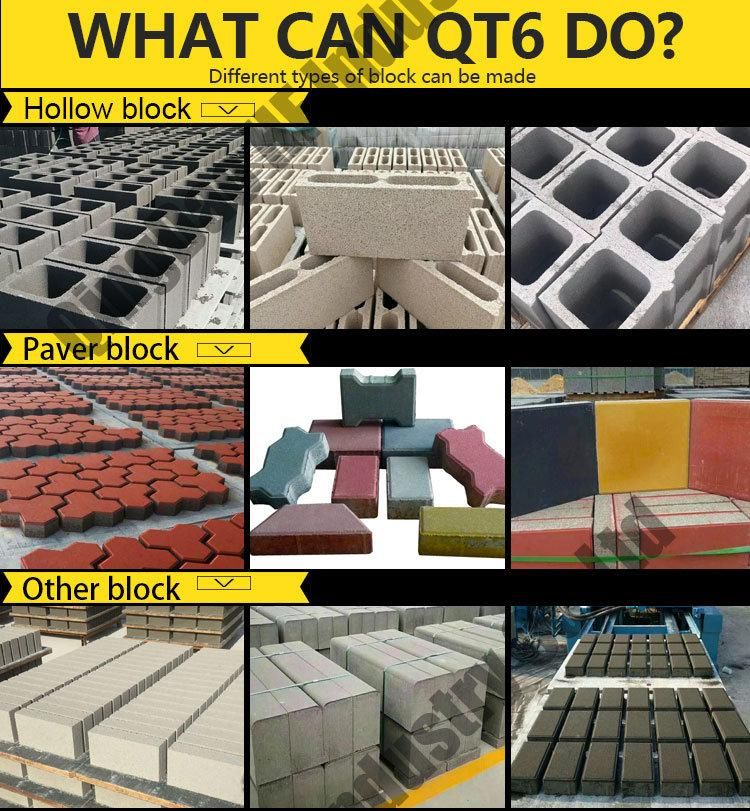

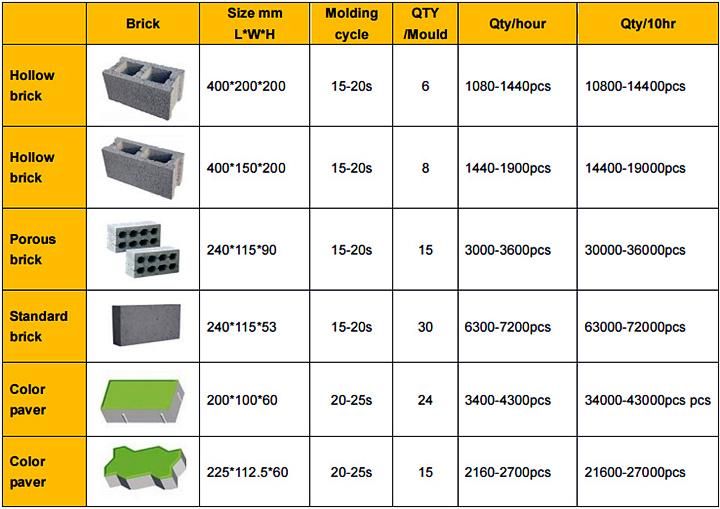

Block Sample List
The material can be flyash, slag, gangue or the others industrial waste, river sand, gravel, cement etc. Makes different sizes of hollow blocks, porous blocks, curbstone, pavement blocks.If add color machine, it can make layering blocks.

Block Making Machine Qt6-15 Block Gal Machine in Bangladesh

Block Making Machine Qt6-15 Block Gal Machine in Bangladesh
Block Making Machine Qt6-15 Block Gal Machine in Bangladesh
Block Making Machine Qt6-15 Block Gal Machine in Bangladesh
Block Making Machine Qt6-15 Block Gal Machine in Bangladesh
Block Making Machine Qt6-15 Block Gal Machine in Bangladesh

Block Making Machine Qt6-15 Block Gal Machine in Bangladesh


Thank you for visiting our website. If you are interested in our products please feel free to contact me.
