• Model NO.：NM890
• Usage：Roof, Wall
• Transmission Method：Electric
• Product Name：Corrugated Tile Roll Forming Machine Factory
• Raw Material：PPGI Sheet
• Feeding Width：1000mm
• Thickness Range：0.3-0.8mm
• Machine Power：5.5kw+3kw
• Forming Speed：10-15m,Min
• Roller Station：16-22 Groups
• Operation Type：Touching Screen PLC
• Machine Weight：About 5 Tons
• Transport Package：Plastic Film & Steel Wire Fixed
• Specification：6500mm*1500mm*1500mm(L*W*H)
• Trademark：NEXUS MACHINERY
• Origin：Hebei, China
• HS Code：8455221000
• Production Capacity：30 Sets , Months

Basic Info.

Model NO. NM890 Usage Roof, Wall Transmission Method Electric Product Name Corrugated Tile Roll Forming Machine Factory Raw Material PPGI Sheet Feeding Width 1000mm Thickness Range 0.3-0.8mm Machine Power 5.5kw+3kw Forming Speed 10-15m/Min Roller Station 16-22 Groups Operation Type Touching Screen PLC Machine Weight About 5 Tons Transport Package Plastic Film & Steel Wire Fixed Specification 6500mm*1500mm*1500mm(L*W*H) Trademark NEXUS MACHINERY Origin Hebei, China HS Code 8455221000 Production Capacity 30 Sets / Months

Product Description

Corrugated Tile Building Material Galvanized Steel Sheet Roof Roll Forming Machine with Factory Price

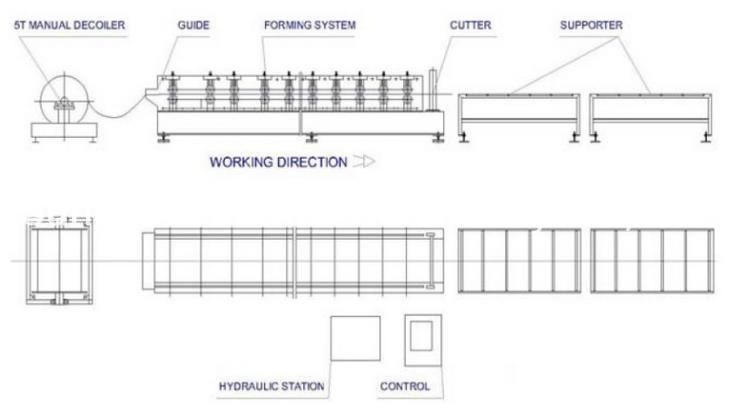

1. Processing flow diagram of Machine :

Decoiler→ Feeding →Roll forming →Measure length →Hydraulic cutting →Output table

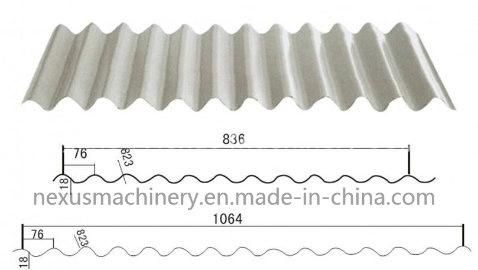

2. Profile Drawings for Reference:




3. Technical parameters for Corrugated Tile Building Material Galvanized Steel Sheet Roof Roll Forming Machine with Factory Price :



1	Suitable to process	Color steel plate
2	Width of the plate	1000mm
3	Thickness of the plate	0.3-0.8mm
4	De-coiler	Manual one, can load 5 tons raw material
5	Rollers for forming	14 rows
6	Diameter of the roller	76mm
7	Rolling material	Carbon Steel 45#
8	Main motor power	7.5kw
9	Productivity	15-20m/min
10	Cutting method	Hydraulic mould cutting
11	Material of the cutting blade	Cr12
12	Hydraulic cutting power	3kw
13	Processing precision	Within 1.00mm
14	Control system	Delta PLC control
15	Side panel of machine	18mm
16	Main structure of the machine	350 H steel
17	Weight	About 4.6T
18	Dimensions	7.5*1.6*1.2m
19	Voltage	380V 50Hz 3phases(changeable as needs)
20	Certificate	CE/ISO

4. Equipment list :


No.	Product Name	QTY
1	5T Manual decoiler	1
2	Corrugated Tile Building Material Galvanized Steel Sheet Roof Roll Forming Machine with Factory Price   (Includes Hydraulic cutting, PLC computer, Electrical cabinet, Hydraulic system)	1
3	Passive Output table	2
Sum		4

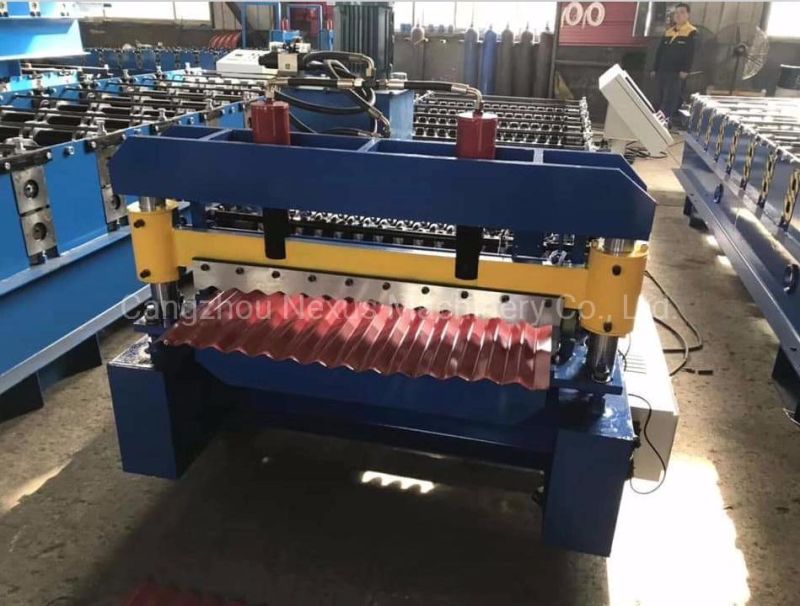

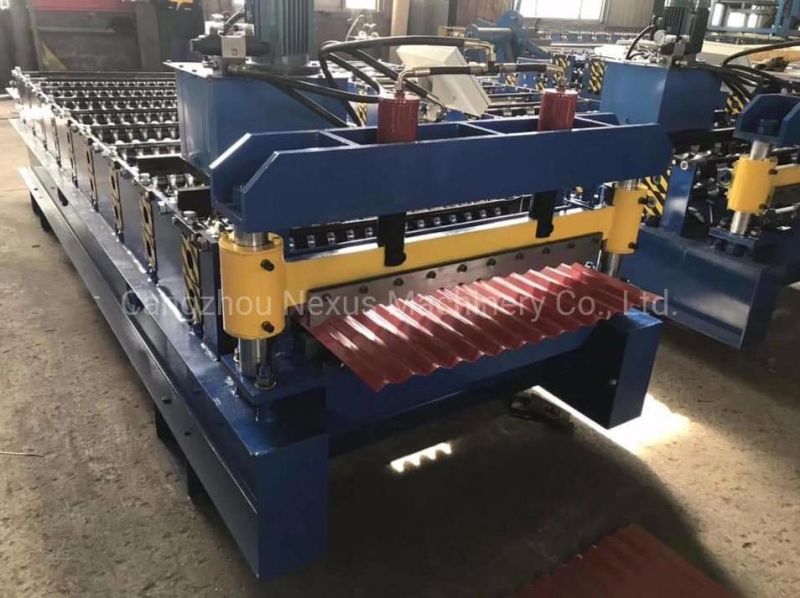

 Photos of Corrugated Tile Building Material Galvanized Steel Sheet Roof Roll Forming Machine with Factory Price for Reference:
