Hr7-10 Cheap Concrete Block Making Machine Auto Cement Brick Machine Clay Brick Moulding Machine
Linyi Duyue Import and Export Co., Ltd.- Certification：CE, ISO
- Customized：Customized
- Automatic Grade：Automatic
- Type：Hydraulic Shock
- Total Machine Power：18.5kw
- Moulding Cycle：7-10s
Base Info
- Model NO.：HR7-10
- Total Weight：2900 Kgs
- Shaping Way：Hydraulic
- Rate Voltage：380-440V as Requested
- Pressure：30-35MPa
- Color：Customized
- Transport Package：Container
- Specification：2400*1900*2380mm
- Trademark：DUYUE
- Origin：China
- HS Code：8474802000
- Production Capacity：100 Pieces,Year
Description
Basic Info.
Model NO. HR7-10 Total Weight 2900 Kgs Shaping Way Hydraulic Rate Voltage 380-440V as Requested Pressure 30-35MPa Color Customized Transport Package Container Specification 2400*1900*2380mm Trademark DUYUE Origin China HS Code 8474802000 Production Capacity 100 Pieces/YearProduct Description
Main features of of HR7-10 fully automatic hydraulic soil interlocking brick machine clay brick moulding machine
1.Four guidepost, the moulds rise/drop steadily.
2.Adopt the proportional valves, can adjust the pressure through PLC control system.
3. There are two oil cylinder on top mould and one oil cylinder under down mould, up and down press at same time, the brick is much stonger.
4.There is the touch screen attached in PLC control box, can adjust the pressure through the touch screen, it is so easy.
5.Adopt the plunger pump and proportional valves, the pressure is double.

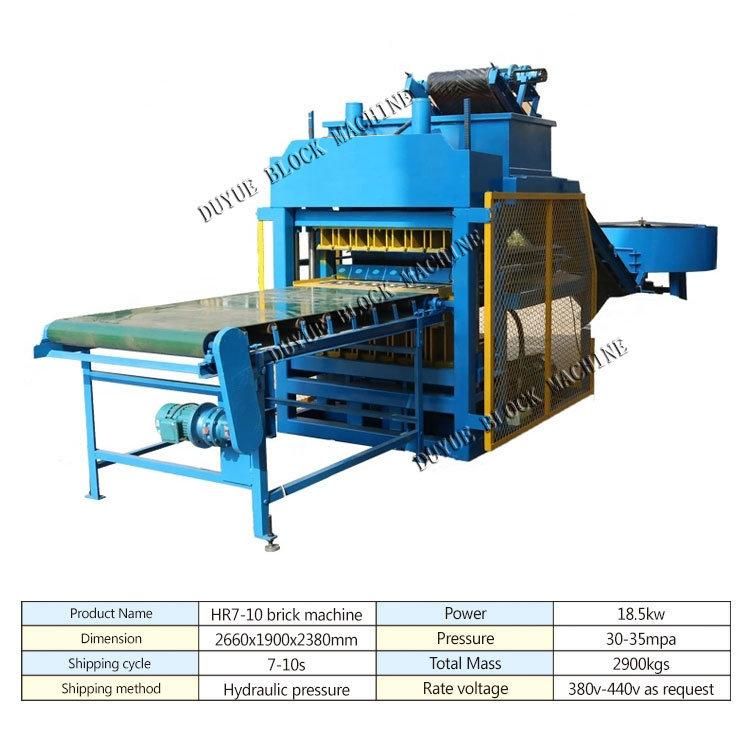

whole view of HR7-10 fully automatic hydraulic soil interlocking brick machine clay brick moulding machine
Machine Main technical parameters
Theoretical production capacity
