• Name：Metal Roof Ridge Cap Roll Forming Machine
• Raw Material：PPGI Sheet
• Thickness Range：0.3-0.8mm
• Machine Power：4kw+3kw
• Work Speed：8-10m,Min
• Shaft Material：45# High Grade Forge Steel ,Chrome Coated 0.05mm
• Machine Weight：About 3 Tons
• Operation Type：Touchig Screen
• Warranty：12 Months
• Afer-Sales Service：Engineer Is Availble to Overseas
• Transport Package：Plastic Film & Steel Wire Fixed
• Specification：3500mm*500mm*700mm(L*W*H)
• Trademark：NEXUS MACHINERY
• Origin：Cangzhou, China
• HS Code：8455221000
• Production Capacity：30 Sets , Months

Suitable raw materialPPGI/PPGL/GI/GL Steel CoilsThickness of coil sheet 0.3-0.8mmFeeding Coil width500mmEffective width312mmUnder frame 350H-beamDiameter of Soild shaft

70mm, high grade 45# steel, finish turning, cylindrical grinding,

with keyway

Roller

High grade 45# steel, processed by CNC lathe, Quenched

and tempered treatment, hard chrome coated 0.05-0.07mm

Thickness of middle plateGuide pillar memorial archwayForming stations16Drive typeBy chain(1.0 inch) link bearing model 6210Power of main motor5.5kw with Cycloidal reducer, Lichao, ShanghaiPower of pump station3kw, Lichao, ShanghaiForming speedAbout 15-20m/minHydraulic cuttingControlled by PLCPLC DELTA, TAIWAN / Mitsubishi, JapanMaterial of cutting bladeCr12Mov, quenching 58-62ºCFrequency converter

It has the advantage of slowing down before cutting,

to ensure the length accuracy(±1mm, far better than

industrial standard ±3mm).

SwitchCHNTTransducerSAJ

4. Equipment list :


No.	Product Name	QTY
1	5T Manual decoiler	1
2	Metal Roof Ridge Cap Roll Forming Machine Roof Ridge Tiles Building Materials Machinery  (Includes Hydraulic cutting, PLC computer, Electrical cabinet, Hydraulic system)	1
3	Passive Output table	2
Sum		4

5. Guarantee:

1) Engineer will give free training lessons to labors in buyer's factory.
2) The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD100 per day for engineer.
3) During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.
4). We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.

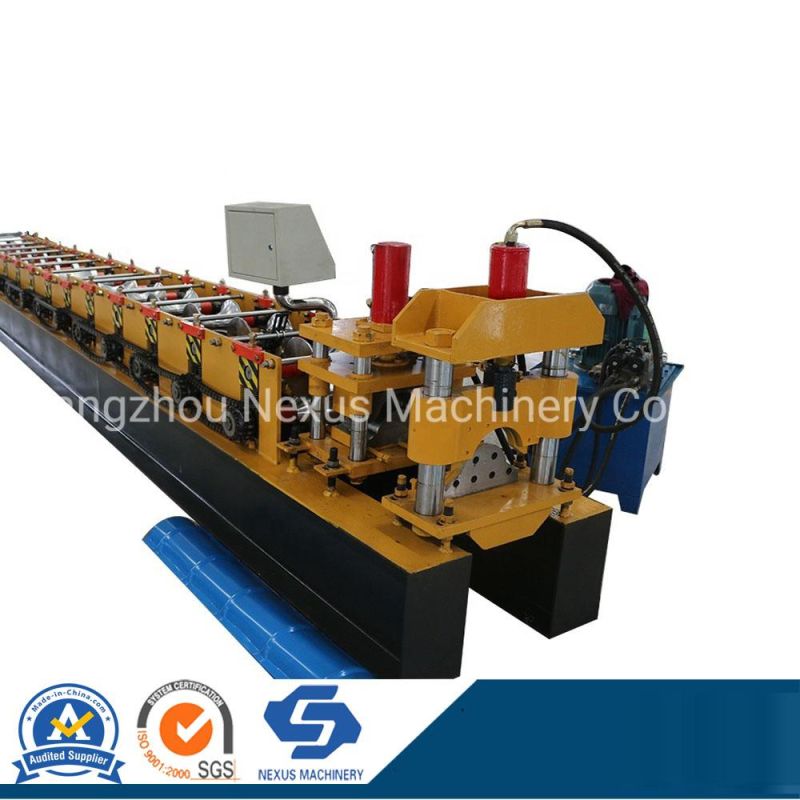

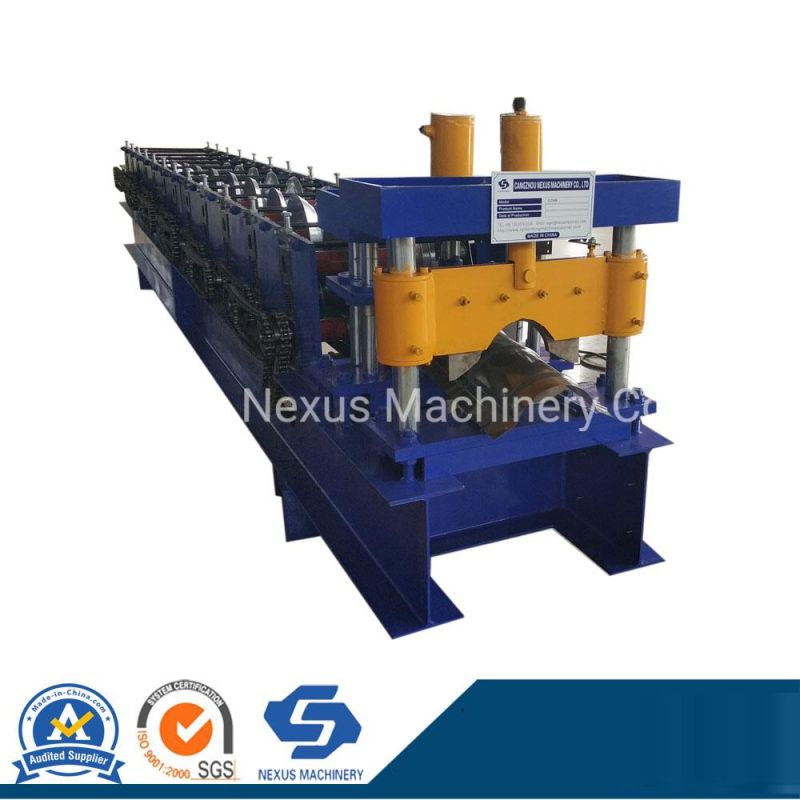

6. Photos of Metal Roof Ridge Cap Roll Forming Machine Roof Ridge Tiles Building Materials Machinery for Reference:








ABOUT US:

Cangzhou Nexus Machinery Co.,Ltd is experienced manufacturer & exporter of cold roll forming machine with ISO quality system.
Our R&D department is staffed with senior engineers who has more than 20 years experience in metal forming machine industry, so we are able to assist customers with professional designing and solution.
Our range of products: roof tile roll forming machine, cladding roll forming machine, metal decking roll forming machines, C/U/Z/W/L steel purlin roll forming machine etc. We also can supply steel coils, roof panels to suit diverse requirements of our global customers.
Today, we have exported our machines to America, Chile, Mexico, Bolivia, Brazil, Colombia, Argentina, Ecuador, Honduras, Fiji, Papua New Guinea, Kuwait, Syria, Oman, Saudi Arabia, U.A.E, Nigeria, Tanzania,Ethiopia, Gana, Guinea,South Sudan, Algeria, Niger, Philippines,Indonesia,India, Azerbaijan and Kazakhstan.
We have rich experience for cold roll forming machine solution,competitive price and excellent service. We will continue to do our best to supply perfect products and service for customers. Invite you to contact us for further information.

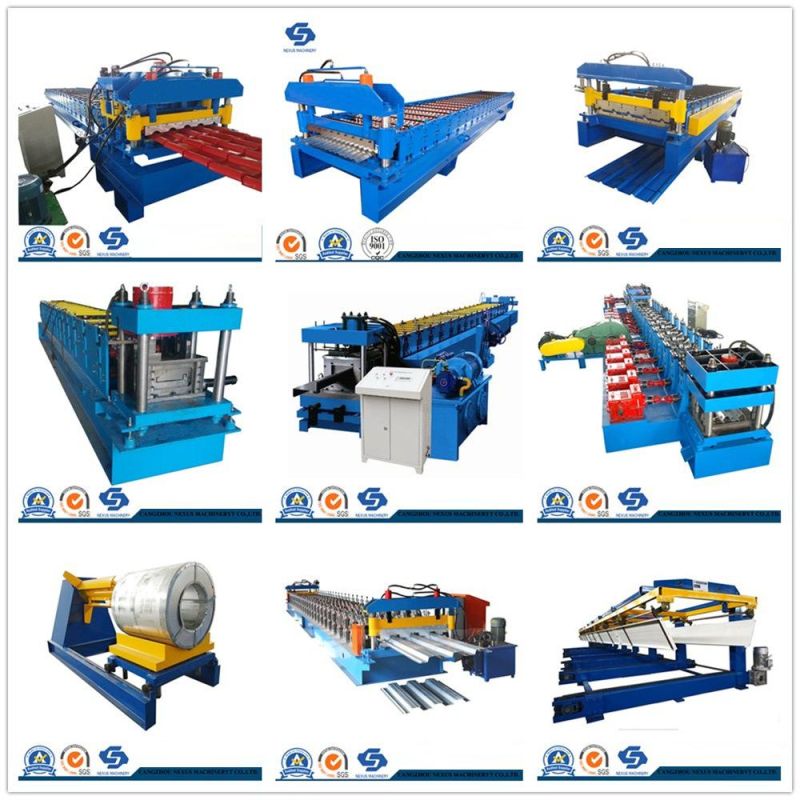

Hot-Sale Products you Might Be Interesting:

Packing:
1. One 20feet container for loading one set machine with mechanical decoiler.
2. Main machine body and decoiler is load naked (tighten to container with steel wire rope).
3. Spare parts and operating tools are loading in tooling box.
