• Model NO.：LZXA-CNC-1400
• Input Voltage：380V 50Hz
• Input Power：8kw
• Spindle Power：4.5kw
• Spindle Speed：0~18000r,Min
• X-Axes Travel：1400mm
• X-Speed：0~60m,Min
• Y-Axes Travel：450mm
• Y-Speed：0~30m,Min
• Z-Axes Travel：360mm
• Transport Package：Wooden Case
• Specification：11000*1800*2300mm
• Trademark：Yuefeng
• Origin：Jinan Shandong, China
• HS Code：8477800000
• Production Capacity：10 Sets,Month

Basic Info.

Model NO. LZXA-CNC-1400 Input Voltage 380V 50Hz Input Power 8kw Spindle Power 4.5kw Spindle Speed 0~18000r/Min X-Axes Travel 1400mm X-Speed 0~60m/Min Y-Axes Travel 450mm Y-Speed 0~30m/Min Z-Axes Travel 360mm Transport Package Wooden Case Specification 11000*1800*2300mm Trademark Yuefeng Origin Jinan Shandong, China HS Code 8477800000 Production Capacity 10 Sets/Month

Product Description

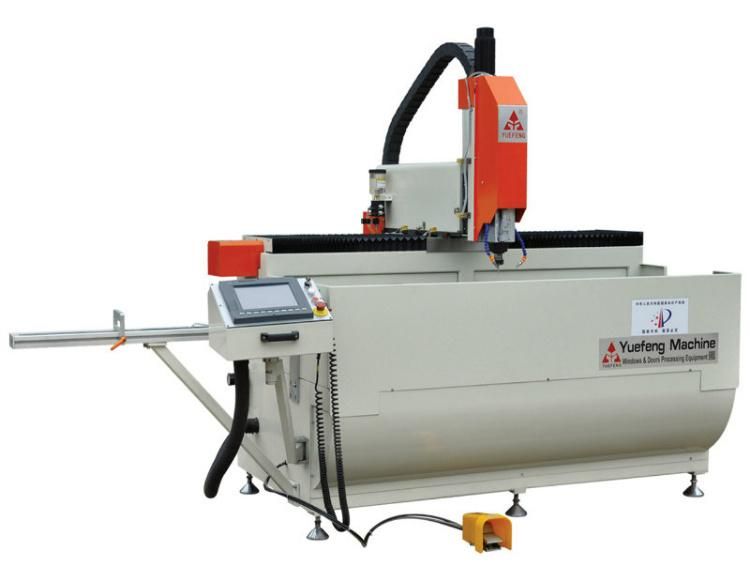

LZXA-CNC-1400  3 Axis CNC Milling And Drilling Machining Center
> This machine is mainly used for processing all kinds of mounting holes, lock holes, launders and other slots on various profiles. It can work on aluminum alloy, non-ferrous metal, orbit construct and pvc profiles, etc. Once clamping, multiple hole drilling and milling be finished, high efficiency.

> Linear guide kinematic pair, ball screw, gear rack and imported servo motor be adopted in this machine, results high stable and accuracy for locating and processing.

> The main shaft adopts HSD originally imported from Italy, results stable rotation, small noise and high efficiency.

> Order your own mill tools, the mill tools can be selected automatically during working.

Technical Parameter:

Model	LZXA-CNC-1400
Input voltage	380V 50Hz
Input power	8Kw
Spindle power	4.5Kw
Spindle speed	0~18000r/min
X-axes travel	1400mm
X-speed	0~60m/min
Y-axes travel	450mm
Y-speed	0~30m/min
Z-axes travel	360mm
Z-speed	0~30m/min
Process range	1400×120×120mm
Overall dimension	2300×1500×2000mm
